Запчасти Case IH RB454 (13.375) - 1.8M SINGLE CAM WIDE PICKUP, AUGER (13) - FEEDER

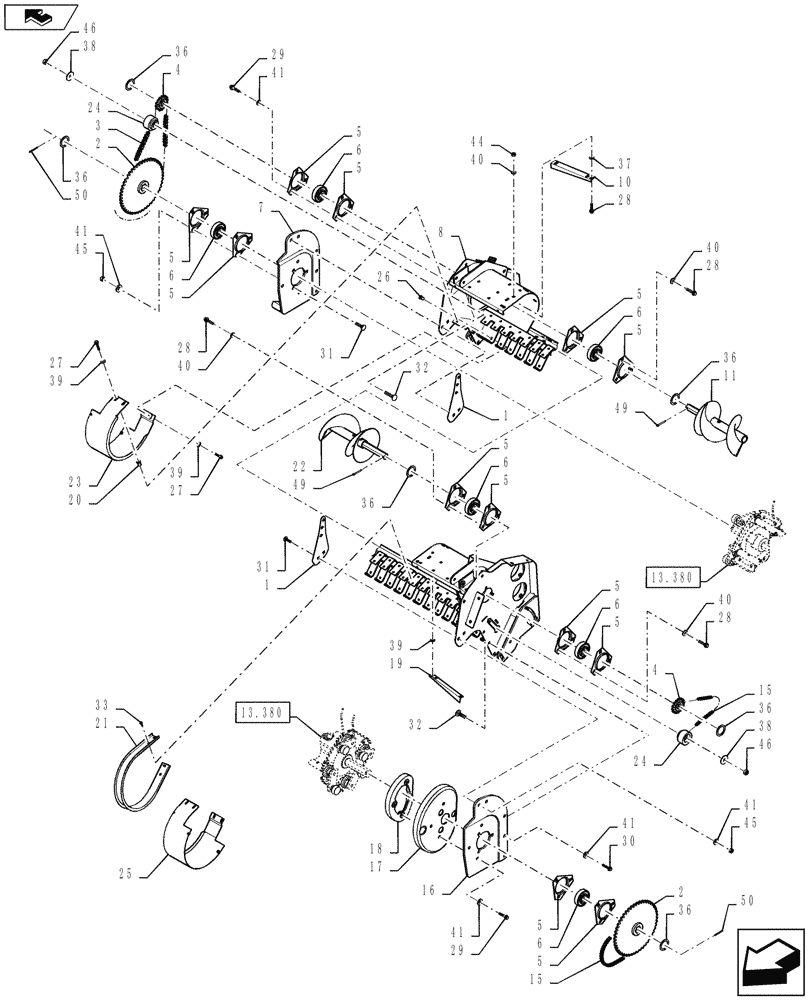

Схема запчастей Case IH RB454 - (13.375) - 1.8M SINGLE CAM WIDE PICKUP, AUGER (13) - FEEDER
13.380
17
5
6
49
40
5
39
28
32
5
15
5
30
26
6
29
6
50
40
24
37
28
23
50
36
5
24
46
4
1
36
27
46
6
38
5
39
31
1
36
5
45
27
29
41
3
41
5
44
11
7
20
5
41
38
25
6
home
31
41
19
16
5
36
32
36
33
10
2
5
8
28
39
5
45
36
28
15
40
2
41
6
18
22
40
4
49
21
13.380

Артикул

Название

Примечание

Количество

1

47361794

MOUNT

, Start Serial: YCN174406

2шт.

2

86624713

SPROCKET

48T

2шт.

MAINTENANCE PART

1шт.

3

9849661

CHAIN

Roller, #50, 5/8"-pitch, 76 Pitches, Includes Ref. 51

1шт.

MAINTENANCE PART

1шт.

4

87026284

SPROCKET

13T

2шт.

MAINTENANCE PART

1шт.

5

86620026

FLANGED BEARING

12шт.

MAINTENANCE PART

1шт.

6

86594423

BEARING,28.6mm Hex x 72mm OD x 25mm W

6шт.

MAINTENANCE PART

1шт.

7

87054955

SUPPORT

RH

1шт.

8

87042285

PICK-UP

Frame

1шт.

10

86633239

ANGLE

RH

1шт.

11

87040395

AUGER

RH

1шт.

15

86552479

CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm

Roller, Standard Duty, Chrome, RC50, 100 Pitches, Includes: Connector Link 86537460

1шт.

MAINTENANCE PART

1шт.

16

87054954

SUPPORT

LH

1шт.

17

87032200

CAM

LH, Outer

1шт.

MAINTENANCE PART

1шт.

18

87032003

CAM

LH, Inner

1шт.

MAINTENANCE PART

1шт.

19

86633238

ANGLE

LH

1шт.

20

86610198

INSERT,M6 x 1

Threaded, M6

4шт.

21

86643381

GUARD

End, Use (5) Guards On Each End of Pickup.

10шт.

MAINTENANCE PART

1шт.

21

87055363

GUARD ASSY.

17шт.

MAINTENANCE PART

1шт.

22

87040398

AUGER

LH

1шт.

23

86626559

GUARD

RH

1шт.

MAINTENANCE PART

1шт.

24

86613200

IDLER,89mm OD x 47.7mm W

Eccentric, Nylon

1шт.

MAINTENANCE PART

1шт.

25

86625888

GUARD

LH

1шт.

MAINTENANCE PART

1шт.

26

86610199

INSERT

NUT Threaded, M6

4шт.

27

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

8шт.

28

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

6шт.

29

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

15шт.

30

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

31

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

10шт.

32

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

1шт.

33

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

100шт.

MAINTENANCE PART

1шт.

36

87022926

WASHER,35.05mm ID x 48.01mm OD x 2.14mm Thk

.075" Thick

1шт.

37

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

38

495-11066

WASHER,5/8", SAE

1шт.

39

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

31шт.

44

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

18шт.

45

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

12шт.

46

832-46416

NUT,M16 x 2, Cl 8

1шт.

49

164086

COTTER PIN

2шт.

50

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.

52

42472

CONNECTING LINK

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

Выбрано товаров: 58
