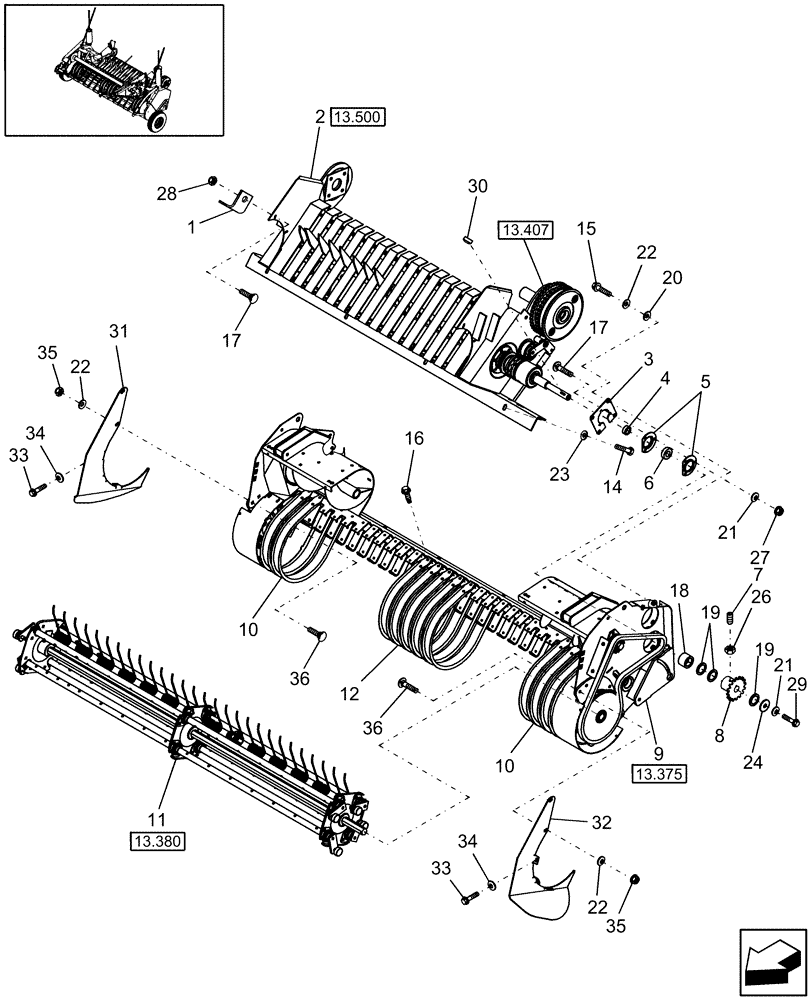

Запчасти Case IH RB454 (13.305) - 1.8M SINGLE CAM WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
66463
BRACKET
4шт.
2
0C
ORDER COMPONENTS
Stuffer Feeder
1шт.
3
86597579
PLATE
1шт.
4
455102R21
COLLAR
Locking, Includes: Set Screw
1шт.
5
86603075
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
2шт.
MAINTENANCE PART
1шт.
6
214366C91
BALL BEARING,25.40mm ID x 52mm OD
Ball
1шт.
MAINTENANCE PART
1шт.
7
300483
SET SCREW,M10 x 25mm
2шт.
Prior to P.I.N. Y8N038893 for RB564 Only
1шт.
8
87397998
SPROCKET
17T, RC 50, Standard
1шт.
Prior to P.I.N. Y8N038893 for RB564 Only
1шт.
MAINTENANCE PART
1шт.
8
87055082
SPROCKET
18T, RC 50, Optional
1шт.
Increases Pickup Reel Speed
1шт.
MAINTENANCE PART
1шт.
8
87602188
SPROCKET
17T, No Set Screw Required
1шт.
P.I.N. & After Y8N038894 for RB564 Only
1шт.
MAINTENANCE PART
1шт.
9
0C
ORDER COMPONENTS
1.8M Single Cam Wide Pickup
1шт.
10
86643381
GUARD
7шт.
MAINTENANCE PART
1шт.
11
0C
ORDER COMPONENTS
1.8M Single Cam Spider
1шт.
12
87055363
GUARD ASSY.
17шт.
14
614-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
8шт.
15
844-10030
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
6шт.
16
86545825
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"
28шт.
MAINTENANCE PART
1шт.
17
811-8020
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
11шт.
18
87654833
SPACER
1шт.
19
245531
WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk
1шт.
20
495-21044
WASHER,3/8"
6шт.
23
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
8шт.
24
58225
WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk
1шт.
26
825-1410
NUT,M10, Cl 8
2шт.
Prior to P.I.N. Y8N038893 for RB564 Only
1шт.
27
825-2408
FLANGE NUT,M8 x 1.25, Flg, Cl 8
3шт.
28
832-46408
NUT,M8 x 1.25, Cl 8
23шт.
30
126-24
WOODRUFF KEY,#15, 1/4" x 1"
1шт.
31
84324676
GUARD
RH
1шт.
Optional for Improved Feeding
1шт.
32
87053734
GUARD
LH
1шт.
Optional for Improved Feeding
1шт.
33
844-6020
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
6шт.
34
322357
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
6шт.
