Запчасти Case IH RB454 (12.18) - MAIN FRAME & DRIVE, LH, ROTOR (12) - MAIN FRAME

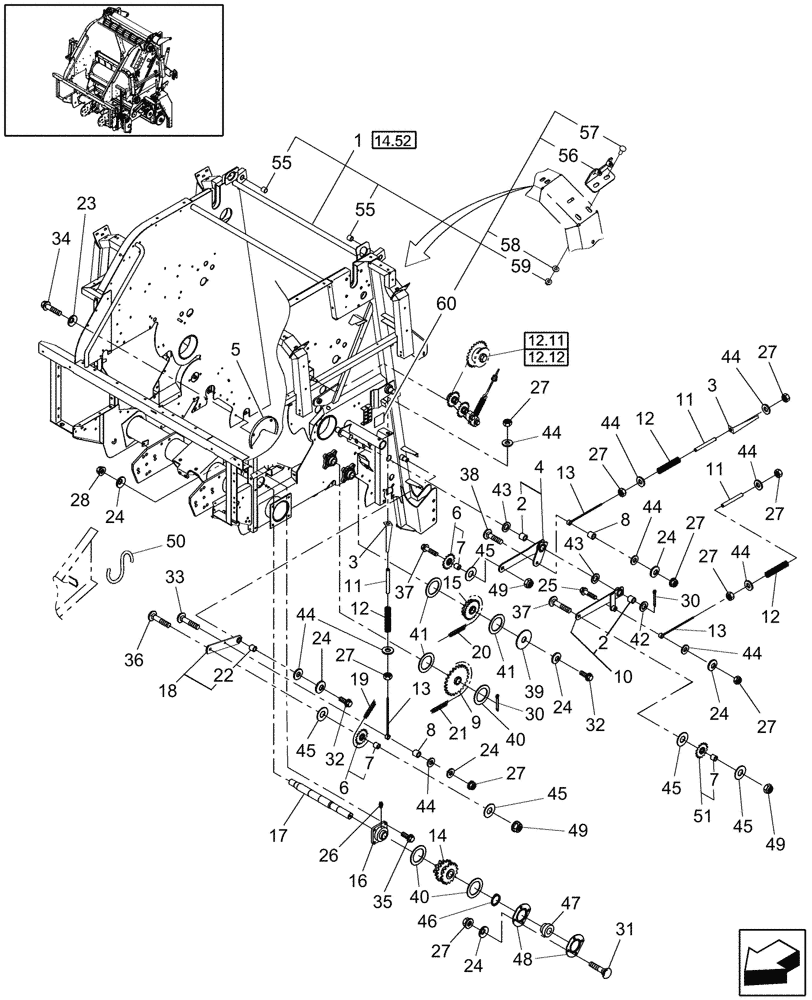

Схема запчастей Case IH RB454 - (12.18) - MAIN FRAME & DRIVE, LH, ROTOR (12) - MAIN FRAME
14.52
41
48
42
16
15
13
23
13
34
36
7
27
2
13
11
6
8
19
35
45
43
55
44
49
32
4
45
37
30
44
27
39
40
14
3
27
24
27
32
24
44
44
27
50
24
26
33
55
46
38
12
12
27
24
24
60
17
41
27
56
2
24
18
44
12
57
45
25
40
47
24
51
44
20
44
58
8
45
7
44
21
10
45
27
49
1
31
5
22
27
44
27
9
7
59
6
43
11
28
37
3
30
49
11
12.11
12.12

Артикул

Название

Примечание

Количество

1

87619672

FRAME

Main, North America, Twine/Net, Includes: Ref. 54

1шт.

1

87630476

FRAME

Main, Europe & R.O.W., Twine

1шт.

1

87619679

FRAME

Main, Europe & R.O.W., Twine/Net

1шт.

1

87619676

FRAME

Main, Europe & R.O.W., Rotor

1шт.

2

27639

BUSHING,31.83mm ID x 38.19mm OD x 25.4mm L

2шт.

MAINTENANCE PART

1шт.

3

86643093

INDICATOR

2шт.

4

86632214

ARM

Inner

1шт.

5

87040530

DISC

2шт.

6

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

MAINTENANCE PART

1шт.

6

66614

SPROCKET,RC80, 13T

13T, Steel, Service Only

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

MAINTENANCE PART

1шт.

7

144819C91

BEARING

2шт.

MAINTENANCE PART

1шт.

8

86637291

SPACER

Plated

3шт.

9

86610108

SPROCKET

25 T, RC 80

1шт.

MAINTENANCE PART

1шт.

10

86632217

LIFT ARM

Outer

1шт.

11

86637258

TUBE,19.05 mm OD x 228.60 mm L

3шт.

12

86618710

SPRING,1-3/8" OD x 8-5/8" L

Compression, 8-5/8" L

3шт.

13

86637254

ROD

3шт.

14

86610107

SPROCKET

Triple, (1)13T, (1)14T, (1)18T, RC 80

1шт.

MAINTENANCE PART

1шт.

15

86610110

SPROCKET

Double, (1)20T, (1)17T, RC 80

1шт.

MAINTENANCE PART

1шт.

16

86609558

BEARING ASSY,45mm ID

1шт.

MAINTENANCE PART

1шт.

17

86629575

SHAFT

1шт.

18

86611436

ARM

1шт.

19

86549269

CHAIN,RC80, 64 Links x 25.4mm = 1625.6mm

Roller, RC 80, 64 Pitches, Includes: Ref. 52

1шт.

MAINTENANCE PART

1шт.

20

86562829

CHAIN,100, 67 Links x 31.75mm = 2127.25mm

Roller, RC 100, 67 Pitches, Includes: Ref. 53 & 54

1шт.

MAINTENANCE PART

1шт.

21

87021804

CHAIN,Roller, 68 Links x 25.4mm = 1727.2mm

Roller, RC 80, 68 Pitches, Includes: Ref. 52

1шт.

MAINTENANCE PART

1шт.

22

84019797

SLEEVE,25mm ID x 28mm OD x 25mm L

1шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

13шт.

25

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

27

825-1412

NUT,M12, Cl 8

17шт.

28

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

30

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

31

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

32

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

2шт.

33

80043480

BOLT

Rnd Hd Square Neck, M8.8 Course Thd

1шт.

34

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

35

844-12045

BOLT,Hvy Hex, M12 x 45mm, Cl 8.8

4шт.

36

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

1шт.

37

811-16060

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 60mm, Cl 8.8

3шт.

38

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

1шт.

39

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

Hardened, 1/2"

1шт.

40

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

Special

1шт.

41

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

1шт.

42

27696

WASHER,1.281" ID x 2" OD x .060" Thk

Special

1шт.

43

142656

WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk

1-1/4"

1шт.

44

495-21056

WASHER,1/2"

12шт.

45

495-11066

WASHER,5/8", SAE

1шт.

46

100-16175

SNAP RING,#175, Ext

1шт.

47

412441

ROLLER BEARING,40mm ID x 80mm OD x 21mm W, Round Bore

& Collar

1шт.

MAINTENANCE PART

1шт.

48

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

Bearing

2шт.

MAINTENANCE PART

1шт.

49

832-46416

NUT,M16 x 2, Cl 8

3шт.

50

115680

HOOK

S

1шт.

51

87017554

DRIVEN SPROCKET

Includes: Bearing 144819C91

1шт.

MAINTENANCE PART

1шт.

52

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

53

86977432

LINK,31.75mm Pitch

Offset

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

54

86595263

LINK,31.75mm Pitch

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

55

26306

DRIVE BUSHING,25.47mm ID x 31.82mm OD x 31.8mm L

2шт.

MAINTENANCE PART

1шт.

56

87037410

HINGE

Lower, Square-Shaped

4шт.

57

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

58

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

59

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

60

86631518

DANGER DECAL

English

2шт.

60

86632801

DECAL

DANGER, French

2шт.

Выбрано товаров: 87
