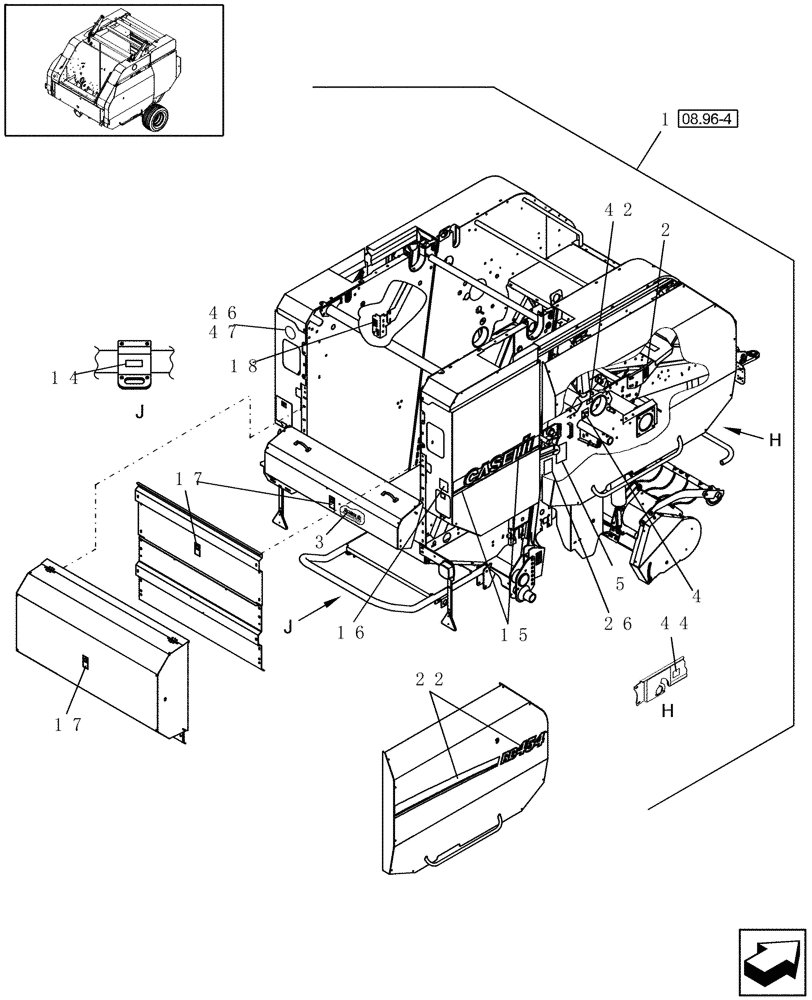

Запчасти Case IH RB454 (08.96[3]) - DECALS, RH, EUROPE & R.O.W. (08) - SHEET METAL/DECALS

1

87609631

DECAL KIT

Includes: Decals Shown in Fig. 08.96-3, 08.96-4 & Decal Placement Guide.

1шт.

2

86642355

DECAL

Oil Level

1шт.

3

86626471

EMBLEM

CIH Logo

1шт.

4

718861

DECAL

Attention

1шт.

5

9846526

DECAL

Tailgate

4шт.

8

NS

NOT SERVICED

Model Plate

1шт.

9

NS

NOT SERVICED

Model Plate

1шт.

10

NS

NOT SERVICED

Factory Plate

1шт.

11

NS

NOT SERVICED

Plate

1шт.

13

84078384

DECAL

2шт.

14

84100296

DECAL

3шт.

15

87662329

DECAL

RH Stripe, CASE IH

1шт.

16

87022793

DECAL

1шт.

17

86516139

CAUTION DECAL

1шт.

18

9826684

DECAL

Locking

1шт.

22

87618575

DECAL

RH, Front Stripe, RB454

1шт.

23

86636717

DECAL

Circle

2шт.

25

84004736

DANGER DECAL

2шт.

26

84004734

WARNING DECAL

2шт.

27

86979306

EMBLEM

CIH Logo

1шт.

28

730650

DECAL

540 RPM

1шт.

29

86518436

WARNING DECAL

1шт.

30

86642359

DANGER DECAL

Electric Risk

1шт.

31

84014114

CAUTION DECAL

1шт.

32

86643977

ANTI-SKID STRIP,4” x 40”, Black

Safety Step, 4" x 40"

2шт.

33

86642358

DECAL

Cut

1шт.

34

86619208

DECAL

Latch Closed

1шт.

35

86619207

DECAL

Latch Open

1шт.

36

86619205

DECAL

Bale Size

1шт.

37

86978512

DECAL

Bale Stop

1шт.

38

449973

DECAL

2шт.

39

86642356

DECAL

Net Routing

1шт.

40

86619595

DECAL

Stripe, White & Black

2шт.

41

425520

RIVET,Pop, 3.96mm OD x 10.4mm L

Blind, 4 x 10

6шт.

42

165109

DECAL

Lube Fitting

7шт.

44

87037743

WARNING DECAL

Net Knife

1шт.

46

84039535

DECAL

30

1шт.

Used on Units with High Hitch - Without Brakes

1шт.

47

84012939

DECAL

40, Germany Only

1шт.

Used on Units with High Hitch - With Brakes

1шт.

48

87375079

DECAL

40, France Only

1шт.
