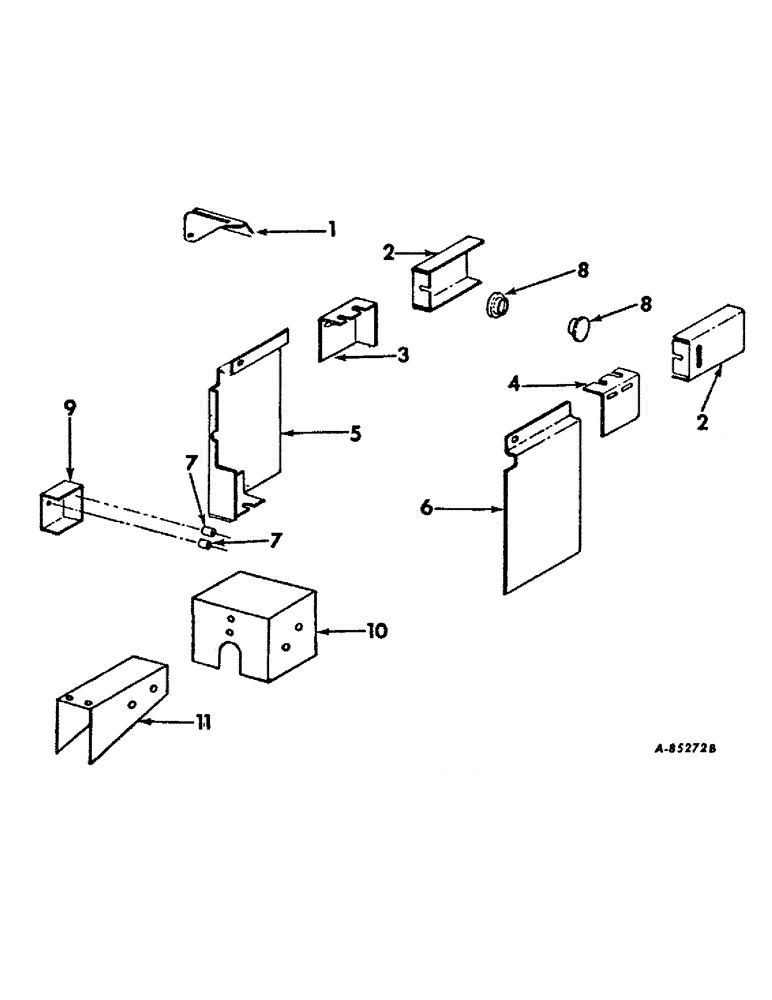

Запчасти Case IH 241 (A-41) - SAFETY SHIELD ATTACHMENT, EXPORT ONLY, NOT AVAILABLE FOR UNITED STATES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

213626C2

SHIELD

twine knife

1шт.

2

213640C1

SHIELD

take-up roll, serial No. 7810 and below

2шт.

3

213631C2

SHIELD

rear RH lower roll

1шт.

4

213630C2

SHIELD

rear LH lower roll

1шт.

5

213629C2

SHIELD

lower right center roll

1шт.

172449

SCREW,Hex, 5/8" - 18 x 1/2"

5/16 x 1/2 h/hd tap

1шт.

6

213628C2

SHIELD

lower left center roll

1шт.

172449

SCREW,Hex, 5/8" - 18 x 1/2"

5/16 x 1/2 h/hd tap

1шт.

7

875483R1

SPACER

press roll shield mount

2шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 type 1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

8

453771R1

PLUG

CAP, hub

2шт.

9

213632C2

SHIELD

press roll shield mount

1шт.

10

213878C1

SHIELD

ASSY, clutch front

1шт.

11

214389C1

SHIELD

U-joint

1шт.
