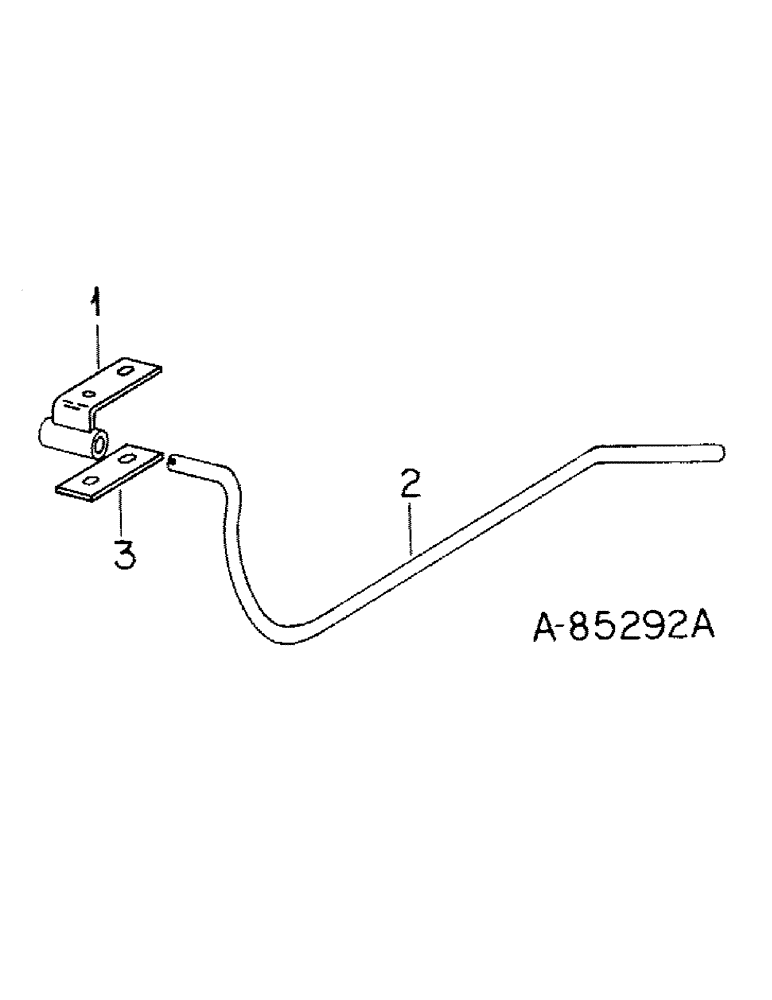

Запчасти Case IH 241 (A-43) - STOVER PICKUP COVER ATTACHMENT (88) - ACCESSORIES

1

219126C1

SUPPORT ASSY.

SUPPORT ASSY, pickup cover

8шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 type 1

16шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad P/T lock type 5

16шт.

2

213680C1

SUPPORT

pickup cover

8шт.

120396

WASHER

.531 x 1.062 x .074

8шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

8шт.

3

219128C1

BAR

pickup cover mounting

8шт.
