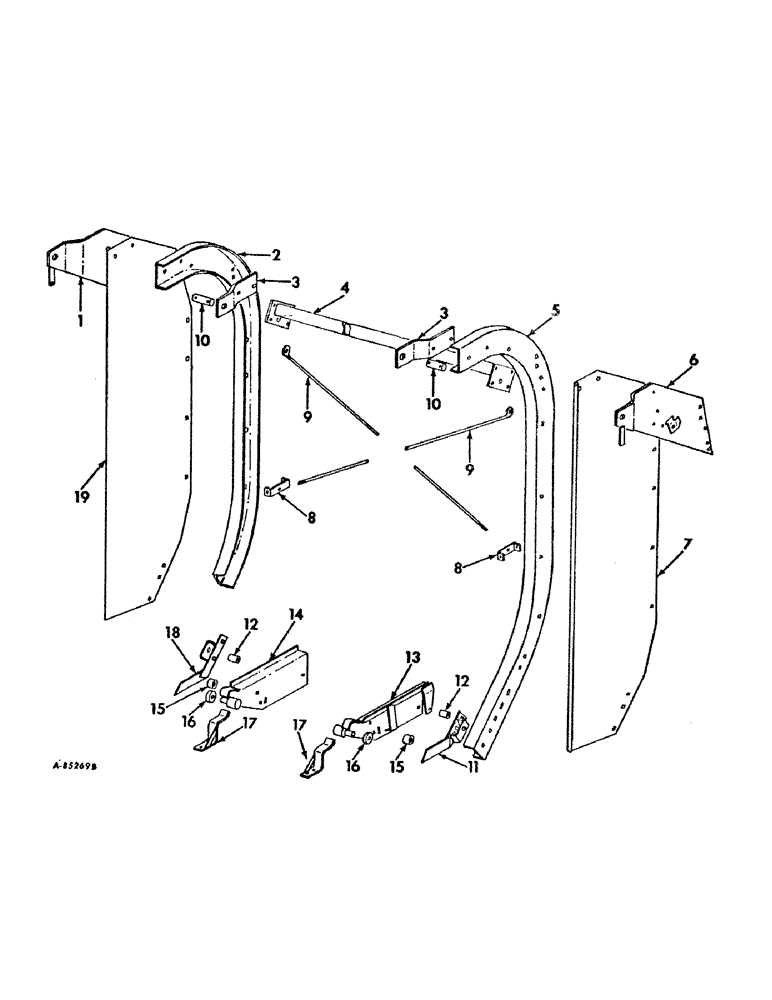

Запчасти Case IH 241 (A-07) - REAR GATE ASSEMBLY (70) - EJECTION

1

208312C2

ANCHOR

ASSY, hyd cyl RH

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

6шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

6шт.

2

208419C2

CHANNEL

rear gate RH

1шт.

3

208420C1

STRAP

rear gate

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

4шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 PHC P/T lock type 5

4шт.

4

208309C1

ANCHOR

ASSY, cross beam

1шт.

5

208418C2

CHANNEL

rear gate LH

1шт.

6

208311C2

ANCHOR

ASSY, hyd cyl LH

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

6шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

6шт.

7

208315C2

COVER

rear gate LH

1шт.

8

208317C1

CHANNEL

frame adjusting rod, serial No. 7810 and below

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex hd mach

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad. hex lock

4шт.

9

208318C1

BOLT

EYEBOLT, pivot support, serial No. 7810 and below

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad hex. lock

4шт.

10

208386C1

PIN

rear gate pivot

2шт.

608700R1

WASHER

1.281 x 2.000 x .054

4шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

11

214322C1

STOP

ASSY, rear gate pivot LH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

12

208665C1

SPACER

arm pivot

2шт.

13

208422C2

PLATE

ASSY, lower roller pivot LH

1шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

1шт.

14

208427C2

PLATE

ASSY, lower roller pivot RH

1шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

1шт.

15

38291H

SPACER

rear gate stop, serial No. 7810 and below

2шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

453231R1

WASHER

13/32 x 1-3/4 x 11 ga

4шт.

16

11457RA

RING

ROLLER, cam

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

21220R1

WASHER

29/32 x 1-1/4 x 11 ga znd

4шт.

17

214344C1

ANGLE

rear gate guide, left

1шт.

17

214345C1

ANGLE

rear gate guide, right

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

6шт.

18

214327C1

STOP

ASSY, rear gate pivot RH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

19

208316C2

COVER

rear gate RH

1шт.
