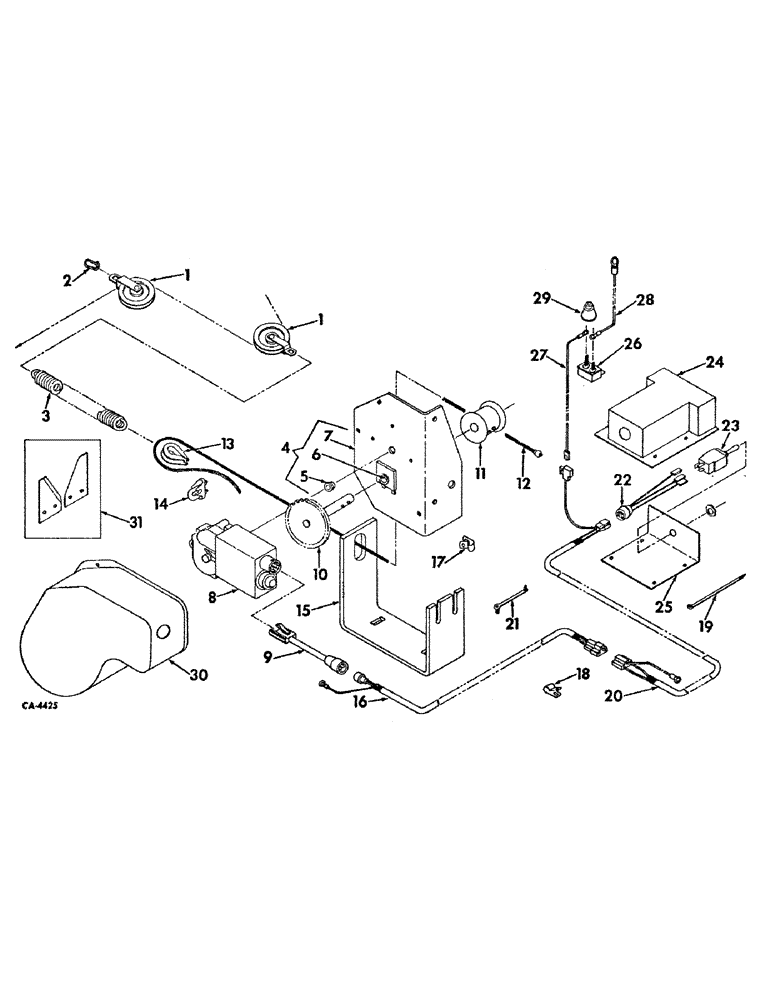

Запчасти Case IH 241 (A-42) - REMOTE ELECTRIC TWINE SYSTEM ATTACHMENT (68) - TYING/WRAPPING

1

480476R1

PULLEY

ASSY, twine arm rope

2шт.

2

472695R1

LINK

chain repair

1шт.

3

13135S

SPRING

1шт.

4

56456C1

BRACKET

SUPPORT ASSY, bushing

1шт.

5

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

motor shaft

1шт.

6

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

gear shaft

2шт.

7

56457C1

BRACKET

ASSY, motor

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

8

126573C1

MOTOR, ELECTRIC

MOTOR ASSY, electric

1шт.

20803R1

WASHER

.406 x 1.000 x .105

3шт.

548645R1

BOLT,1/4" - 20 x 7/8", Cl 5

1/4 x 7/8 pln N/P type 5

3шт.

9

126569C1

CABLE

motor junction

1шт.

10

56640C1

GEAR

ASSY, 64 teeth

1шт.

11

213638C1

PULLEY

pickup motor

1шт.

19506R1

PIN,3/16" x 2", Coiled

1шт.

12

204685C1

CABLE

ASSY

1шт.

13

480473R1

CUP

THIMBLE, 1/8 cable

1шт.

14

480472R1

CLIP

1/8 cable

1шт.

453231R1

WASHER

.406 x 1.750 x .105 pln

1шт.

15

213637C1

CHANNEL

motor support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

16

55854C1

HARNESS

ASSY

1шт.

17

98959R1

CLAMP

closed

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga C-Z

1шт.

18

299407C1

CLAMP

closed

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

19

702093C1

CABLE TIE

STRAP, harness

2шт.

20

55861C1

HARNESS

wiring

1шт.

21

55863C1

CLAMP

plastic

4шт.

22

55862C1

ELECTRICAL WIRE

WIRE ASSY

1шт.

23

529933R91

SWITCH

ASSY

1шт.

24

55857C1

BOX

switch

1шт.

25

55858C1

COVER

switch box

1шт.

21531R1

SCREW

1/4 x 1-3/4 znp p/hds mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga C-Z

4шт.

26

403069R1

CIRCUIT-BREAKER,30A

BREAKER, 30 AMP circuit

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

27

55855C1

ELECTRICAL WIRE

WIRE ASSY, battery breaker

1шт.

28

55856C1

ELECTRICAL WIRE

WIRE ASSY, breaker switch

1шт.

29

251553R1

BOOT

NIPPLE, circuit breaker

1шт.

30

55852C1

SHIELD

motor

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

3шт.

31

214492C91

KNIFE

PACKAGE, knife

1шт.
