Запчасти Case IH 241 (A-30) - TWINE TENSION PACKAGE, SERIAL NO. 7810 AND BELOW (68) - TYING/WRAPPING

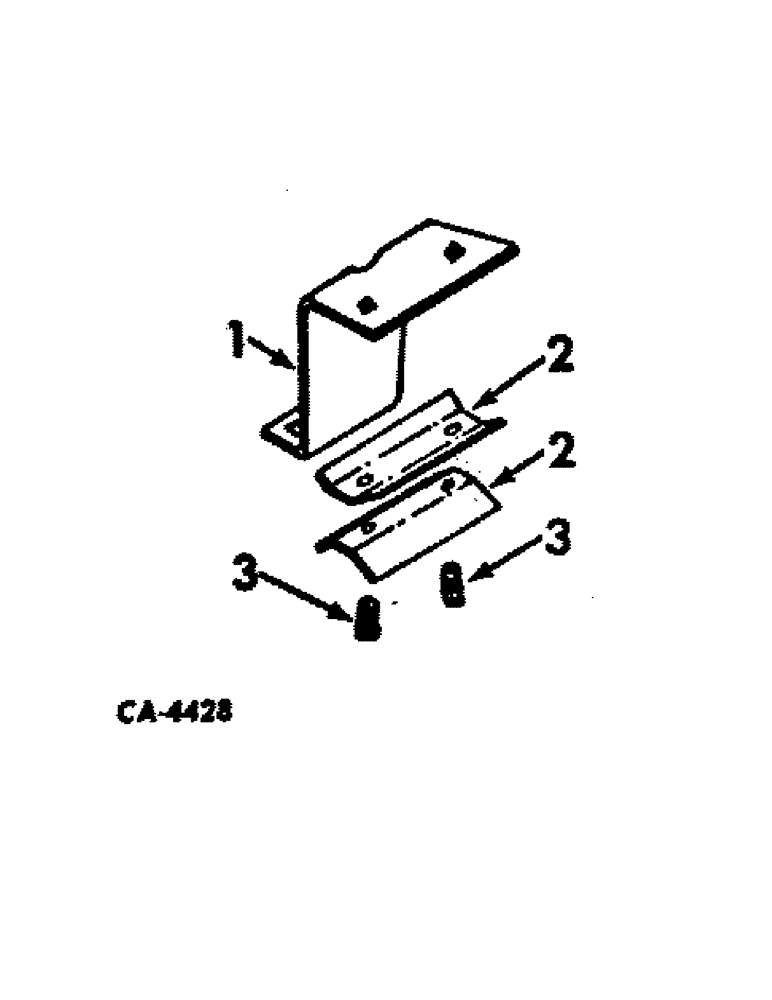

Схема запчастей Case IH 241 - (A-30) - TWINE TENSION PACKAGE, SERIAL NO. 7810 AND BELOW (68) - TYING/WRAPPING

Артикул

Название

Примечание

Количество

204804C91

PACKAGE

TWINE TENSION SERVICE PACKAGE, consists of

1шт.

1

214432C1

SUPPORT ASSY.

SUPPORT, twine tension

1шт.

2

662380R1

GUIDE

PLATE, twine tension

2шт.

3

2064A

SPRING

twine tension

2шт.

18634R1

BOLT

1/4 x 2-3/4 crg type 1

2шт.

126177

WING NUT

NUT, 1/4 wing

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

Выбрано товаров: 9
