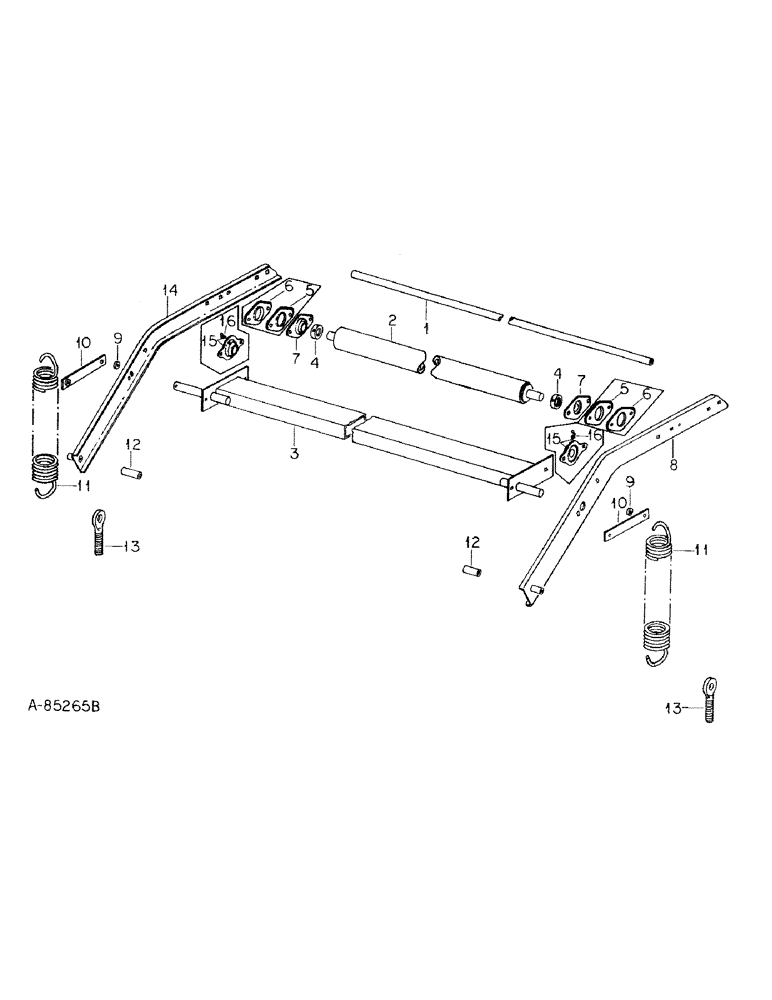

Запчасти Case IH 241 (A-28) - BELT TIGHTENER (62) - PRESSING - BALE FORMATION

1

208602C2

SPACER

ROD, tie bar

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

208597C2

TUBE

ASSY, belt tightener

2шт.

591715R1

WASHER

1.051 x 1.500 x .054 (or as required)

6шт.

3

208593C1

TUBE

ASSY, tie

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad hex. lock

4шт.

4

218423C1

COLLAR

W/SET SCREW, brg locking

4шт.

5

208304C1

CASE

FLANGE, flush mount, outer, serial No. 7810 and below

4шт.

6

208303C1

FLANGED BEARING,1.915" ID x 2.7" OD x 0.32"

FLANGE, flush mount, inner, serial No. 7810 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

8шт.

19575R1

BOLT, 5/16 x 1-1/8 hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

12шт.

7

214490C91

BALL BEARING,25.4mm ID

BEARING ASSY, roller, replaces 214366C91

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

8

208588C2

FRAME

CHANNEL ASSY, bale tightener LH

1шт.

9

455150R1

WASHER

SPACER

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

4шт.

10

208603C1

STOP

ASSY, belt tightener arm

2шт.

11

488238R2

SPRING

belt tightener

2шт.

53718V

WASHER

1-9/32 x 2 x 4 ga

2шт.

137308

DRIVEN PULLEY,1/4" x 2 1/2"

Split (Cotter), 1/4" x 2 1/2"

2шт.

12

208592C2

SPACER, channel pivot

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

131000

WASHER

.812 x 2.00 x .122

4шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga znd

2шт.

13

213697C1

BOLT

EYEBOLT

2шт.

124847

COLLAR

5/8-11 znd hex. jam

4шт.

14

208590C2

FRAME

CHANNEL ASSY, bale tightener RH

1шт.

15

219251C91

HOUSING, BEARING

BEARING ASSY, roller, export only, relubricatable bearing used on No. 5 and No. 7 rolls

4шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

16

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 taper drive thd lube

4шт.
