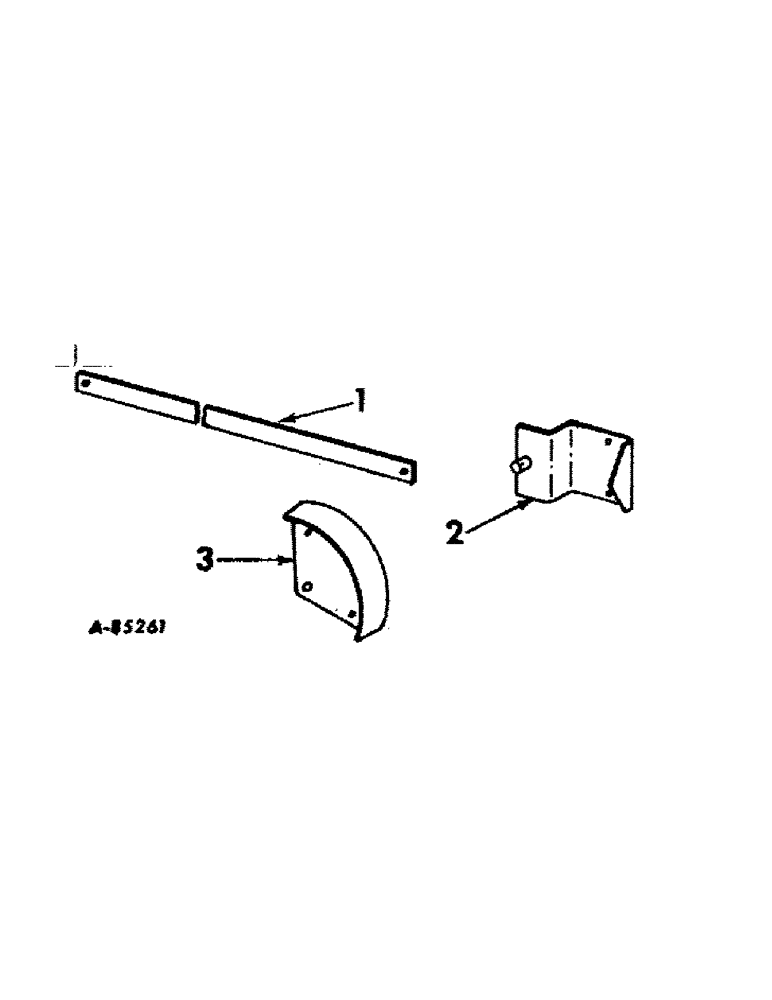

Запчасти Case IH 241 (A-27) - BALE SIZE INDICATOR (62) - PRESSING - BALE FORMATION

1

208652C1

STRAP

indicator adjustment

1шт.

477242R1

WASHER

.406 x 1.000 x .027 ga znd

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

2

208658C1

POINT

ASSY, bale indicator

1шт.

17739D

PIN, 3/8 x .625 std-hd

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

127507H

WASHER

.406 x .875 x .164 pln

2шт.

3

208649C1

RING

ASSY, indicator

1шт.

17739D

PIN, 3/8 x .625 std-hd

1шт.

477242R1

WASHER

.406 x 1.000 x .027 ga znd

4шт.

648002

KNIFE

1/8" x 3/4"

2шт.

21888R1

HEADED PIN,3/8" x 3/4", G2

PIN, 3/8 x 3/4 znd std-hd

1шт.
