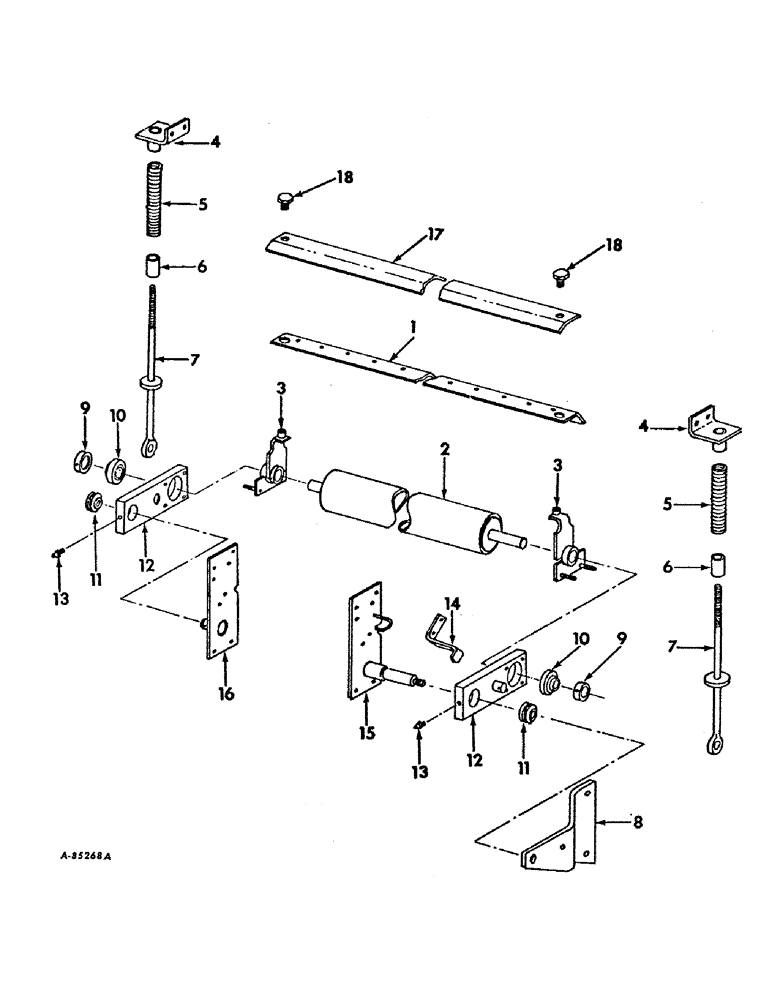

Запчасти Case IH 241 (A-24) - PRESS ROLL (62) - PRESSING - BALE FORMATION

1

213635C1

BLADE

SCRAPER, press roll, serial No. 7810 and below

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8-16 x 3/4 znd hex-hd lock

2шт.

614452R1

WASHER

.406 x 1.250 x .10 znd

2шт.

178375R1

WASHER

.781 x 1.250 x .054 znd

4шт.

21757R1

WASHER

.781 x 1.250 x .27 znd

2шт.

2

208520C1

ROLL

ASSY, press, roll POS. No. 18

1шт.

3

210335C1

BASE

MOUNT ASSY, press roll scraper, serial No. 7810 and below

2шт.

3

218579C1

BASE

ASSY, pressure roll scraper, serial No. 7811 and above

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

4шт.

4

210315C1

BRACKET

ASSY, spring adj

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

4шт.

5

659348R1

SPRING

press roll pivot

2шт.

22050R1

WASHER

1.281 x 1.750 x .054 znd

2шт.

6

208493C2

TUBE

bearing housing screw

2шт.

7

208763C1

BOLT

EYEBOLT ASSY, spring adj

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 znd hex. jam

4шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

21796R1

WASHER

.656 x 1.000 x .054 znd

2шт.

8

208540C2

BRACKET

press roll pivot strap

1шт.

9

455104R11

COLLAR

W/SET SCREW, press roll brg

2шт.

10

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

ASSY, press roll

2шт.

11

149401H1

BUSHING

BEARING, press roll pivot ball bushing

2шт.

12

208527C93

ARM

ASSY, press roll

2шт.

13

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg angle lub

2шт.

14

208797C1

GUIDE

main drive chain

1шт.

15

208532C4

SHAFT

ASSY, press roll pivot LH

1шт.

9413973

LOCK NUT,7/8"-9, GB

NUT, 7/8 cad p/t lock type 5

1шт.

16

208535C2

SHAFT

ASSY, press roll pivot RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

16шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

17

218766C1

BLADE

press roll, serial No. 7811 and above

1шт.

614452R1

WASHER

.406 x 1.250 x .090

2шт.

178375R1

WASHER

.781 x 1.250 x .054

4шт.

21757R1

WASHER

.781 x 1.250 x .027

2шт.

18

218344C1

BOLT,3/8" - 16 x 0.654"

scraper mounting

2шт.
