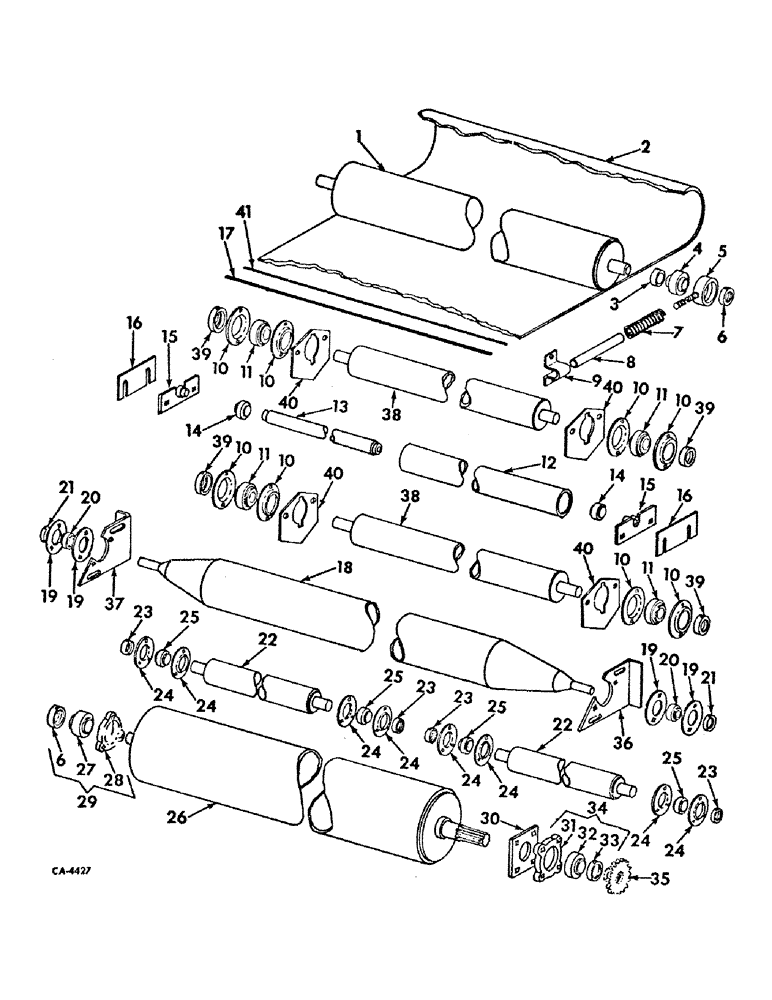

Запчасти Case IH 241 (A-22) - LOWER CONVEYOR WITH ROLLERS, SERIAL NO. 8311 AND ABOVE (62) - PRESSING - BALE FORMATION

1

208476C1

ROLL

ASSY, lower conveyor idler, roll POS. No. 15

1шт.

2

210480C92

CONVEYOR BELT,1524.00 mm W x 3095.00 mm L

BELT CONVEYOR , Lower 1524.00 mm W x 3095.00 mm L

1шт.

218322

WASHER,0.12" ID x 0.31" OD x 0.03" Thk

.125 x .312 x .025

2шт.

3

210302C1

SPACER

rear roller

2шт.

4

389440R91

BEARING ASSY,31.75mm ID x 72mm OD x 17mm W

ASSY

2шт.

5

208490C2

CASE

HOUSING ASSY, rear conveyor brg

2шт.

6

455104R11

COLLAR

W/SET SCREW

3шт.

7

15282BA

SPRING

rear conveyor

2шт.

124847

COLLAR

5/8 jam type 5

4шт.

8

219162C1

TUBE

ASSY, bearing housing screw

2шт.

614451R1

WASHER

1.031 x 1.750 x .105

2шт.

9

208372C1

BRACKET

spring anchor

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

4шт.

10

612031R1

FLANGED BEARING

roller brg

8шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

8шт.

937017R1

NUT, 5/16 flange lock

8шт.

11

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

idler roll

4шт.

12

208481C1

PIPE

roll POS. No. 13

1шт.

13

208483C1

SHAFT

idler roller

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 type 1

2шт.

14

208482C91

BEARING ASSY

roller idler

2шт.

15

218447C1

SUPPORT

ASSY, roller

2шт.

16

210364C1

SHIM, spacer, (or as required)

2шт.

17

210481C2

PIN

belt connector

1шт.

17

210321C1

TOOL

LACER, belt, not illustrated

1шт.

17

208790C1

PACKAGE

KIT, No. 4 clipper belt hook, see operator's manual

1шт.

18

213864C1

ROLLER

tapered, roll POS. No. 17

1шт.

19

612031R1

FLANGED BEARING

roller brg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

19006R1

PLOW BOLT,#3, 5/16" - 18 x 3/4", Gr 2

BOLT, 5/16 x 3/4 plow type 1

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

20

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

roller

2шт.

21

455102R21

COLLAR

W/SET SCREW, brg locking

2шт.

22

218401C1

ROLLER

ASSY, front skewed, roll POS. No. 16

2шт.

23

455102R21

COLLAR

W/SET SCREW, brg locking

4шт.

24

462360R1

FLANGED BEARING

brg mounting

8шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

12шт.

25

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

front

4шт.

26

208465C2

ROLL

ASSY, lower conveyor, roll POS. No. 11

1шт.

27

173735C91

BEARING ASSY

lower conveyor end RH

1шт.

28

HOUSING, not serviced separately, order 208475C91

1шт.

29

208475C91

BEARING ASSY

BEARING W/HOUSING, lower conveyor end RH

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

3шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

3шт.

30

208474C1

PLATE

lower conveyor spacer LH

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x crg type 5

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

31

HOUSING, not serviced separately, order 208473C91

1шт.

32

172408C91

BALL BEARING,49.21mm ID x 90mm OD x 23mm W

BEARING ASSY, lower conveyor end LH

1шт.

33

618032R11

COLLAR

W/SET SCREW, brg locking

1шт.

34

208473C91

BEARING ASSY

BEARING W/HOUSING, lower conveyor LH

1шт.

35

SPROCKET DRIVE, see main drive

1шт.

36

214274C1

SUPPORT

brg mounting LH

1шт.

37

214275C1

SUPPORT

brg mounting RH

1шт.

38

208500C2

ROLL

TUBE ASSY, idler roll, roll POS. No. 12 and No. 14

2шт.

39

455102R21

COLLAR

W/SET SCREW, brg locking

4шт.

40

214367C1

BAR

No. 12 & 14 roll mounting

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

8шт.

41

214299C1

ELECTRICAL WIRE

PIN, lower belt

1шт.
