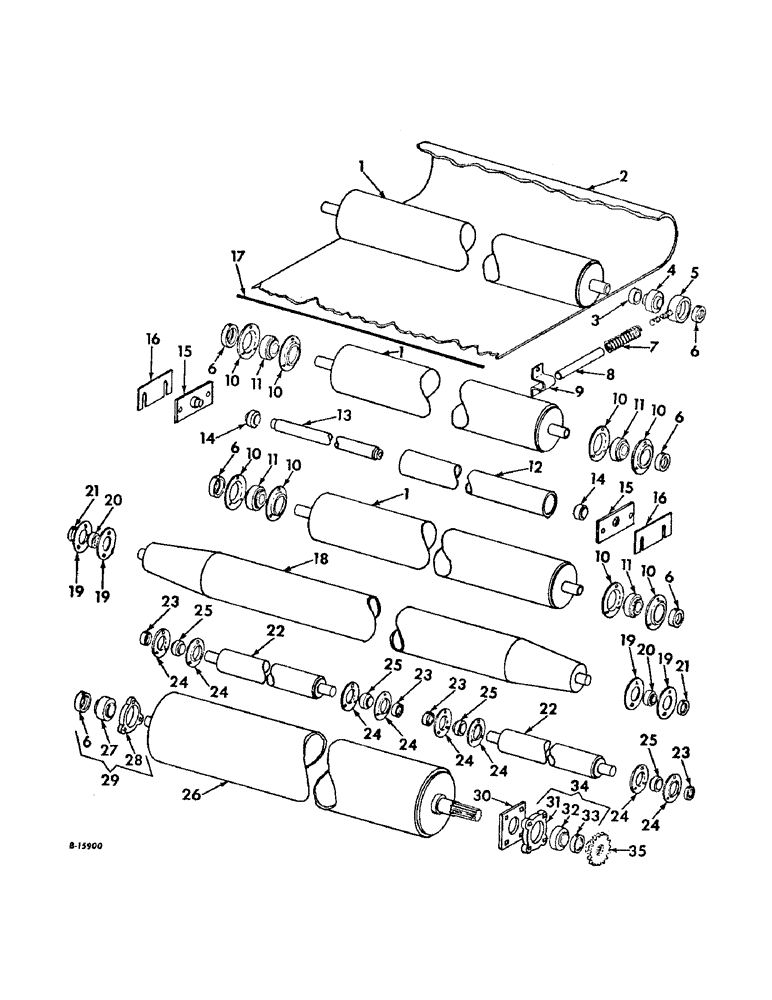

Запчасти Case IH 241 (A-20) - LOWER CONVEYOR WITH ROLLERS, SERIAL NO. 8310 AND BELOW (62) - PRESSING - BALE FORMATION

1

208476C1

ROLL

ASSY, lower conveyor idler, roll POS. No. 12, No. 14 and No. 15

3шт.

2

210480C92

CONVEYOR BELT,1524.00 mm W x 3095.00 mm L

BELT CONVEYOR , Lower 1524.00 mm W x 3095.00 mm L

1шт.

218322

WASHER,0.12" ID x 0.31" OD x 0.03" Thk

.125 x .312 x .025

2шт.

3

210302C1

SPACER

rear roller

2шт.

4

389440R91

BEARING ASSY,31.75mm ID x 72mm OD x 17mm W

ASSY

2шт.

5

208490C1

HOUSING

ASSY, rear conveyor brg

2шт.

6

455104R11

COLLAR

W/SET SCREW

7шт.

7

15282BA

SPRING

rear conveyor

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 znd hex. jam

4шт.

8

210477C1

TUBE

bearing housing screw

2шт.

20704R1

WASHER

1-1/32 x 1-1/2 x .105 ga znd

2шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga znd

2шт.

9

208372C1

BRACKET

spring anchor

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

4шт.

10

617863R1

FLANGED BEARING

brg mounting

8шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

12шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

12шт.

11

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ASSY, lower conveyor idler roll

4шт.

12

208481C1

PIPE

roll POS. No. 13

1шт.

13

208483C1

SHAFT

idler roller

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

2шт.

14

208482C91

BEARING ASSY

roller idler

2шт.

15

208494C1

ANCHOR

ASSY, roller

2шт.

16

210364C1

SHIM, spacer, (or as req.)

2шт.

17

210481C2

PIN

belt connector

1шт.

17

210321C1

TOOL

LACER, belt, not illustrated

1шт.

17

208790C1

PACKAGE

KIT, No. 4 clipper belt hook, see operator's manual

1шт.

18

213561C1

ROLL

ASSY, tapered idler, roll POS. No. 17

1шт.

19

612031R1

FLANGED BEARING

roller brg

4шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

4шт.

20

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

roller

2шт.

21

455102R21

COLLAR

W/SET SCREW, brg locking

2шт.

22

208484C1

ROLLER

ASSY, front, roll POS. No. 16

2шт.

23

455102R21

COLLAR

W/SET SCREW, brg locking

4шт.

24

462360R1

FLANGED BEARING

brg mounting

8шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

12шт.

25

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

front

4шт.

26

208465C2

ROLL

ASSY, lower conveyor, roll POS. No. 11

1шт.

27

173735C91

BEARING ASSY

lower conveyor end RH

1шт.

28

HOUSING, not serviced separately, order 208475C91

1шт.

29

208475C91

BEARING ASSY

BEARING W/HOUSING, lower conveyor end RH

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 znd sq-nk crg

3шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad hex. lock

3шт.

30

208474C1

PLATE

lower conveyor spacer LH

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 znd sq-nk crg

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 znd hex. lock

4шт.

31

HOUSING, not serviced separately, order 208476C91

1шт.

32

172408C91

BALL BEARING,49.21mm ID x 90mm OD x 23mm W

BEARING ASSY, lower conveyor end LH

1шт.

33

618032R11

COLLAR

W/SET SCREW, brg locking

1шт.

34

208473C91

BEARING ASSY

BEARING W/HOUSING, lower conveyor LH

1шт.

35

SPROCKET DRIVE, see main drive

1шт.
