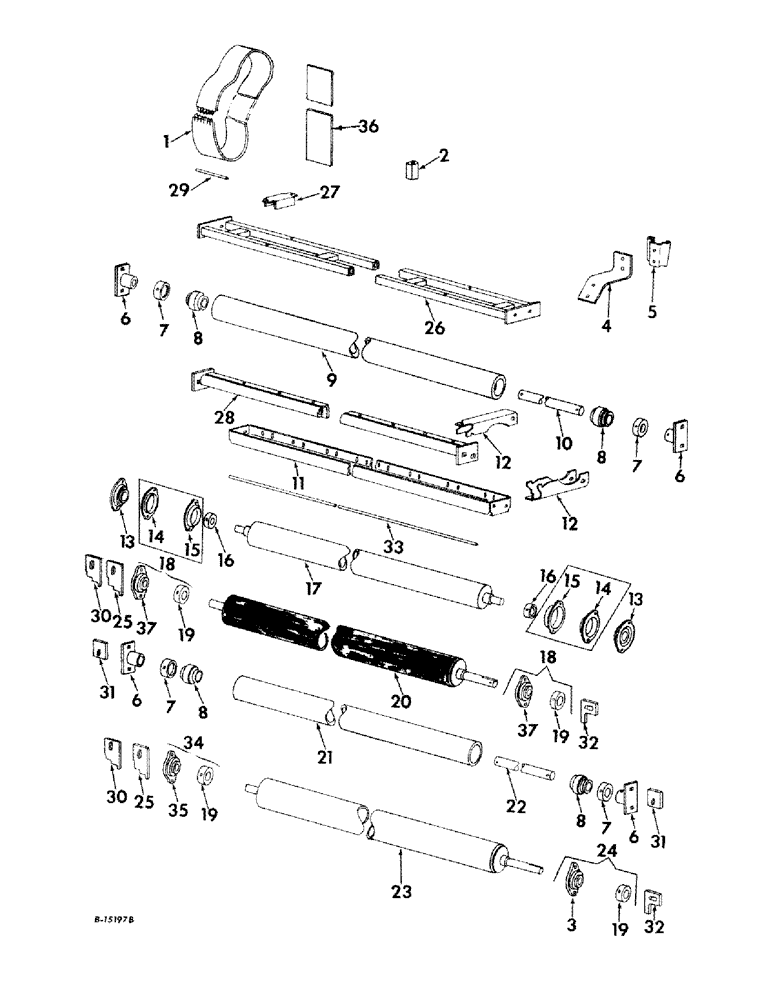

Запчасти Case IH 241 (A-18) - UPPER CONVEYOR WITH ROLLERS (62) - PRESSING - BALE FORMATION

1

208510C92

CONVEYOR BELT,101.50 mm W x 10960.10 mm L

BELT, CONVEYOR , Assy, Upper 101.50 mm W x 10960.10 mm L

9шт.

218322

WASHER,0.12" ID x 0.31" OD x 0.03" Thk

.125 x .312 x .025

18шт.

208790C1

PACKAGE

KIT, No. 4-1/2 lacing belt

1шт.

2

208512C1

CHANNEL

belt guide, serial No. 7810 and below

10шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3-3/4 znd sq-nk crg

10шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

14шт.

3

1281286C91

FLANGED BEARING,36.51mm ID

ASSY, front drive (Replaces 570043R91)

1шт.

4

208736C1

BRACKET, SMV emblem, serial No. 7810 and below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

4шт.

5

363919R1

SOCKET

light bracket

1шт.

6

208515C1

BRACKET

ASSY, roller support

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

8шт.

7

557115R11

COLLAR

COLLAR W/SET SCREW, brg locking

6шт.

8

208482C91

BEARING ASSY

6шт.

9

208481C1

PIPE

roll POS. No. 6

6шт.

10

208757C1

SHAFT

top idler

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

11

208783C2

STAY

CHANNEL, belt guide finger

3шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

8шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

12шт.

12

208782C2

FINGER

belt guide

30шт.

669637R1

SELF-TAP SCREW

5/16-18 x 1/2 znd hex-hd self tap

30шт.

13

214490C91

BALL BEARING,25.4mm ID

BEARING ASSY, idler roller, replaces 214366C91

6шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

8шт.

19575R1

BOLT, 5/16 x 1-1/8 type 1

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

12шт.

14

208303C1

FLANGED BEARING,1.915" ID x 2.7" OD x 0.32"

FLANGE, flush mount, inner, serial No. 7810 and below

6шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

8шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 znd hex-hd cap

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

12шт.

15

208304C1

CASE

FLANGE, flush mount, outer, serial No. 7810 and below

6шт.

16

455102R21

COLLAR

W/SET SCREW, brg locking

6шт.

17

218677C1

ROLL

ASSY, upper drive, roll POS. No. 3

1шт.

591715R1

WASHER

1.031 x 1.500 x .054 znd, (or as required)

18шт.

18

208509C91

BEARING ASSY

W/HOUSING, front roller drive

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

19

557113R11

COLLAR

brg locking

4шт.

20

208500C2

ROLL

TUBE ASSY, idler roller, roll POS. No. 4, No. 8 and No. 9

3шт.

21

208499C1

PIPE

roll POS. No. 2 and No. 10

2шт.

22

208518C1

SHAFT

lower arm roller, gate

2шт.

18658R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 2

1/4 x 1-3/4 znd hex-hd mach

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

Q162

WASHER

1.156 x 1.750 x .054 pln

8шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

23

208502C1

TUBE

ASSY, fornt roller drive, roll POS. No. 1

1шт.

24

213557C91

ROLLER BEARING

BEARING ASSY W/HOUSING FRT ROLLER DRIVE

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

25

218110C1

KNIFE ASSY

BLADE, upper drive roll

2шт.

26

214346C1

GUIDE

ASSY, belt

1шт.

27

218420C1

CHANNEL

belt guide

4шт.

172451

SELF-TAP SCREW,Hex Hd, 5/16" x 5/8"

SCREW, 5/16 x 5/8 h/hd tap

8шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

28

218999C91

GUIDE

W/PRODUCT GRAPHIC, belt

1шт.

29

218075C1

ELECTRICAL WIRE

PIN, upper belt

9шт.

30

214418C1

BRACKET

BLADE, upper drive roll RH, serial No. 7811 and above

2шт.

31

214419C1

BLADE

BAR, idler roll blade, serial No. 7811 and above

2шт.

32

218578C1

BLADE

BAR, drive roll blade LH, serial No. 7811 and above

2шт.

33

208781C1

ROD

belt retainer

3шт.

34

218575C91

BEARING ASSY,36.51mm ID

BEARING W/HOUSING, front roller drive

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

35

218584C91

BEARING ASSY,36.52mm ID x 72mm OD x 19mm W

1шт.

36

218992C1

BELT,101.50 mm W x 2438.50 mm L

Upper splice 101.50 mm W x 2438.50 mm L

1шт.

37

256557R92

BALL BEARING,36.51mm ID x 72mm OD x 19mm W

ASSY

2шт.
