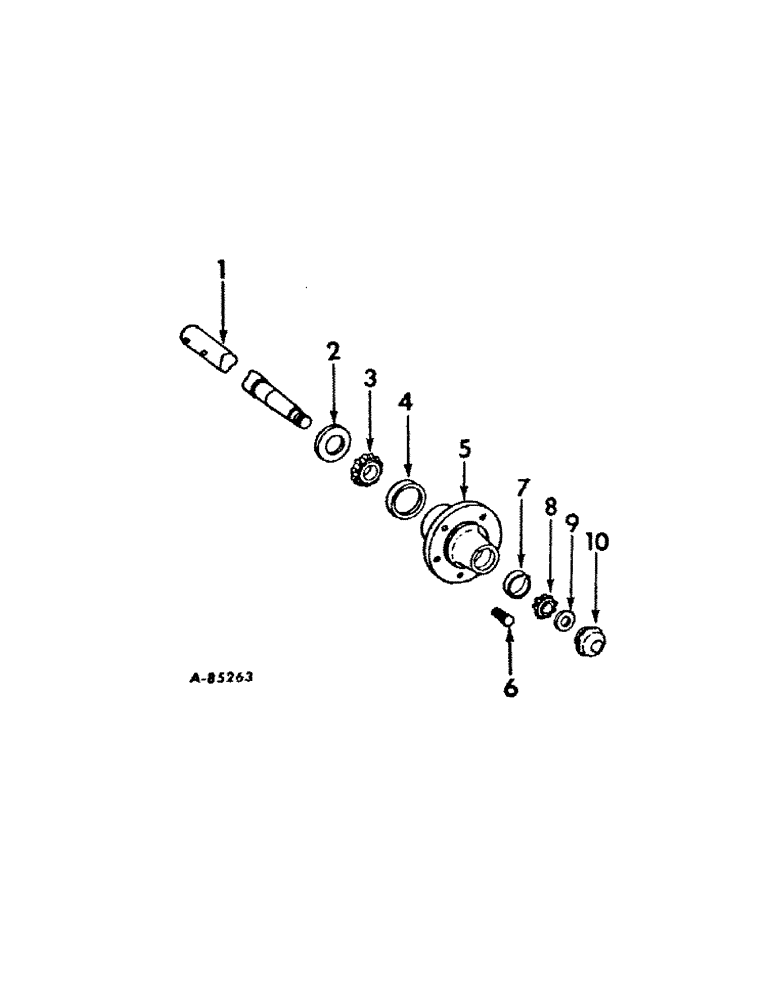

Запчасти Case IH 241 (A-08) - WHEEL HUBS AND SPINDLES (44) - WHEELS

1

208444C1

SPINDLE

wheel

2шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 PHC hex. lock

2шт.

2

208443C1

OIL SEAL

grease

2шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, wheel inner cone

2шт.

4

663558R1

BEARING CUP

BEARING, wheel inner cup

2шт.

5

208441C91

HUB

ASSY, wheel, includes ref. no. 4 and 7

2шт.

6

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT, wheel, replaces 364451R1

12шт.

7

651817R1

BEARING CUP

BEARING, wheel outer cup

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel outer cone

2шт.

9

208445C1

WASHER

13/16 x 1-3/4 x 3/16 hard

2шт.

472640

NUT, 3/4-16 znd slt-hex.

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

10

518842R1

CAP

hub

2шт.
