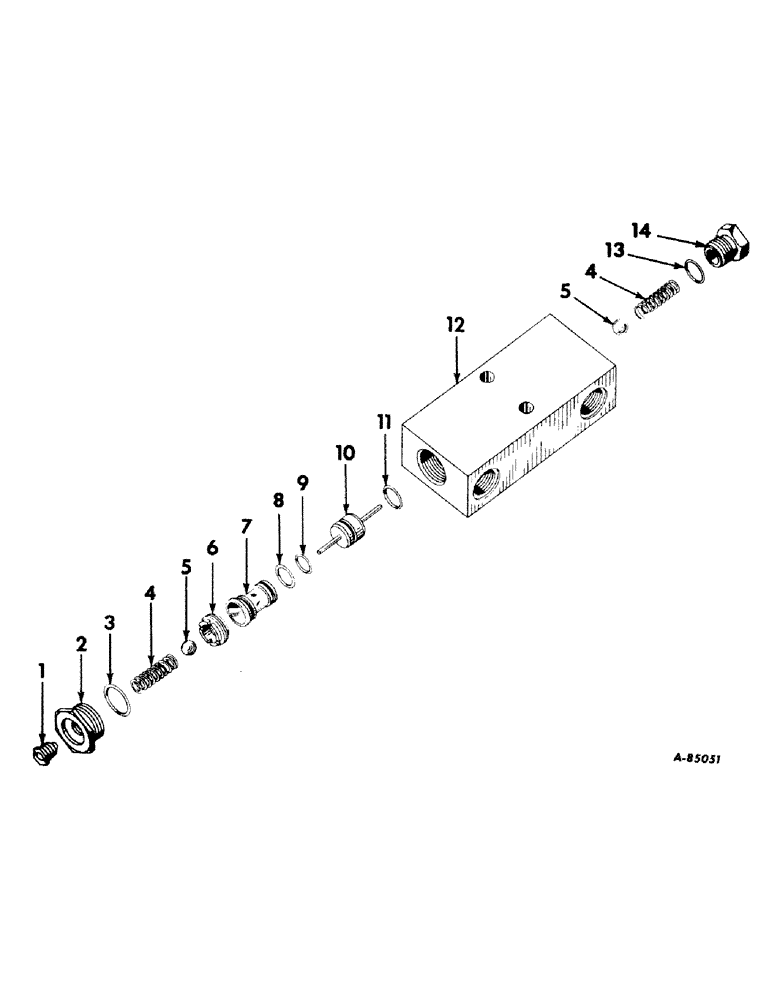

Запчасти Case IH 241 (A-37) - DOUBLE ACTION CHECK VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

673293R92

VALVE

ASSY, double check

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 hex-hd mach

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

3/8-18 hex.

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Consists of the following service parts 3/8"

2шт.

1

385702R91

VALVE

ASSY, thermal relief

1шт.

2

377594R1

PLUG

check valve relief

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64 check valve relief plug

1шт.

4

372649R1

SPRING

check valve

2шт.

5

17016R1

BALL,1/2" Dia

Check valve 1/2" Dia

2шт.

6

374172R1

NUT

check valve ball retainer

1шт.

7

674540R1

RETAINER

check valve ball

1шт.

8

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk Ball Retainer

1шт.

9

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16 ball retainer

1шт.

10

374085R11

PISTON

ASSY, check valve actuator

1шт.

11

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32, check valve piston

1шт.

12

(Not serviced separately), order 673293R92

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32 check valve small

1шт.

14

374089R1

PLUG

check valve small

1шт.
