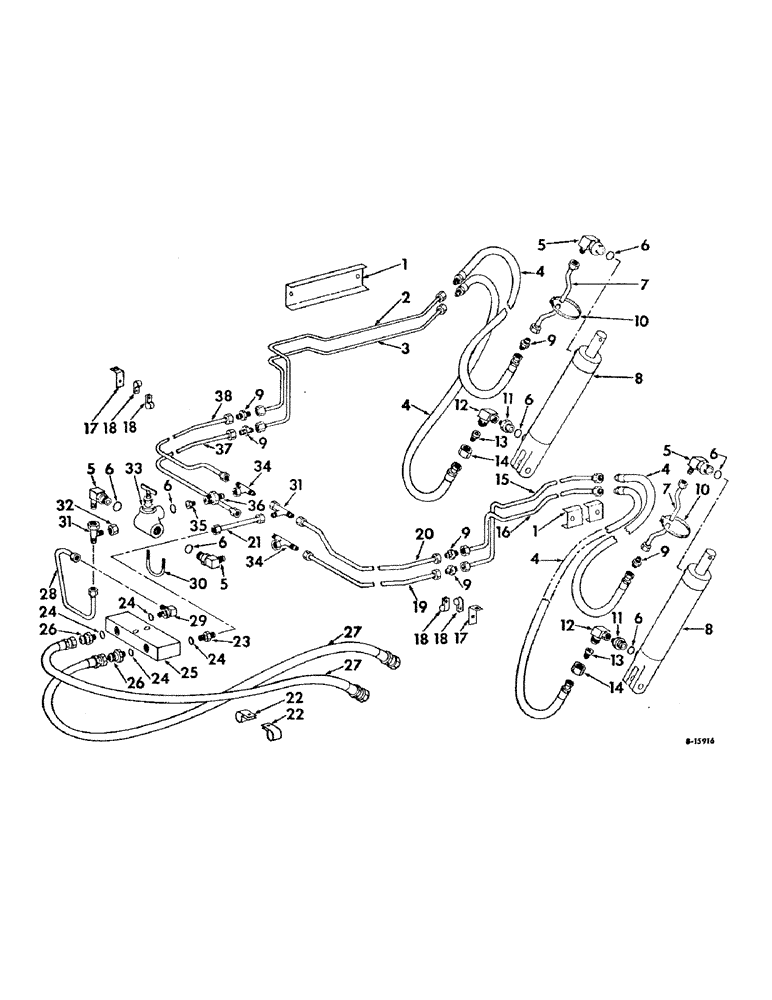

Запчасти Case IH 241 (A-35) - HYDRAULIC LINES AND FITTINGS, SERIAL NO. 3711 AND UP (35) - HYDRAULIC SYSTEMS

1

213556C1

CHANNEL

rear tube assy

2шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 znd sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

8шт.

127507H

WASHER

.406 x .875 x .164 pln

4шт.

2

213553C1

TUBE

ASSY, rear upper to cyl RH

1шт.

3

213551C1

TUBE

ASSY, rear lower to cylinder RH 90 deg swivel

1шт.

4

607005R91

HOSE

cyl upper and lower

4шт.

5

671796R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

7/8-14 to 9/16-18 37 deg hyd flared tube adj str thd 90 deg reducer w/o-ring

4шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.625 OD tube

7шт.

7

673582R11

TUBE,0.375" OD, 17, 1.2" Length

ASSY, cyl upper

2шт.

8

392743R92

CYLINDER

ASSY, hydraulic, refer to cyl, 1 for components

2шт.

386685R91

KIT

KIT, o-ring & seal

1шт.

27577R1

PIN

5/8 x 3-5/16 znd std-hd

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

25419R1

PIN

1 x 2-3/4 znd std-hd

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

9

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 37 deg hyd flared tube

6шт.

10

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP, hose

2шт.

11

532875R1

FITTING

RESTRICTOR, hyd line

2шт.

12

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 37 deg hyd flared tube 90 deg swivel

2шт.

13

9403402

REDUCER,37 Degree, 5/8" x 1/4" Tube

9/16-18 37 deg hyd flared tube

2шт.

14

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT, 7/8-14 37 deg flared tube

2шт.

15

213552C1

HYD TUBE

TUBE ASSY, rear upper to cylinder LH

1шт.

16

213550C1

HYD TUBE

TUBE ASSY, rear lower to cylinder LH

1шт.

17

213600C1

ANGLE

hydraulic lines

2шт.

18

299404C1

CLAMP

3/8 PHC closed coated

12шт.

19

213548C1

HYD TUBE

TUBE ASSY, frt lower to rear upper LH

1шт.

20

213546C1

HYD TUBE

TUBE ASSY, front upper to rear lower LH

1шт.

21

213554C1

TUBE,9.525 mm OD, 88.9 mm Length

ASSY, check valve to line

1шт.

22

27291R1

CLAMP

1 PHC closed coated

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

23

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

1шт.

24

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

25

673293R92

VALVE

ASSY, double action check, see check valve assy

1шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 type 1

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

26

26210R1

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short reducer

2шт.

27

151021H1

HOSE

ASSY, tractor to check valve hyd, replaces 218465C2

2шт.

28

213555C1

HYD TUBE

TUBE ASSY, relief valve to check valve

1шт.

29

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg flared tube adj str thd 90 deg

1шт.

30

538731R1

BOLT,U, 5/16" - 18 x 2.30"

U-BOLT, relief valve assy.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

2шт.

31

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

9/16-18 37 deg hyd flared tube swivel, 90 deg

2шт.

32

9403371

CAP,37 Degree, 9/16"-18

9/16-18 37 deg hyd flared tube

1шт.

33

208621C91

VALVE

ASSY, relief, see relief valve assembly

1шт.

34

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

9/16-18 37 deg hyd flared tube swivel

2шт.

35

213570C1

PLUG

orifice

1шт.

36

213569C1

CONNECTOR, ELEC

CONNECTOR, reducer

1шт.

37

213549C1

TUBE

ASSY, frt lower to rear upper RH

1шт.

38

213547C1

HYD TUBE

TUBE ASSY, frt upper to rear lower RH

1шт.

395149R1

QUICK MALE COUPLING

COUPLER, poppet type, 7/8-14 thread, hydraulic

1шт.

544787R91

COUPLING, BREAK AWAY

COUPLER, self sealing type, 7/8-14 thread, hydraulic

1шт.

1272399C2

QUICK MALE COUPLING

COUPLER, self sealing type, ISO standard, 7/8-14 thread, hydraulic

1шт.

1285718C2

QUICK MALE COUPLING

COUPLER, self sealing type, ISO standard, 3/4-16 thread, hydraulic

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, use on coupler with 7/8-14 threads, hydraulic

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, use on couplers with 3/4-16 threads, hydraulic

1шт.

407045R1

FITTING

BUSHING, 3/4-16 str thd x 7/8-14 str thd, used on adapt 3/4-16 hose fitting to 7/8-14 coupling, hydraulic

1шт.

407545R1

FITTING

BUSHING REDUCER, 7/8-14 str thd x 3/4-16 str thd, used to adapt 7/8-14 hose fitting to 3/4-16 coupling, hydraulic

1шт.

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 5/8 to 3/8 sht, used on 7/8-14 str thd couplers, hydraulic

1шт.

607728R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR, C-Z hyd fld 1/2 to 3/8, used on 1/2 in. pipe couplers, hydraulic

1шт.

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht, used on 3/4 in. pipe couplers, hydraulic

1шт.
