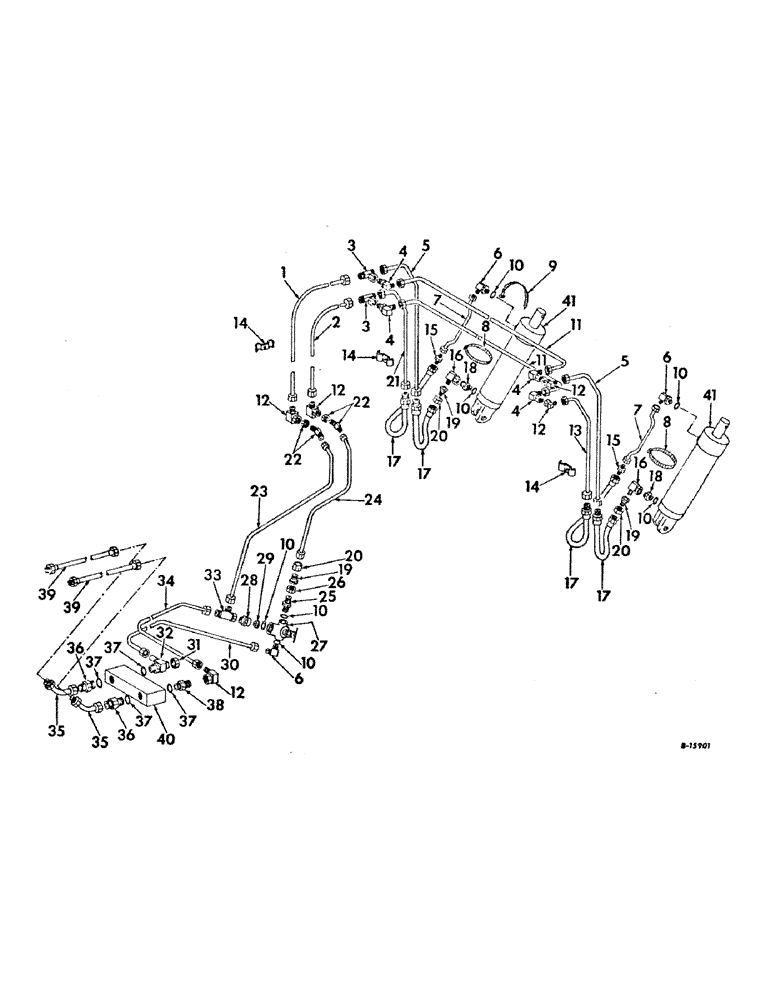

Запчасти Case IH 241 (A-33) - HYDRAULIC LINES AND FITTINGS, SERIAL NO. 501 THROUGH 3710 (35) - HYDRAULIC SYSTEMS

1

208615C1

TUBE ASSY, top vertical

1шт.

2

208616C1

TUBE ASSY, bottom vertical

1шт.

3

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

9/16-18 37 deg hyd flared tube swivel

2шт.

4

673821R1

ELBOW UNION

ELBOW, bulkhead tube

4шт.

5

208619C1

TUBE ASSY, cyl top

2шт.

6

671796R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

7/8 to 9/16 hyd reducer

3шт.

7

673582R11

TUBE,0.375" OD, 17, 1.2" Length

ASSY, cyl upper

2шт.

8

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP, hose

2шт.

9

200549C2

CLAMP

STRAP, hydraulic line

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.625 OD tube

7шт.

11

208617C1

TUBE

top cross

2шт.

12

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

9/16-18 37 deg hyd flared tube

5шт.

13

208618C1

TUBE ASSY, cyl bottom LH

1шт.

14

588322R2

CLIP, hyd line

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

3шт.

15

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 37 deg hyd flared tube

2шт.

16

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 37 deg hyd flared tube

2шт.

21862R1

WASHER

.594 x 1.000 x .105

4шт.

17

607005R91

HOSE

cyl upper & lower

4шт.

18

532875R1

FITTING

RESTRICTOR, hyd line

2шт.

19

9403402

REDUCER,37 Degree, 5/8" x 1/4" Tube

9/16-18 37 deg hyd flared tube

3шт.

20

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT, 7/8-14 37 deg flared tube

3шт.

21

208699C1

TUBE ASSY, cyl bottom RH

1шт.

22

208702C1

ELBOW

9/16-18 37 deg hyd flared tube

2шт.

23

208700C1

TUBE

ASSY, relief valve

1шт.

24

208701C1

TUBE ASSY, relief valve

1шт.

25

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 7/8-14 37 deg hyd flared tube bulkhead

1шт.

26

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 7/8-14 bulkhead union lock

1шт.

27

VALVE ASSY, see relief valve assembly

1шт.

28

213569C1

CONNECTOR, ELEC

CONNECTOR, reducer

1шт.

29

213570C1

PLUG

orifice

1шт.

30

208614C1

TUBE ASSY, rear gate lower, front

1шт.

31

9403371

CAP,37 Degree, 9/16"-18

9/16-18 37 deg hyd flared tube

1шт.

32

9411130

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Run

9/16-18 37 deg flared tube adj

1шт.

33

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

9/16 37 deg hyd flared tube swivel, 90 deg

1шт.

34

208613C1

TUBE ASSY, rear gate raise, front

1шт.

35

208343C1

TUBE NUT

ADAPTER, 7/8-14 37 deg hyd flared tube

2шт.

36

26210R1

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short reducer

2шт.

37

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

38

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

1шт.

39

151021H1

HOSE

hyd, tractor to check valve

2шт.

40

VALVE ASSY, double action check, see check valve assy

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8-16 x 2-1/4 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

41

392743R92

CYLINDER

ASSY, hydraulic, refer to cyl, 1 for components

2шт.

386685R91

KIT

KIT, o-ring & seal

1шт.
