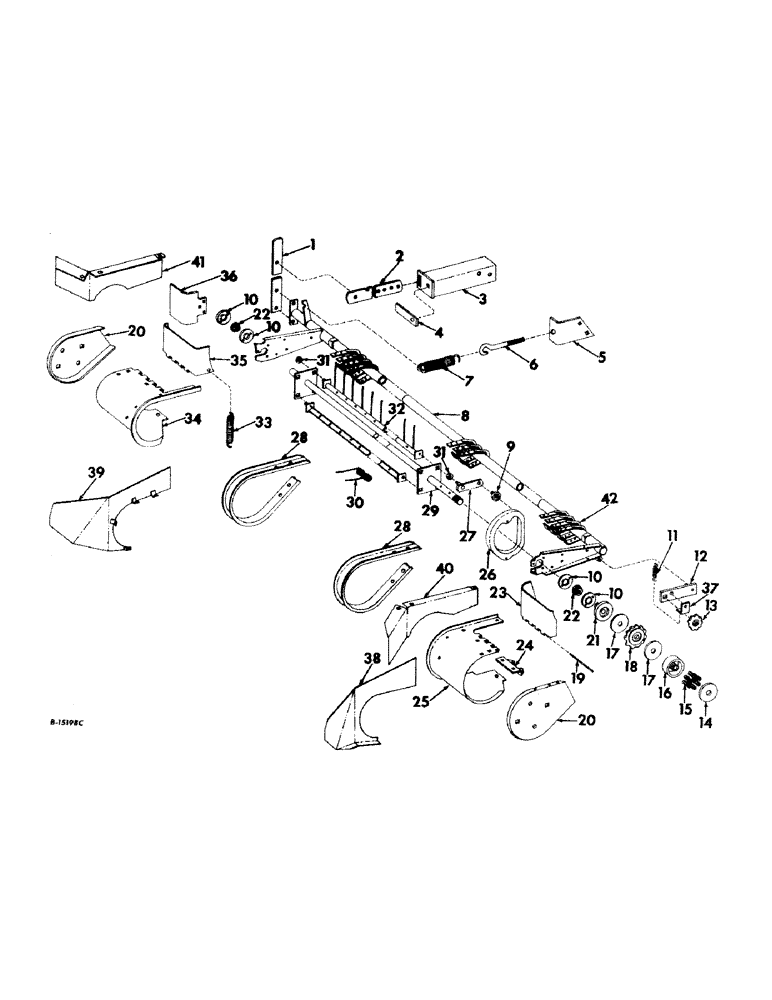

Запчасти Case IH 241 (A-26) - PICKUP CYLINDER AND DRIVE (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
208339C1
LEVER
pickup lift
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2-13 x 1-1/2 znd hex-hd cap
2шт.
664573R1
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 hex. lock
2шт.
2
208566C1
STRAP
pickup latch
1шт.
17140R1
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
BOLT, 1/2 x 1-1/4 znd sq-nk crg
1шт.
9413956
LOCK NUT,1/2"-13, GB
NUT, 1/2 PHC p/t lock type 5
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 type 1
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
1шт.
9412083
NUT,5/16"-18, GB
NUT, 5/16 cad p/t lock type 5
1шт.
3
208336C1
BRACKET
ASSY, press roll pivot
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 znd hex-hd mach
2шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8-16 znd hex. lock
2шт.
520175R1
CLIP
PIN, quick attachable
1шт.
4
208342C1
BAR
LATCH, pickup control
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
1шт.
9412083
NUT,5/16"-18, GB
NUT, 5/16-18 cad hex. lock
1шт.
932357R1
HEADED PIN,5/16" x 3"
PIN, 5/16 x 3. pln hd type 5
2шт.
648002
KNIFE
1/8" x 3/4"
2шт.
5
208335C1
BRACKET
spring anchor, serial No. 7810 and below
1шт.
5
218398C1
SUPPORT ASSY.
SUPPORT, spring anchor, serial No. 7811 and above
1шт.
6
208626C1
BOLT
EYEBOLT, pickup spring
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
7
PO27
SPRING
pickup balance, serial No. 7810 and below
1шт.
7
PO10
SPRING
pickup balance, serial No. 7811 and above
1шт.
8
208541C1
FRAME
ASSY, pickup
1шт.
9
202719C91
BEARING ASSY,1.25" OD x 0.7812"
cam follower
4шт.
20285H
WASHER
13/32 x 3/4 x 11 ga
8шт.
666639R1
LOCK NUT,3/8"-24, GB
NUT, 3/8-24 hex. lock
4шт.
10
612031R1
FLANGED BEARING
bearing
4шт.
11
13985V
SPRING
governor control rod return
1шт.
23042R1
WASHER
.531 x 1.000 x .027
3шт.
12
208563C1
ARM
ASSY, idler
1шт.
13
582415R91
DRIVE SPROCKET,9T
SPROCKET ASSY, pickup idler
1шт.
14
202090C1
WASHER
spring clamp
1шт.
15
M1015
SPRING
clip clutch pressure
6шт.
219760
BACK-UP RING
1-14 znd hex. jam
2шт.
576483R1
LOCK PIN,5/16" x 1 1/2", Slotted
Pin, 5/16" x 1 1/2", Slotted
2шт.
16
202399C1
HUB
pickup slip clutch
1шт.
17
662291R2
LINING
pickup slip clutch
2шт.
18
208573C1
DRIVE SPROCKET
SPROCKET, slip clutch
1шт.
19
208341C1
AXLE PIN
PIN, throat sheet hinge, serial No. 7810 and below
2шт.
137159
COTTER PIN
3/32" x 5/8"
2шт.
20
208334C3
SHIELD
pickup drive chain
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
6шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znd hex-hd mach
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 znd hex. lock
8шт.
21
662026R4
HUB
pickup slip clutch
1шт.
22
671681R91
BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W
ASSY, pickup cyl
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 znd hex. lock
4шт.
23
208568C1
GUIDE, hay throat LH, serial No. 7810 and below
1шт.
24
208567C1
SUPPORT
end stripper
2шт.
25
208560C2
STRIPPER
end LH
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 crg type 1
4шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 type 1
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
7шт.
26
208622C1
CAM
tine control
1шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 hex-hd mach
3шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8-16 znd hex lock
3шт.
27
208556C1
ARM
ASSY, cam follower
4шт.
668752R1
WASHER
29/32 x 1-1/4 x 16 ga znd (or as required)
2шт.
208770C1
NUT
1/2-13 znd hex. lock
4шт.
28
208562C1
STRIPPER
center
19шт.
27950R1
SELF-TAP SCREW,Hex Hd, 5/16" x 3/4"
SCREW, 5/16-18 x 3/4 h/whd tap type "T"
78шт.
29
208553C2
SHAFT
ASSY, pickup cylinder
1шт.
30
210614C1
FINGER,Coiled, 2 Prongs, 178mm L
SPRING, pickup tooth
40шт.
Ref #30 p/n 210614C1: For p/n 441582R1 use the following: p/n 598803R1 (bolt) and ZA105429 (clip). MJP
1шт.
441582R1
BOLT,5/16" - 18 x 7/8", Steel
pickup spring
40шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 znd hex lock
40шт.
31
668999R1
BUSHING
meter wheel
8шт.
668752R1
WASHER
29/32 x 1-1/4 x 16 ga znd (or as required)
2шт.
137204
COTTER PIN,1/8" x 1 1/2"
PIN, SPLIT (COTTER), 1/8" x 1 1/2"
4шт.
32
208548C2
BAR
ASSY, pickup tooth
4шт.
33
PO91
SPRING
serial No. 7810 and below
2шт.
21644R1
PIN,1/4" x 1"
Split (Cotter), 1/4" x 1"
2шт.
34
208561C2
STRIP
PER, end RH
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
4шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 type 1
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
7шт.
35
208569C1
GUIDE
hay throat RH, serial No. 7810 and below
1шт.
36
208570C2
GUIDE
throat sheet, serial No. 7810 and below
2шт.
932357R1
HEADED PIN,5/16" x 3"
PIN, 5/16 x 3 std-hd
2шт.
648002
KNIFE
1/8" x 3/4"
2шт.
37
214293C1
SUPPORT
pickup spring
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
1шт.
38
218086C1
DEFLECTOR
upper LH, serial No. 7811 and above
1шт.
39
218087C1
DEFLECTOR
upper RH, serial No. 7811 and above
1шт.
40
214479C1
DEFLECTOR
ASSY, lower LH, serial No. 7811 and above
1шт.
21737R1
BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2
5/16 x 5/8 crg type 1
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
3шт.
41
214482C1
DEFLECTOR
ASSY, lower RH, serial No. 7811 and above
1шт.
21737R1
BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2
5/16 x 5/8 crg type 1
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
3шт.
42
208546C1
SUPPORT
stripper, 4 leg
4шт.
