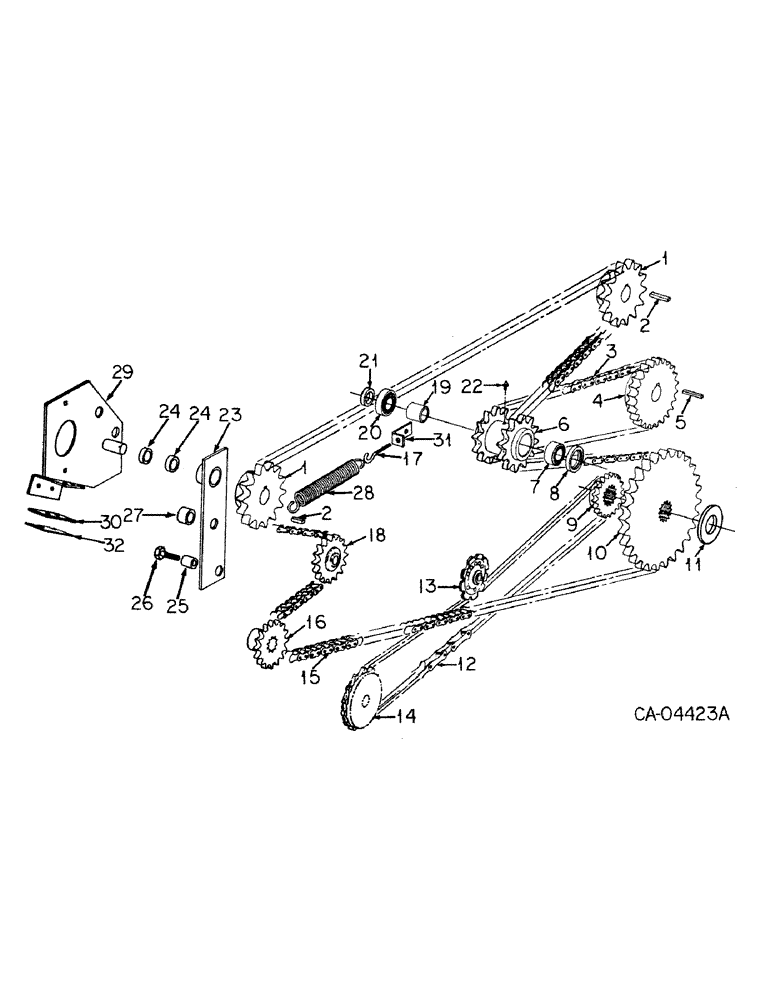

Запчасти Case IH 241 (A-13) - MAIN DRIVE, SERIAL NO. 7811 AND ABOVE (14) - MAIN GEARBOX & DRIVE

1

208456C1

DRIVE SPROCKET

SPROCKET, upper belt drive

2шт.

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW, 3/8 x 1/2 c/pt znp hdl/s set

2шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

2шт.

22812R1

WASHER

1.469 x 2.000 x .054, (or as required)

20шт.

2

219314C1

KEY

3/8 x 1-9/16 sq parallel

2шт.

3

CHAIN ASSY, press roll drive, use 37 links from 10 ft roll marked 611362R91 plus one connecting link 574532R91

1шт.

574532R91

CLIP, SPRING

LINK, #60 single pitch connecting

1шт.

4

208459C2

DRIVE SPROCKET

SPROCKET, press roll

1шт.

22210R1

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 c/pt znp hdl/s set

1шт.

22050R1

WASHER

1.281 x 1.750 x .054, (or as required)

4шт.

5

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

6

208457C2

DRIVE SPROCKET

SPROCKET, main drive and press roll drive

1шт.

7

119461R91

BEARING, ROLLER, CYL,25mm ID x 52mm OD x 20.64mm W

ASSY, sprocket, outer

1шт.

8

208633C1

OIL SEAL

brg oil

1шт.

9

218406C2

SPROCKET ASSY.

SPROCKET, pickup drive

1шт.

10

208461C1

DRIVE SPROCKET

SPROCKET, drive lower conveyor

1шт.

Q359

WASHER, 1.781 x 3 x .054 znd

3шт.

20705R1

WASHER

1-25/32 x 2-1/4 x 22 ga C-Z, (or as required)

2шт.

11

388418C1

SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk

.781 x 3.2 x 1/4 ht

1шт.

27028R1

BOLT, 3/4 x 1-1/4 PHC p/t type 8

1шт.

12

CHAIN, pickup drive, use 41 links from 10 ft roll marked, 569089R91 plus one connecting link, 456980R91 and one offset link, 456929R91

1шт.

456929R91

CHAIN LINK

LINK, #2050 double pitch offset

1шт.

456980R91

CHAIN LINK

LINK, #2050 double pitch connecting

1шт.

13

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, pickup idler

1шт.

589068R1

WASHER

.656 x 1.250 x .090

4шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 crg type 1

1шт.

9413969

NUT,5/8"-11, GB

5/8 cad p/t lock type 5

1шт.

14

SPROCKET, slip clutch, see pickup drive

1шт.

15

CHAIN ASSY, main drive, use 119 links from 10 ft roll marked, 654437R91 plus two connecting links, 654438R91 and one roller link, 654440R91

1шт.

654438R91

LINK

#80 single pitch connecting

2шт.

654440R91

LINK

#80 single pitch roller

1шт.

16

SPROCKET, main drive, see main drive gear box

1шт.

17

214471C1

BOLT

spring load idler

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

18

208455C91

DRIVE SPROCKET

SPROCKET ASSY, main drive idler

1шт.

19

208458C2

SPACER

brg, inner

1шт.

20

280428C91

BEARING ASSY,0.9847" ID x 2.0472" OD x 0.5006"

ASSY, sprocket, inner

1шт.

21

208634C1

SPACER

brg, outer

1шт.

22

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tap lub

1шт.

23

214338C92

ARM

ASSY, idler

1шт.

24

200465C1

BUSHING

2шт.

25

650676R1

SPACER,3/8" X-Strng Pipe x 5/8"

1шт.

26

218422C1

BOLT

idler arm

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

2шт.

120388

.438 x 1.000 x .064

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.438 x 1.000 x .064

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4 cad p/t lock type 5

1шт.

21758R1

WASHER

.781 x 1.250 x .067 znd

2шт.

23041R1

WASHER

1.156 x 1.500 x .054

3шт.

27

555696R1

SPACER,3/4" Pipe x 5/8"

3/4 x 5/8 std-pipe

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

28

218558C1

SPRING

1шт.

29

214329C1

SUPPORT

ASSY, idler

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

30

218304C1

BAR

idler adj

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

31

214334C1

ANGLE

spring tie

1шт.

32

219135C1

CLAMP

BAR, idler mounting, .074 in. thick

1шт.

32

219134C1

CLAMP

BAR, idler mounting, .180 in. thick

1шт.
