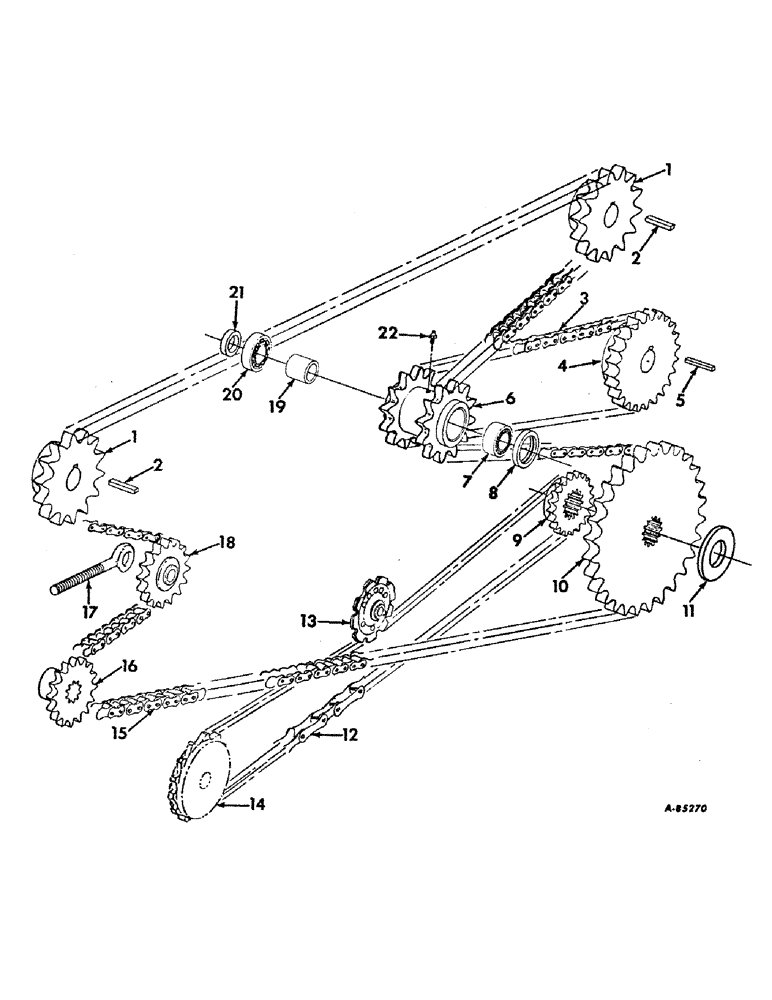

Запчасти Case IH 241 (A-11) - MAIN DRIVE, SERIAL NO. 7810 AND BELOW (14) - MAIN GEARBOX & DRIVE

1

208456C1

DRIVE SPROCKET

SPROCKET, upper belt drive

2шт.

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW, 3/8-16 x 1/2 znd hdls hex-soc set

2шт.

103411

SPLIT (COTTER), 3/16" x 2"

2шт.

22812R1

WASHER

1-15/32 x 2 x 16 ga znd

20шт.

2

Q63

KEY,3/8" Sq x 1 1/2", Par

3/8 x 1-1/2 sq parallel

2шт.

3

CHAIN ASSY, press roll drive, use 37 links from 10 ft roll marked 611362R91 plus 1 connecting link 574532R91

1шт.

574532R91

CLIP, SPRING

LINK, #60 single pitch connecting

1шт.

4

208459C2

DRIVE SPROCKET

SPROCKET, press roll

1шт.

22210R1

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 znd hlds hex-soc

1шт.

5

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

6

208457C2

DRIVE SPROCKET

SPROCKET, main drive and press roll drive

1шт.

7

119461R91

BEARING, ROLLER, CYL,25mm ID x 52mm OD x 20.64mm W

ASSY, sprocket, outer

1шт.

8

208633C1

OIL SEAL

brg oil

1шт.

9

208462C1

DRIVE SPROCKET

SPROCKET, pickup drive

1шт.

10

208461C1

DRIVE SPROCKET

SPROCKET, drive lower conveyor

1шт.

20705R1

WASHER

1.781 x 2.50 x .054 znd (or as required)

3шт.

21795R1

WASHER,1.78" ID x 2.5" OD x 0.03" Thk

1.781 x 2.50 x .027 znd (or as req.)

2шт.

11

388418C1

SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk

.781 x 3.2 x 1/4 ht

1шт.

27028R1

SCREW, 3/4-10 x 1-1/4 PHC hex-hd lock

1шт.

12

CHAIN, pickup drive, use 41 links from 10 ft roll marked 569089R91 plus 1 connecting link 456980R91 and 1 off-set link 456929R91

1шт.

456929R91

CHAIN LINK

LINK, #2050 double pitch offset

1шт.

456980R91

CHAIN LINK

LINK, #2050 double pitch connecting

1шт.

13

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, pickup idler

1шт.

589068R1

WASHER

.656 x 1.250 x .105 znd

4шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 znd sq-nk crg

1шт.

9413969

NUT,5/8"-11, GB

5/8 cad hex. lock

1шт.

14

SPROCKET, slip clutch, see pickup drive

1шт.

15

CHAIN ASSY, main drive, use 119 links from 10 ft roll marked 654437R91 plus 2 connecting links 654438R91 and 1 roller link 654440R91

1шт.

654438R91

LINK

#80 single pitch connecting

2шт.

654440R91

LINK

#80 single pitch roller

1шт.

16

SPROCKET, main drive, see main drive gear box

1шт.

17

208464C1

BOLT

EYEBOLT, idler adjusting

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex. jam

2шт.

18733R1

BOLT

3/4 x 2-1/2 znd sq-nk crg

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 cad hex. lock

1шт.

22767R1

WASHER

1-3/32 x 1-1/2 x 11 ga znd

1шт.

21758R1

WASHER

.781 x 1.250 x .067 znd (or as required)

2шт.

21211R1

WASHER

.781 x 1.500 x .164 znd

2шт.

18

208455C91

DRIVE SPROCKET

SPROCKET ASSY, main drive idler

1шт.

19

208458C2

SPACER

brg, inner

1шт.

20

280428C91

BEARING ASSY,0.9847" ID x 2.0472" OD x 0.5006"

ASSY, sprocker, inner

1шт.

21

208634C1

SPACER

brg, outer

1шт.

22

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tap lub

1шт.
