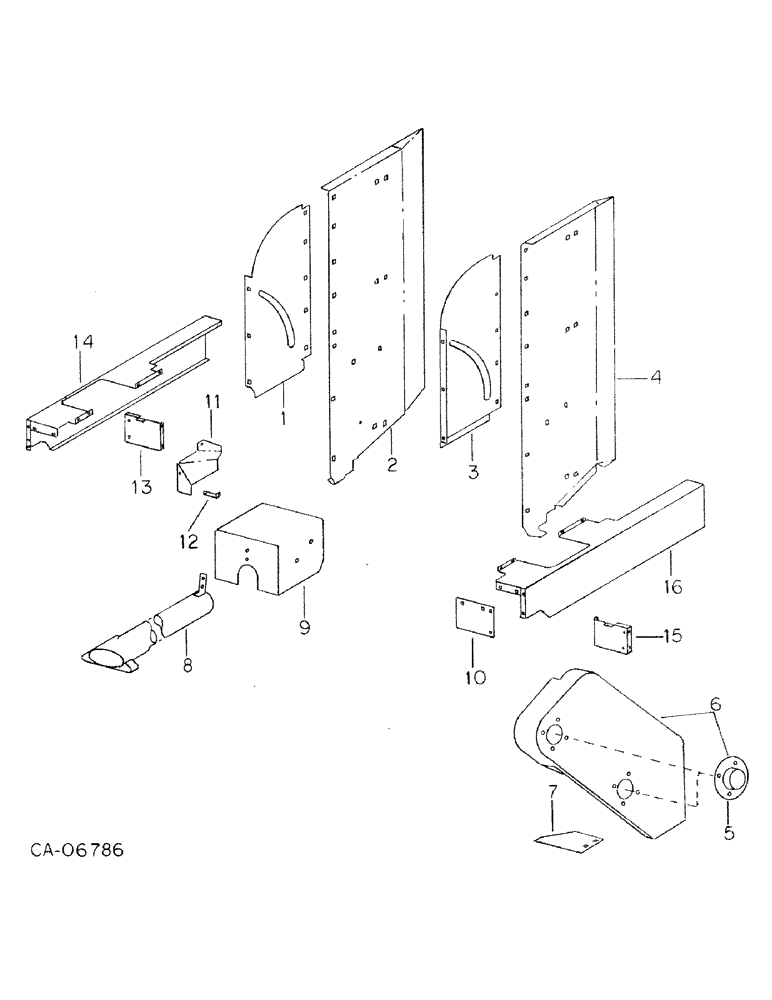

Запчасти Case IH 2400 (B-27) - SHIELDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

208611C1

SHIELD

cylinder RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

2

208609C4

SHIELD

inner RH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

7шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

9шт.

22859R1

WASHER

11/32 x 3/4 x 7 ga znd

1шт.

3

208610C1

SHIELD

cylinder LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

4

208608C4

SHIELD

inner LH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

7шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

9шт.

22859R1

WASHER

11/32 x 3/4 x 7 ga znd

1шт.

5

549152R1

COVER

reel shaft

2шт.

200084C1

RIVET

3/16 x .402 pop type

8шт.

6

219095C92

SHIELD

ASSY W/PRODUCT GRAPHIC MAIN DRIVE

1шт.

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

BOLT, 3/8-16 x 5/8 wing tap.

1шт.

7

210304C1

SHIELD

stripper end upper

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

2шт.

8

219047C91

TUBE

ASSY W/PRODUCT GRAPHIC, PTO shaft safety

1шт.

25178R1

BOLT, 3/8 x 3/4 dld type 1

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

473443R1

COTTER PIN

quick attachable cot.

1шт.

9

219007C91

COVER ASSY

W/PRODUCT GRAPHIC, clutch

1шт.

669637R1

SELF-TAP SCREW

5/16-18 x 1/2 znd self-tap washer type

4шт.

10

219299C1

PLATE ASSY.

PLATE, LH shield front

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4-20 x 5/8 znd sq-nk crg

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

6шт.

11

219006C91

SHIELD

W/PRODUCT GRAPHIC, RH tapered roll

1шт.

669637R1

SELF-TAP SCREW

5/16-18 x 1/2 znd self-tap. washer type

1шт.

12

218147C1

SUPPORT ASSY.

SUPPORT, mounting

1шт.

19570R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

13

219298C1

SUPPORT ASSY.

SUPPORT, side shield center RH

1шт.

27950R1

SELF-TAP SCREW,Hex Hd, 5/16" x 3/4"

SCREW, 5/16-18 x 3/4 h/whd tap. type "T"

2шт.

14

219294C1

SHIELD

RH side

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4-20 x 5/8 znd sq-nk crg

12шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

12шт.

15

219297C1

SUPPORT ASSY.

SUPPORT, side shield center LH

1шт.

27950R1

SELF-TAP SCREW,Hex Hd, 5/16" x 3/4"

SCREW, 5/16-18 x 3/4 h/whd tap. type "T"

2шт.

16

219307C1

SHIELD

ASSY, LH side

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4-20 x 5/8 znd sq-nk crg

9шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

9шт.
