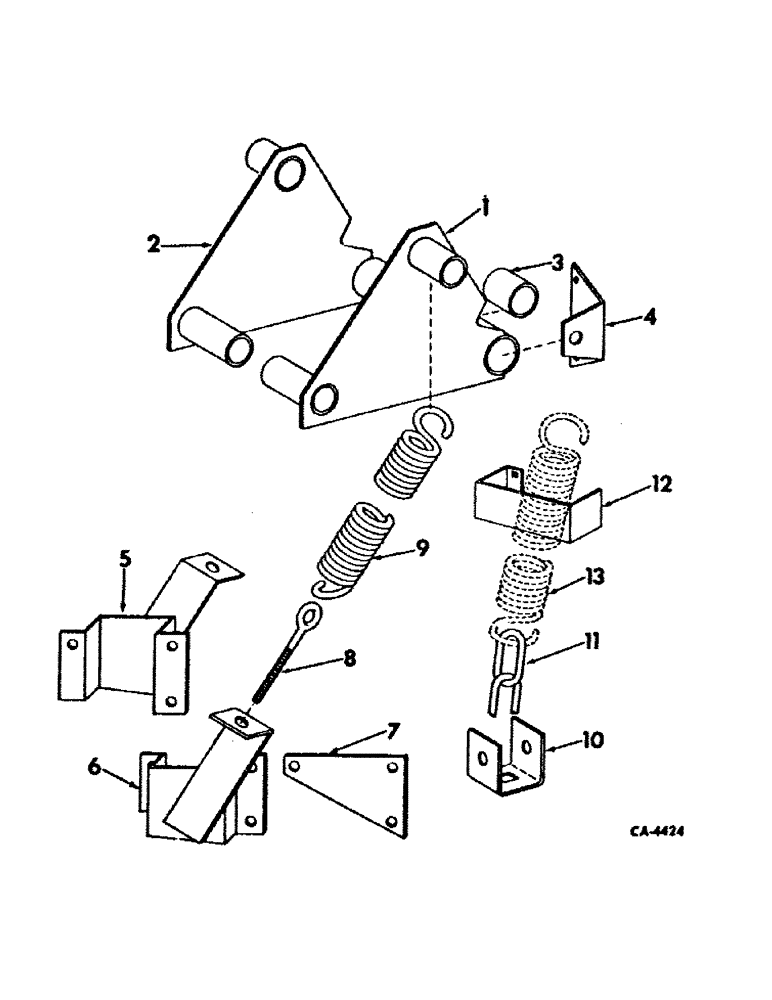

Запчасти Case IH 2400 (B-38) - DUAL SPRING ATTACHMENT (88) - ACCESSORIES

1

218107C3

PLATE ASSY.

PLATE ASSY, spring RH

1шт.

2

218104C3

PLATE

ASSY, spring LH

1шт.

3

214313C1

SPACER

torque arm pivot

2шт.

4

214308C1

SUPPORT

torque arm brace

2шт.

20919R1

BOLT,Hex, 3/4" - 10 x 9", Gr 5

3/4 x 9 type 5

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

5

214300C1

SUPPORT ASSY.

SUPPORT ASSY, spring anchor LH

1шт.

6

214301C1

SUPPORT ASSY.

SUPPORT ASSY, spring anchor RH

1шт.

7

214305C1

BAR

spring anchor

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

6шт.

8

218077C1

BOLT,5/8" - 11 x 9.60"

spring adj eye

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5

4шт.

9

488238R2

SPRING

bale density

2шт.

609376R1

WASHER

1.781 x 2.500 x .105

2шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

10

218349C1

YOKE

2шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 crg type 1

2шт.

11

CHAIN ASSY, spring anchor, use 11 links from 100 ft coil

2шт.

602032R1

HEADED PIN,3/8" x 2 7/16"

PIN, 3/8 x 2.438 pln hd type 5

2шт.

473443R1

COTTER PIN

quick attachable cot.

2шт.

12

218421C1

SUPPORT ASSY.

SUPPORT, spring guide

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

13

SPRING, see belt tightener

1шт.
