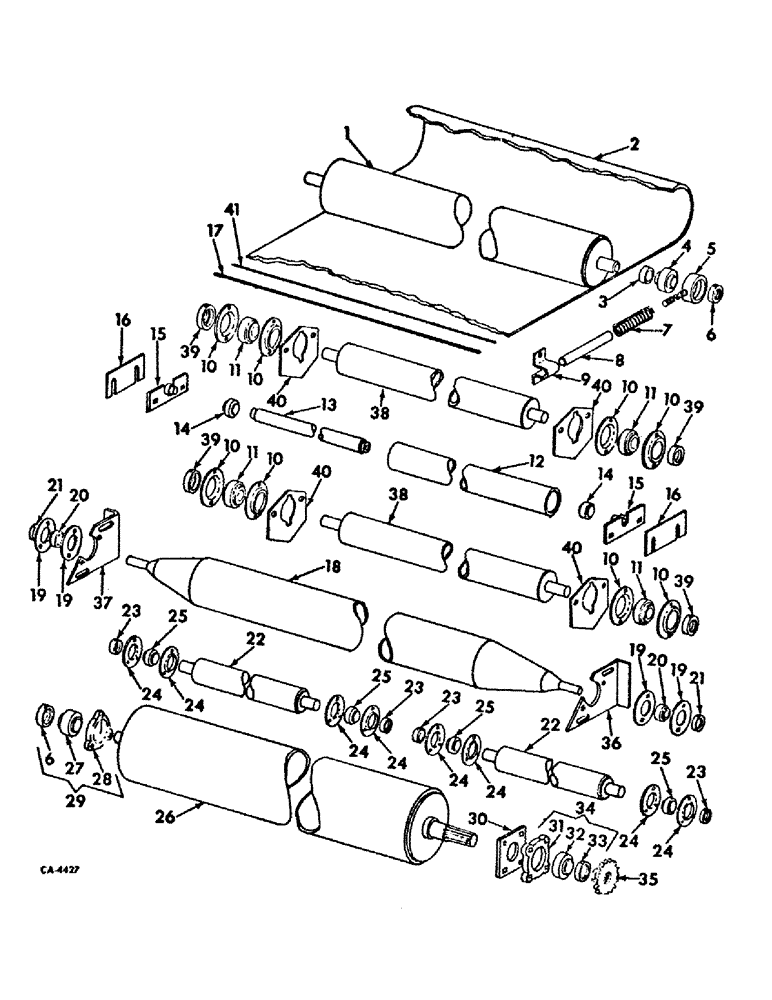

Запчасти Case IH 2400 (B-18) - LOWER CONVEYOR WITH ROLLERS (62) - PRESSING - BALE FORMATION
№
Артикул
Название
Примечание
Количество
1
208476C1
ROLL
ASSY, lower conveyor idler, roll POS. No. 15
1шт.
2
210480C92
CONVEYOR BELT,1524.00 mm W x 3095.00 mm L
BELT CONVEYOR , Lower 1524.00 mm W x 3095.00 mm L
1шт.
218322
WASHER,0.12" ID x 0.31" OD x 0.03" Thk
.125 x .312 x .025
2шт.
3
210302C1
SPACER
rear roller
2шт.
4
389440R91
BEARING ASSY,31.75mm ID x 72mm OD x 17mm W
ASSY
2шт.
5
208490C2
CASE
HOUSING ASSY, rear conveyor brg
2шт.
6
455104R11
COLLAR
W/SET SCREW
3шт.
7
15282BA
SPRING
rear conveyor
2шт.
8
219162C1
TUBE
ASSY, bearing housing screw
2шт.
614451R1
WASHER
1.031 x 1.750 x .105
2шт.
9
208372C1
BRACKET
spring anchor
2шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 type 1
4шт.
10
612031R1
FLANGED BEARING
roller brg
8шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
8шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
8шт.
12
208481C1
PIPE
roll POS. No. 13
1шт.
13
208483C1
SHAFT
idler roller
1шт.
18780R1
BOLT,Hex, 3/8"-16 x 1 3/4", G2
3/8 x 1-3/4 type 1
2шт.
14
208482C91
BEARING ASSY
roller idler
2шт.
15
218447C1
SUPPORT
ASSY, roller
2шт.
16
(Not used)
1шт.
17
210481C2
PIN
belt connector
1шт.
17
210321C1
TOOL
LACER, belt, not illustrated
1шт.
17
208790C1
PACKAGE
KIT, No. 4 clipper belt hook, see operator's manual
1шт.
18
213864C1
ROLLER
tapered, roll POS. No. 17
1шт.
19
612031R1
FLANGED BEARING
roller brg
4шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 crg type 1
2шт.
19006R1
PLOW BOLT,#3, 5/16" - 18 x 3/4", Gr 2
BOLT, 5/16 x 3/4 plow type 1
2шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 type 1
2шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
8шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
4шт.
21
455102R21
COLLAR
W/SET SCREW, brg locking
2шт.
22
218401C1
ROLLER
ASSY, front skewed, roll POS. No. 16
2шт.
23
455102R21
COLLAR
W/SET SCREW, brg locking
4шт.
24
462360R1
FLANGED BEARING
brg mounting, optional w/133066C1
8шт.
24
133066C1
FLANGE
brg mounting, optional w/462360R1
8шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 crg type 1
12шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
12шт.
26
208465C2
ROLL
ASSY, lower conveyor, roll POS. No. 11
1шт.
27
173735C91
BEARING ASSY
lower conveyor end RH
1шт.
28
HOUSING, not serviced separately, order 208475C91
1шт.
29
208475C91
BEARING ASSY
BEARING W/HOUSING, lower conveyor end RH
1шт.
550796R1
CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5
BOLT, 3/8 x 1-1/4 crg type 5
3шт.
9411655
LOCK NUT,3/8"-16, GB
NUT, 3/8 cad P/T lock type 5
3шт.
30
208474C1
PLATE
lower conveyor spacer LH
1шт.
466971R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
BOLT, 1/2 x 2 crg type 5
4шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
4шт.
31
HOUSING, not serviced separately, order 208473C91
1шт.
32
172408C91
BALL BEARING,49.21mm ID x 90mm OD x 23mm W
BEARING ASSY, lower conveyor end LH
1шт.
33
618032R11
COLLAR
W/SET SCREW, brg locking
1шт.
34
208473C91
BEARING ASSY
BEARING W/HOUSING, lower conveyor LH
1шт.
35
SPROCKET DRIVE, see main drive
1шт.
36
214274C1
SUPPORT
brg mounting LH
1шт.
37
214275C1
SUPPORT
brg mounting RH
1шт.
38
211285C1
TUBE,1.8" OD, 1628 mm Length
ASSY, idler roll, roll POS. 12 and No. 14
2шт.
39
455102R21
COLLAR
W/SET SCREW, brg locking
4шт.
40
214367C1
BAR
No. 12 & 14 roll mounting
4шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 crg type 1
8шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
8шт.
41
214299C1
ELECTRICAL WIRE
PIN, lower belt
1шт.
Выбрано товаров: 65
