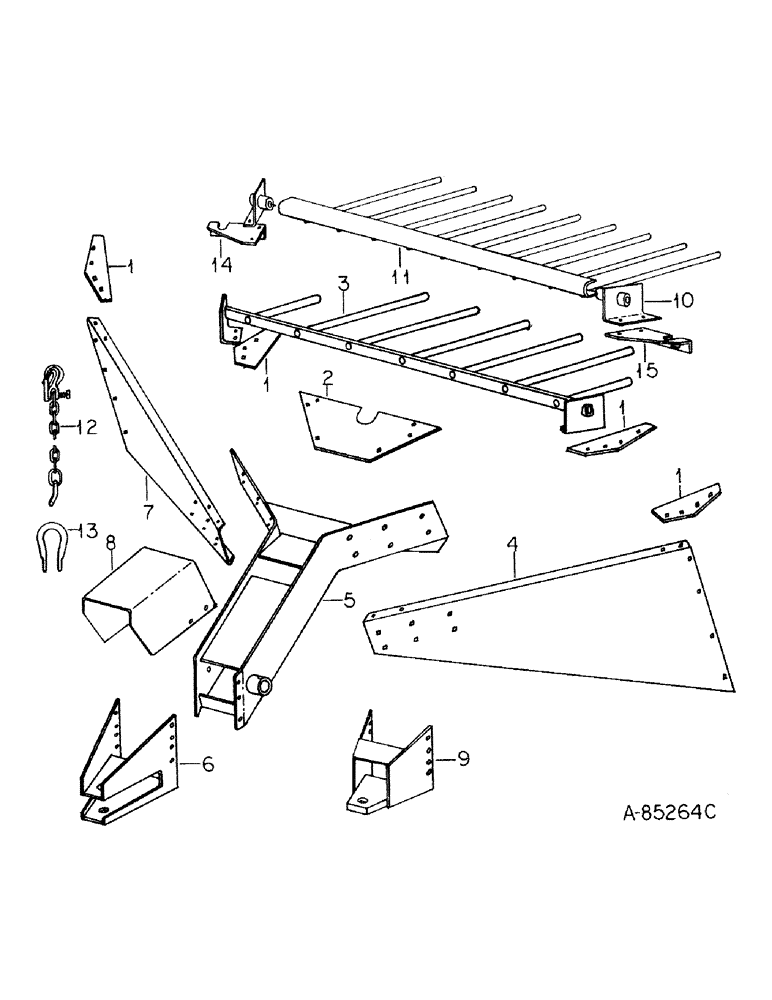

Запчасти Case IH 2400 (B-03) - HITCH AND PICKUP COVER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

208644C1

PLATE

frame tie

4шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

16шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

12шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1-1/2 znd sq-nk crg

8шт.

208770C1

NUT

1/2-13 znd hex lock

2шт.

2

213762C1

PLATE

upper cross

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

SCREW, 1/2-13 x 1 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

4шт.

3

(Not used in this application)

1шт.

4

219003C91

VALVE BLOCK

SECTION W/PRODUCT GRAPHIC, hitch side LH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

4шт.

5

208430C2

HITCH ASSY

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

8шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

12шт.

6

208627C1

HANGER

HITCH ASSY, adjustable

1шт.

20659R1

SCREW,Hex, 5/8" - 11 x 1 1/4", Gr 8, Full Thd

5/8 x 1-1/4 znd hex-hd cap

4шт.

208778C1

FLANGE NUT

5/8-11 znd hex lock

4шт.

7

219004C91

ASSEMBLY

SECTION W/PRODUCT GRAPHIC, hitch side RH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

8

219000C93

SHIELD

W/FOUR PRODUCT GRAPHICS, PTO brg box

1шт.

669637R1

SELF-TAP SCREW

5/16-18 x 1/2 znd hex-hd tap.

4шт.

9

208771C1

TUBE NUT

HITCH ASSY, adjustable, when ordered in lieu of regular, for European Market

1шт.

20659R1

SCREW,Hex, 5/8" - 11 x 1 1/4", Gr 8, Full Thd

5/8 x 1-1/4 znd hex-hd cap

4шт.

208778C1

FLANGE NUT

5/8-11 znd hex lock

4шт.

10

213674C2

SUPPORT

ASSY, pickup pivot

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

22245R1

WASHER, 17/32 x 1 x .164 znd

2шт.

11

213686C2

FINGER

ASSY, pickup

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 type 1

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad P/T lock type 5

4шт.

63550C92

PACKAGE, safety chain 10500 lbs.

1шт.

12

100682C3

CHAIN (AG)

CHAIN, safety, 10500 lbs

1шт.

13

148558C1

CLEVIS

safety chain, replaces S91773A

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8 pln P/T lock type 5

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 type 5

1шт.

18444R1

NUT,3/4"-10, GB

3/4 pln P/T lock type 5

1шт.

26512R1

WASHER

.781 x 2.000 x .164

1шт.

14

219250C1

SUPPORT ASSY.

SUPPORT, cover stop RH

1шт.

15

219249C1

SUPPORT ASSY.

SUPPORT, cover stop LH

1шт.

61913C92

PACKAGE

safety chain hardware, consists of ref no. 13 and attaching hardware

1шт.
