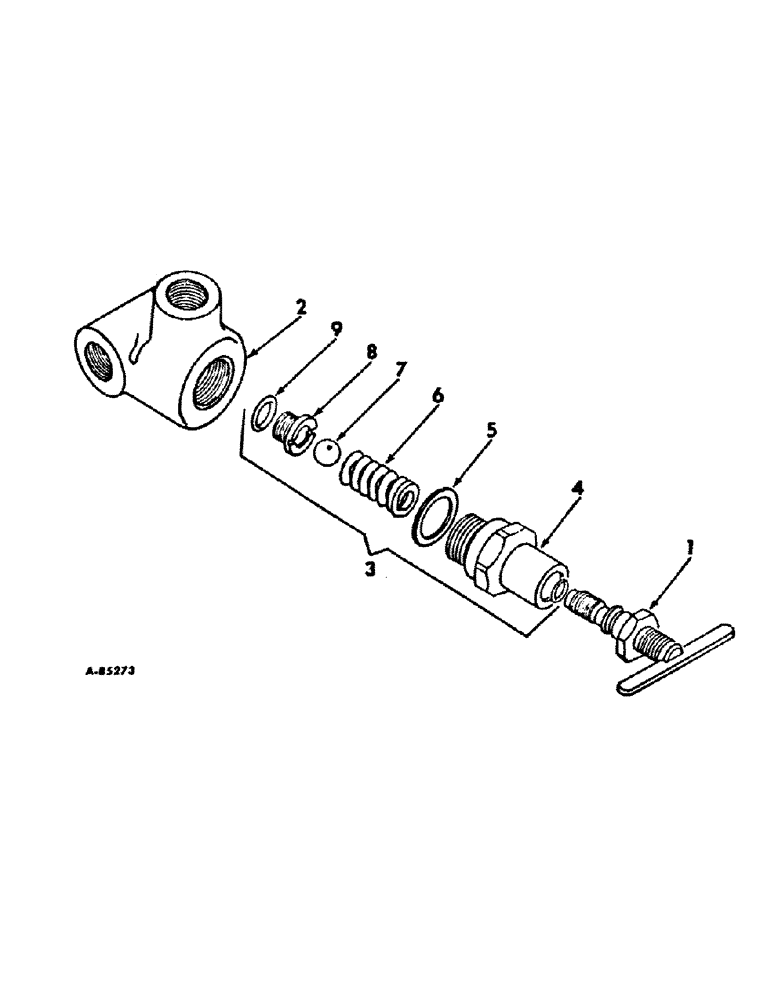

Запчасти Case IH 2400 (B-32) - RELIEF VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

208621C91

VALVE

ASSY, relief, consists of the following service parts

1шт.

1

213690C1

VALVE

ASSY, relief adjusting screw

1шт.

2

RELIEF VALVE, (not serviced separately), order 208621C91

1шт.

3

213691C91

GASKET KIT

PACKAGE, relief valve repair, consists of ref nos. 5, 6, 7, 8, 9 and o-ring, less ref no. 4

1шт.

4

213693C1

BODY

relief

1шт.

5

213692C1

GASKET

relief

1шт.

6

213694C1

SPRING

relief

1шт.

7

BALL, relief, (not serviced separately)

1шт.

8

SEAT, relief, (not serviced separately)

1шт.

9

O-RING, seal, (not serviced separately)

1шт.
