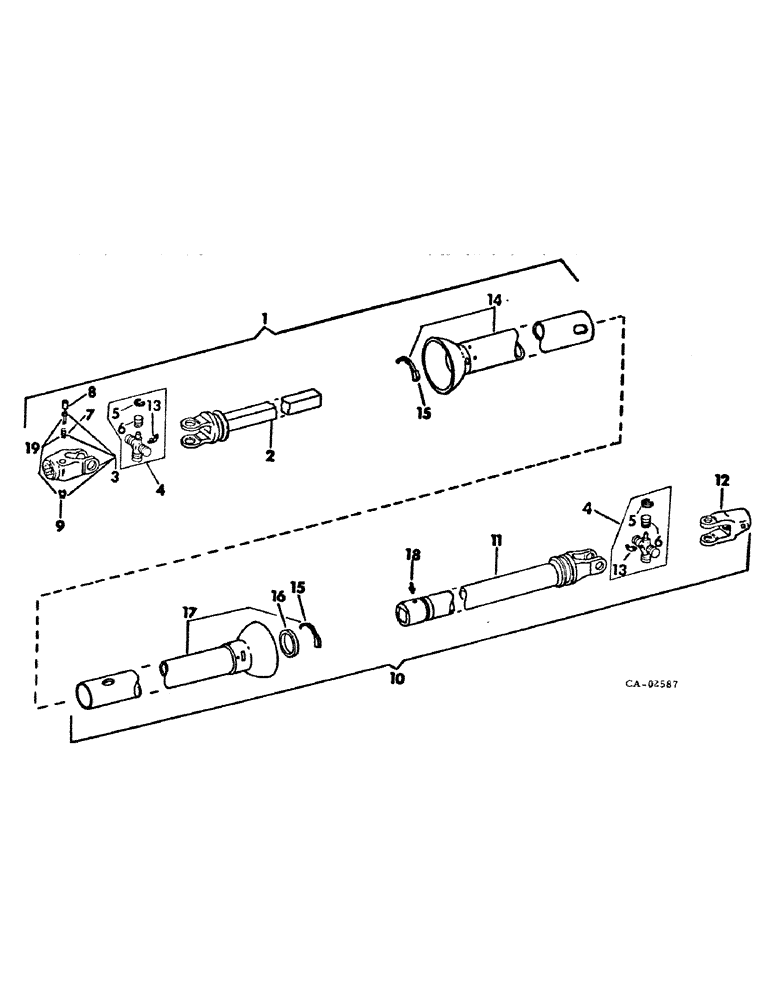

Запчасти Case IH 2400 (B-09) - UNIVERSAL JOINT DRIVE (31) - IMPLEMENT POWER TAKE OFF

1

549622R92

JOINT

ASSY, shielded single universal front half, tractor end, chain belt, or

1шт.

1

542775R92

SPARE PART

JOINT ASSY, shielded single universal front half, tractor end, Hayes Dana

1шт.

2

464915R1

YOKE

W/SHAFT, used with 549622R92, chain belt or Rockwell standard

1шт.

2

YOKE W/SHAFT, used with 542775R92, Hayes Dana, not serviced separately, furnished 542775R92

1шт.

3

487083R91

YOKE

ASSY, quick detachable

1шт.

4

609144R91

CROSS

KIT, center cross, Hayes Dana, used with 542775R92 and 542776R92

2шт.

4

480486R91

CROSS

KIT, center cross, chain belt, used with 549622R92 and 549623R92

2шт.

5

606177R1

SNAP RING

RING, snap, chain belt, used with 480486R91

8шт.

5

609154R1

RING

snap, Hayes Dana, used with 609144R91

8шт.

6

BEARING ASSY, cup, not serviced separately, order ref No. 4

8шт.

7

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

8

PIN, locking, not serviced separately, order ref No. 19

1шт.

9

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

10

549623R92

SEAL ASSY.

JOINT ASSY, shielded single universal rear half, implement end, chain belt, or

1шт.

10

542776R92

SHORT SHAFT

JOINT ASSY, shielded single universal rear half, implement end, Hayes Dana

1шт.

11

464918R91

TUBE

YOKE W/TUBE, chain belt or Rockwell standard, used with 549623R92

1шт.

11

542886R1

SHORT SHAFT

YOKE W/TUBE, Hayes Dana, used with 542776R92

1шт.

12

460902R1

YOKE

rear, chain belt or Rockwell standard, used with 549623R92

1шт.

12

609148R1

YOKE

rear, Hayes Dana, used with 542776R92

1шт.

210605C1

SET SCREW

1/2-20 x 1 hex-soc-hd set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-NF pln jam type 5

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight Hayes Dana 1/4"-28 NPT x .54" lg

2шт.

13

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg lub, chain belt

2шт.

14

549624R2

SHIELD

W/BEARING, outer, chain belt, used with 549622R92

1шт.

14

542885R2

KIT

SHIELD W/BEARING, outer, Hayes Dana, used with 542775R92

1шт.

15

542956R1

NYLON BEARING,0.312"

nylon, used with 542775R92 and 542776R92

6шт.

15

549626R1

BEARING

nylon, used with 549622R92 and 549623R92

4шт.

16

609151R1

NYLON BEARING,2.063" ID x 0.317"

center nylon

1шт.

17

549625R1

SHIELD

W/BEARING, inner, chain belt

1шт.

17

542887R1

SHIELD

W/BEARING, inner, Hayes Dana

1шт.

18

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 NF, 2 straight lub

1шт.

19

455346R21

PIN

ASSY, locking

1шт.

1253795C1

DECAL

PRODUCT GRAPHIC, caution

1шт.
