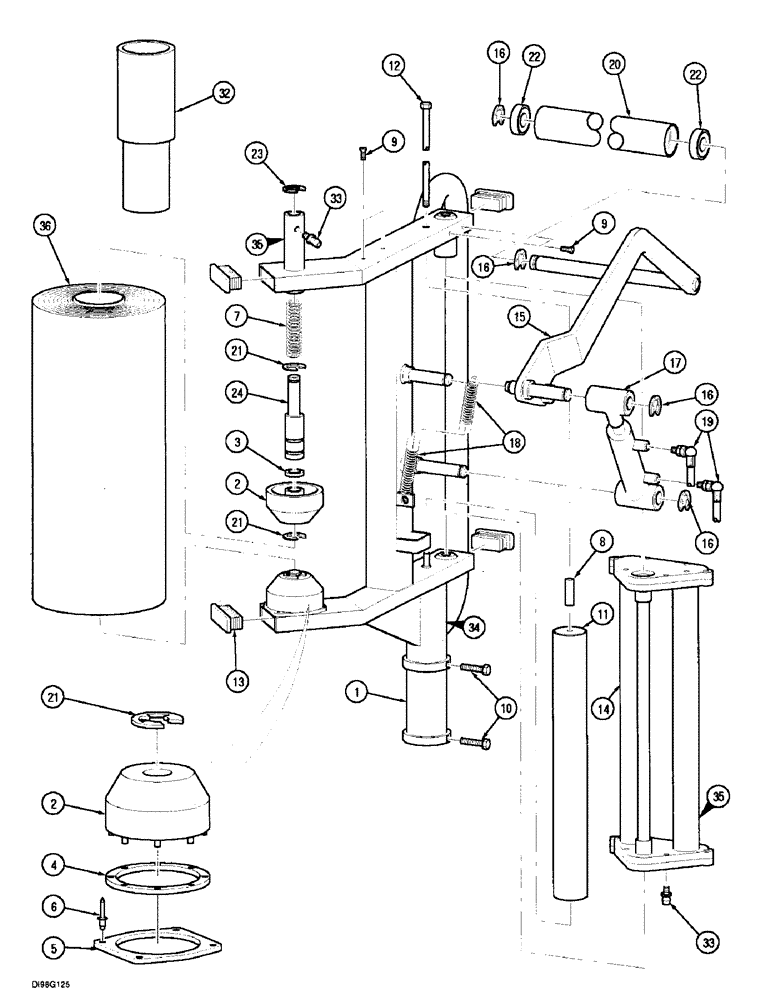

Запчасти Case IH 8650 (2-70) - FILM TENSIONER ASSEMBLY, ROUND/RECTANGULAR BALE, 8650, ELECTRONIC CONTROL, CABLE CONTROL

1

276613A1

FRAME

ASSY., ( - DBG0004009)

1шт.

NSS

NOT SOLD SEPARAT

CONE ASSY., ( - DBG0004025) order: 2 and 3

2шт.

1

311392A1

FRAME

ASSY., (DBG0004010 -)

1шт.

2

311386A1

CONE

(DBG0004026 -)

2шт.

3

311390A1

WASHER

SPACER, (DBG0004026 -)

1-2шт.

4

311388A1

DISC

friction, (DBG0004026 -)

1шт.

5

311387A1

PLATE

friction (DBG0004026 -)

1шт.

6

151-571

RIVET,Pop, 5/16" x 5/8"

(DBG0004026 -)

4шт.

7

276631A1

SPRING

1шт.

8

276628A1

SPACER

1шт.

9

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

4шт.

10

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

11

276626A1

ROLLER

1шт.

12

276624A1

ROD

1шт.

13

276617A1

PLUG

80 x 40 mm

4шт.

14

308389A1

TENSIONER

ROLL ASSY., 55

1шт.

15

276620A1

ARM

ASSY., ( - DBG0004009)

1шт.

15

311394A1

ARM

ASSY., (DBG0004010 -)

1шт.

16

800-1120

SNAP RING,M20, Ext

Retaining

5шт.

17

276622A1

CYLINDER

( - DBG0004009)

1шт.

17

311396A1

CYLINDER

(DBG0004010 -)

1шт.

276623A1

SEAL PACKAGE

KIT repair, For: 276622A1, 311396A1 Not Illustrated

1шт.

18

276627A1

COIL SPRING

1шт.

19

277626A1

HOSE

ASSY., 2000 mm

2шт.

20

311397A1

TUBE,20.5 mm ID, 48.3 mm OD, 300 mm Length

ROLLER ASSY.

1шт.

All, Not Europe

1шт.

21

800-1130

SNAP RING,M30, Ext

Retaining

3шт.

22

3164946R91

BALL BEARING

ball, if used

2шт.

23

800-1122

SNAP RING,M22, Ext

RING retaining, 22 mm

1шт.

24

276630A1

ROD

1шт.

32

284007A1

ADAPTER

Use With Film Width: 500 mm

1шт.

33

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

34

REF

INSTRUCTION

DECAL, See Figure: 2-92

1шт.

35

REF

INSTRUCTION

DECAL, See Figure: 2-92

1шт.

36

277658A1

PLASTIC

roll, 750 mm

1шт.
