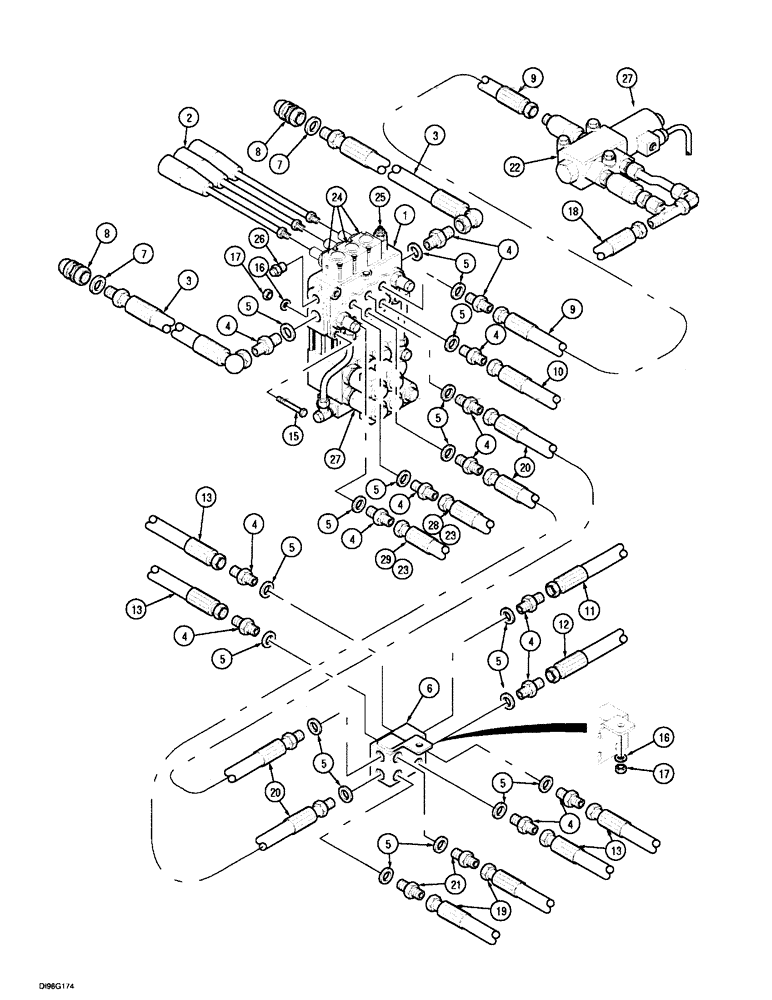

Запчасти Case IH 8650 (2-36) - HYDRAULIC SYSTEM, 8640, 8650, ELECTRONIC CONTROL

1

283851A1

VALVE

control, Includes: 2 and 24

1шт.

2

277873A1

CONTROL LEVER

3шт.

3

277033A1

HOSE

ASSY., 2000 mm

2шт.

4

277034A1

ADAPTER

1шт.

5

277035A1

SEAL

1шт.

6

277620A1

MANIFOLD

ASSY.

1шт.

7

277037A1

SEAL

1/2 in BSP

4шт.

8

277036A1

COUPLING, BREAK AWAY

2шт.

8a

291354A1

DUST CAP

Not Illustrated

2шт.

9

277624A1

HOSE

ASSY., 750 mm

2шт.

10

277894A2

HOSE

ASSY., 2100 mm hydraulic motor See Figure: 2-24

1шт.

11

277624A1

HOSE

ASSY., 750 mm tilt See Figure: 2-28

2шт.

12

277623A1

HOSE

ASSY., 520 mm tilt See Figure: 2-28

1шт.

13

277888A1

HOSE

ASSY., 2180 mm position See Figure: 2-30

4шт.

15

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

3шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

18

283852A1

HOSE

ASSY., 1750 mm hydraulic motor See Figure: 2-24

1шт.

19

277626A1

HOSE

ASSY., 2000 mm film tensioner See Figures: 2-34, 64 and 72

2шт.

20

277893A1

HOSE

ASSY., 350 mm

2шт.

21

277171A1

ADAPTER

2шт.

22

277629A1

VALVE

priority

1шт.

23

277933A1

HOSE

ASSY., 2450 mm valve, diverter #8650 See Figure: 2-44

2шт.

24

279793A1

HOUSING

3шт.

25

315416A1

VALVE

relief

1шт.

25

315565A1

PLUG

If Used

1шт.

26

315566A1

PLUG

1шт.

27

315415A1

SOLENOID

6шт.

28

277889A2

HOSE

ASSY., 2870 mm Lift #8640 See Figure: 2-42

1шт.

29

277891A2

HOSE

ASSY., 3370 mm Lift #8640 See Figure: 2-42

1шт.
