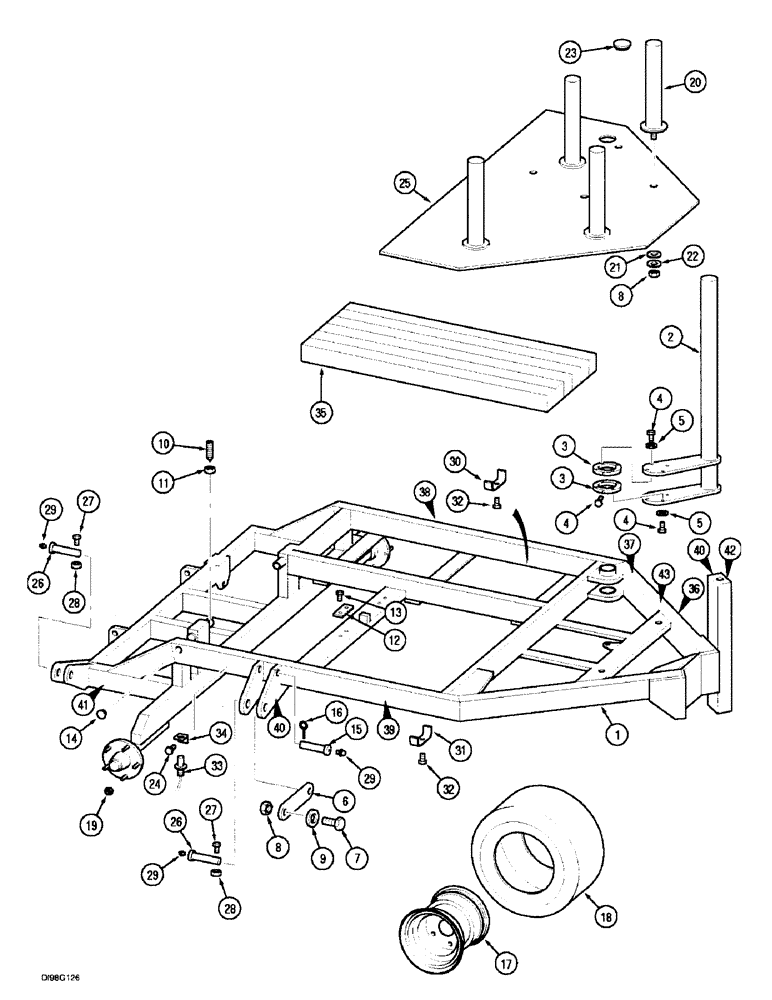

Запчасти Case IH 8640 (2-74) - CHASSIS, 8640, 8650

1

276377A1

FRAME

order: 313084A1 order also: 2-5 and 25A

1шт.

1

313084A1

FRAME

ASSY., replaces: 276377A1

1шт.

2

311391A1

ARM

extension

1шт.

3

311389A1

RING

2шт.

4

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

12шт.

5

892-11012

LOCK WASHER,M12

8шт.

6

276928A1

ARM

plate

1шт.

7

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

1шт.

8

832-10416

NUT,M16 x 2, Cl 8

5шт.

9

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

10

877-10816

SET SCREW,Hex Skt, M8 x 16mm, Cup Pt

M8 x 16

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

12

276380A1

WEAR PAD

1шт.

13

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

4шт.

14

276553A1

PLUG

1-3/4 in

2шт.

15

276386A1

HEADED PIN

1шт.

16

A30338

PIN

linch, 1/4 in

1шт.

17

284844A1

WHEEL

rim

2шт.

18

297528A1

TYRE/TIRE

2шт.

19

284843A1

WHEEL NUT

10шт.

20

313130A1

POST

TUBE ASSY., Replaces: 276388A1

4шт.

21

282133A1

SPECIAL WASHER

4шт.

22

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

23

276554A1

PLUG

60 mm If Used

3шт.

24

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

25

276383A1

PLATE

Used With : 276377A1

1шт.

25a

313131A1

PLATE

1шт.

26

276387A1

PIN

pivot

3шт.

27

614-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8, Full Thd

BOLT, M6 x 45; 8.8

1шт.

28

832-10406

NUT,M6 x 1, Cl 8

9шт.

29

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

30

313092A1

CLAMP

1шт.

31

313119A1

CLAMP

1шт.

32

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

33

REF

INSTRUCTION

SENSOR, See Figure: 2-52

1шт.

34

REF

INSTRUCTION

BRACKET, See Figure: 2-52

1шт.

35

NSS

NOT SOLD SEPARAT

WEIGHT

7шт.

36

220321A1

WARNING DECAL

warning, See Figure: 2-90

1шт.

37

REF

INSTRUCTION

DECAL speed, See Figure: 2-92

1шт.

38

REF

INSTRUCTION

DECAL model, left, See Figure: 2-90

1шт.

39

REF

INSTRUCTION

DECAL model, right, See Figure: 2-90

1шт.

40

REF

INSTRUCTION

DECAL lubrication, See Figure: 2-92

1шт.

41

REF

INSTRUCTION

DECAL air pressure, See Figure: 2-92

2шт.

42

REF

INSTRUCTION

DECAL warning, See Figure: 2-90

1шт.

43

REF

INSTRUCTION

DECAL warning, See Figure: 2-90

1шт.
