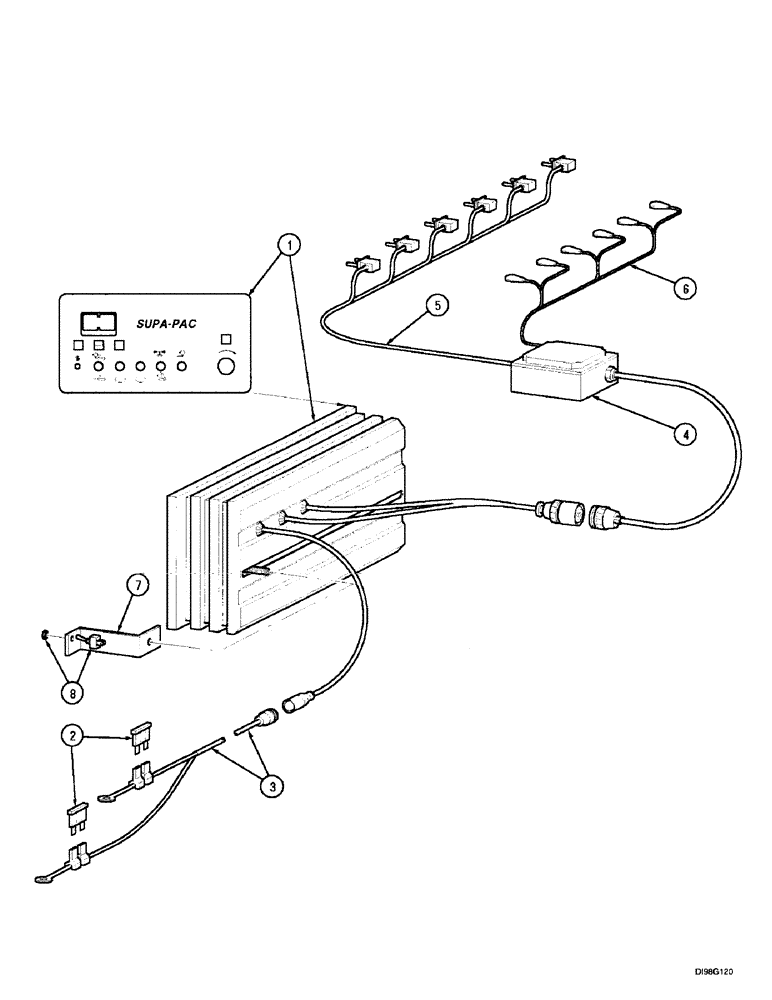

Запчасти Case IH 8640 (2-54) - ELECTRICAL COMPONENTS, 8630, 8640, 8650, ELECTRONIC CONTROL

1

277677A1

CONTROL

Includes : 1A - 3

1шт.

1a

302164A1

SENSOR

ASSY., frame Includes: 1C, Not Illustrated

1шт.

1b

302165A1

MAGNET

ASSY., Includes: 1C top frame #8630(1), 8640(2), 8650(2), Not Illustrated

1шт.

1c

NSS

NOT SOLD SEPARAT

BRACKET, Not Illustrated

1шт.

2

121414A1

FUSE,20A, Mini, Yellow

2шт.

3

CABLE power

1шт.

4

277679A1

BOX

terminal #8630 Includes: 5 and 6

1шт.

4

283850A1

BOX

terminal Includes: 5A and 6 #8640, 8650

1шт.

5

322764A1

HARNESS

1шт.

5a

315417A1

HARNESS

1шт.

6

315418A1

HARNESS

1шт.

7

291805A1

BRACKET

ectronic control, #8650

1шт.

8

283849A1

SWITCH

valve, diverter, #8650

1шт.
