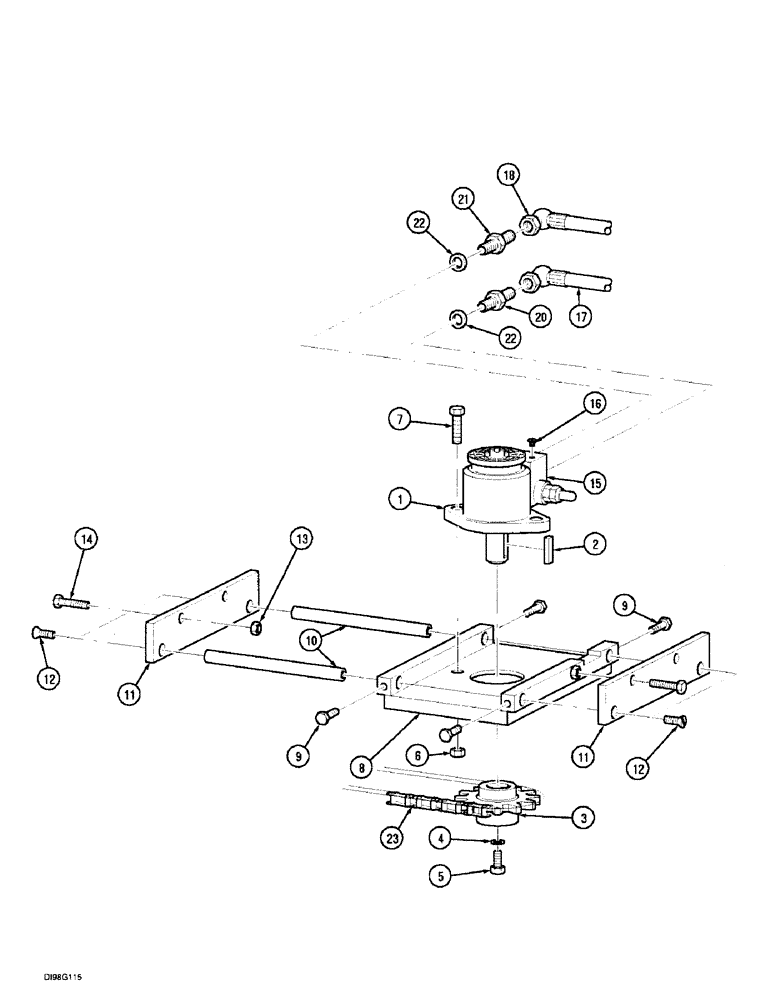

Запчасти Case IH 8640 (2-24) - HYDRAULIC MOTOR AND DRIVE

1

276642A1

MOTOR, HYDRAULIC

1шт.

1a

276643A1

SEAL KIT

Not Illustrated

1шт.

2

276644A1

KEY

7 x 8 x 30 mm

1шт.

3

276652A1

SPROCKET ASSY.

17T

1шт.

4

282130A1

SPECIAL WASHER

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

7

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

8

276647A1

SUPPORT

BRACKET ASSY.

1шт.

9

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

10

276650A1

BAR

2шт.

11

276651A1

MOUNTING PARTS

PLATE

2шт.

12

906037R1

HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9

M10 x 30

4шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

14

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

4шт.

15

276645A1

VALVE, PRESSURE RELI

EF

1шт.

16

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

M8 x 40

4шт.

17

277041A1

HOSE

ASSY., 2400 mm manual control #8630

1шт.

17

277632A1

HOSE

ASSY., 1260 mm electronic control #8630

1шт.

17

283852A1

HOSE

ASSY., 1750 mm electronic control #8640, 8650

1шт.

17

277894A2

HOSE

ASSY., 2100 mm cable control #8640, 8650

1шт.

18

277041A1

HOSE

ASSY., 2400 mm manual control #8630

1шт.

18

277630A1

HOSE

ASSY., 1320 mm electronic control #8630

1шт.

18

277894A2

HOSE

ASSY., 2100 mm electronic control #8640, 8650

1шт.

18

277894A2

HOSE

ASSY., 2100 mm cable control #8640, 8650

1шт.

20

277039A1

ADAPTER

1шт.

21

277040A1

ADAPTER

1шт.

22

277037A1

SEAL

1/2 in BSP

1шт.

23

NSS

NOT SOLD SEPARAT

CHAIN

1шт.

Use 79 Links of 1791D, 1 x 241-1315

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

10 ft

1шт.

241-1315

LINK, CONNECTING

No. 50, 5/8P

1шт.
