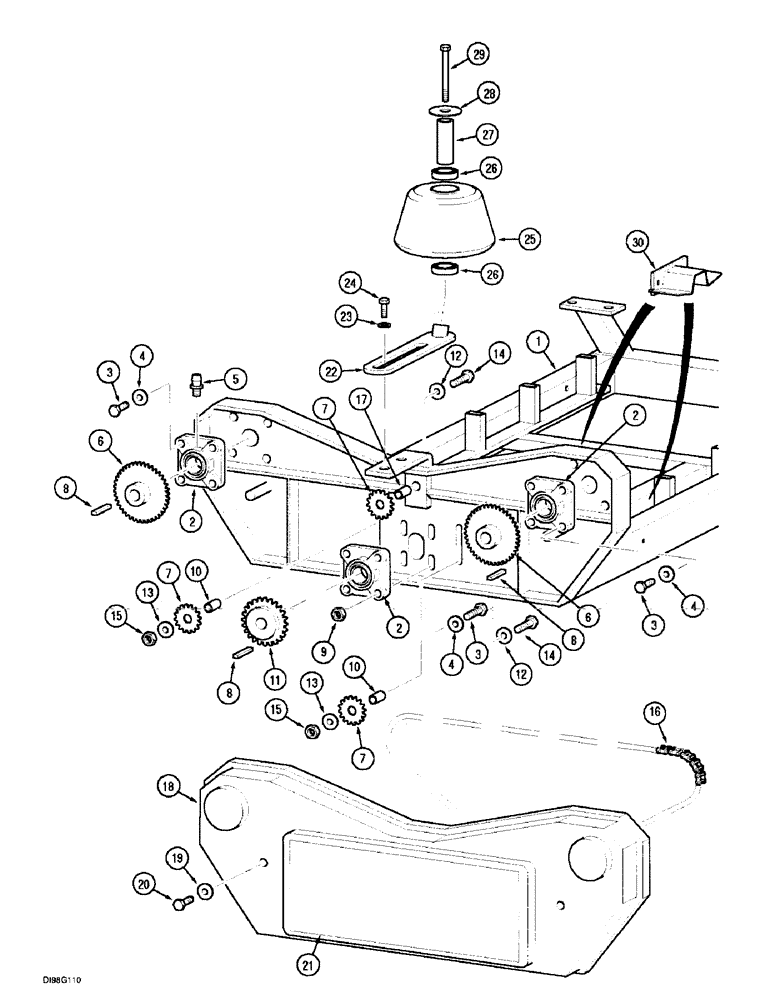

Запчасти Case IH 8640 (2-04) - TOP FRAME, 8630, 8640, ROUND BALE

1

276697A2

FRAME

ASSY.

1шт.

2

277483A1

BEARING ASSY,35 mm ID x 44.4 mm

FLANGE ASSY., Includes: 2A and 5

3шт.

2a

NSS

NOT SOLD SEPARAT

BEARING ball, Not Illustrated

1шт.

3

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

12шт.

4

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

12шт.

5

219-14

LUBE NIPPLE,1/4" NPTF

5шт.

6

276709A1

SPROCKET ASSY.

30T

2шт.

7

276706A1

SPROCKET ASSY.

17T

3шт.

8

276644A1

KEY

7 x 8 x 30 mm

3шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

10

276989A1

SPACER

2шт.

11

277520A1

SPROCKET ASSY.

23T Use With Film Width: 750 mm

1шт.

11

276710A1

SPROCKET ASSY.

15T Use With Film Width: 500 mm

1шт.

12

282133A1

SPECIAL WASHER

3шт.

13

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

14

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

3шт.

15

832-10416

NUT,M16 x 2, Cl 8

1шт.

16

NSS

NOT SOLD SEPARAT

CHAIN

1шт.

Use 167 Links of 1791D, 1 x 241-1315

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

10 ft

1шт.

241-1315

LINK, CONNECTING

No. 50, 5/8P

1шт.

17

276707A1

BUSHING

1шт.

18

276713A1

GUARD

1шт.

19

282131A1

SPECIAL WASHER

2шт.

20

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

21

255746A1

DECAL

See Figure: 2-90

1шт.

22

276712A1

PLATE

2шт.

23

895-11020

WASHER,M20 x 37 x 3

22 x 37 x 3 mm

6шт.

24

614-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

4шт.

25

276714A1

CONE

2шт.

26

3217763R91

BALL BEARING,29.99mm ID x 55mm OD x 13mm W

ball

4шт.

27

276715A1

SPINDLE

SPACER

2шт.

28

895-11020

WASHER,M20 x 37 x 3

22 x 37 x 3 mm

2шт.

29

814-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 8.8

M20 x 200; 8.8

2шт.

30

313094A1

BRACKET

#8630(1), 8640(2) See Figure: 2-12

1шт.
