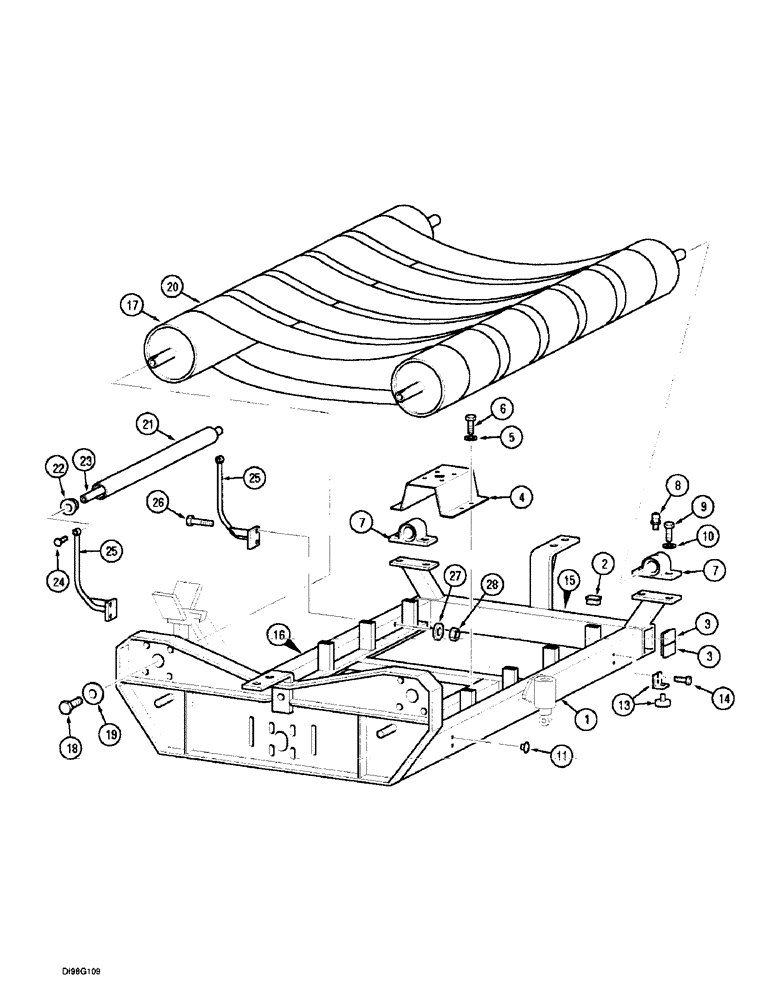

Запчасти Case IH 8640 (2-02) - TOP FRAME, 8630, 8640, ROUND BALE

1

276697A2

FRAME

ASSY.

1шт.

2

277984A1

PLUG

50 x 25 mm

1шт.

3

276561A1

PLUG

60 x 60 mm

1шт.

4

276716A1

COVER

top

1шт.

5

892-11012

LOCK WASHER,M12

4шт.

6

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

7

278130A1

BEARING HOUSING,35 mm ID x 46 mm

HOUSING ASSY., Includes: 7A

2шт.

7a

NSS

NOT SOLD SEPARAT

BEARING ball, Not Illustrated

1шт.

8

219-14

LUBE NIPPLE,1/4" NPTF

5шт.

9

614-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

4шт.

10

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

11

277987A1

PLUG

17.5 mm

1шт.

13

REF

INSTRUCTION

BRACKET ASSY., See Figure: 2-52

1шт.

14

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

15

REF

INSTRUCTION

decal load position, See Figure: 2-92

1шт.

16

REF

INSTRUCTION

decal tilt position, See Figure: 2-92

1шт.

17

276698A1

ROLLER

2шт.

18

614-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

Bolt, Hex, M16 x 25, 8.8, Full Thd

2шт.

19

282133A1

SPECIAL WASHER

4шт.

20

276700A1

BELT

5шт.

21

277207A1

TUBE,50 mm ID, 60.3 mm OD, 690 mm Length

roller

1шт.

22

277208A1

BUSHING

2шт.

23

277209A1

SHAFT

1шт.

24

864-12040

HEX SOC SCREW,M12 x 40mm, Cl 8.8

M12 x 40

2шт.

25

277211A1

BRACKET

left

1шт.

25

277212A1

BRACKET

right

1шт.

26

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

4шт.

27

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

28

832-10416

NUT,M16 x 2, Cl 8

4шт.
