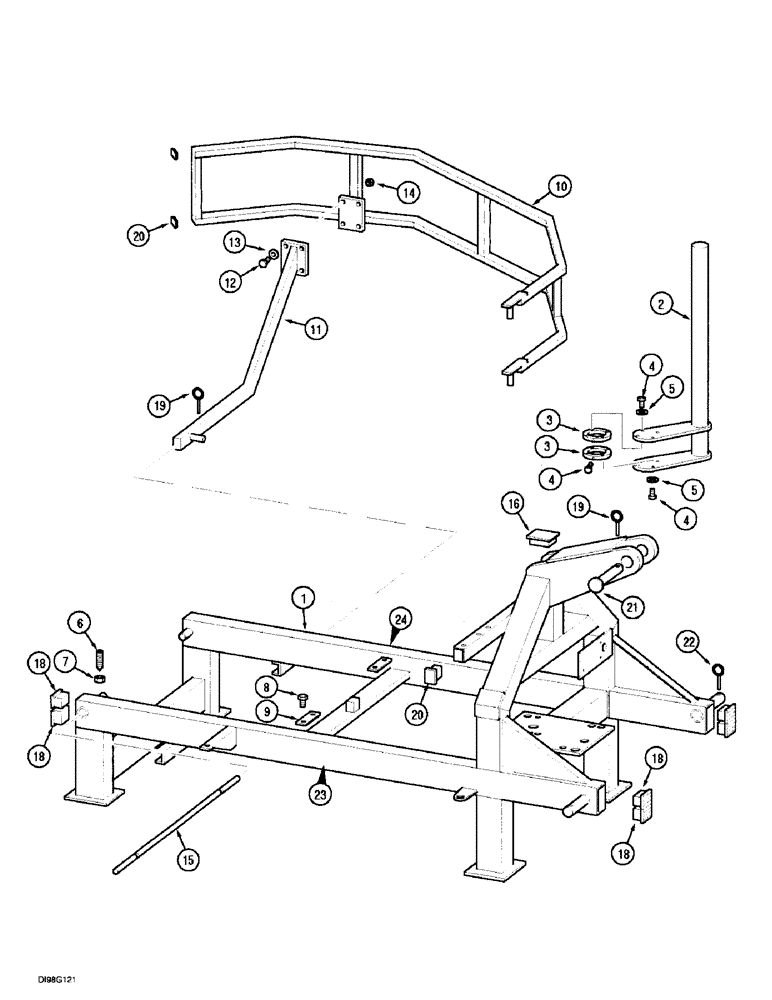

Запчасти Case IH 8630 (2-56) - CHASSIS, 8630

1

276943A1

FRAME

ASSY., order Refs. 1 - 5

1шт.

1

311382A1

FRAME

ASSY., Replaces: 276943A1

1шт.

2

311391A1

ARM

extension

1шт.

3

311389A1

RING

2шт.

4

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

12шт.

5

892-11012

LOCK WASHER,M12

8шт.

6

877-10816

SET SCREW,Hex Skt, M8 x 16mm, Cup Pt

M8 x 16

2шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

4шт.

9

276380A1

WEAR PAD

2шт.

10

276945A1

GUARD

left, illustrated

1шт.

10

276946A1

GUARD

right

1шт.

11

276948A1

SUPPORT

2шт.

12

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

8шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

15

276947A1

SHAFT

1шт.

16

276934A1

PLUG

100 x 50 mm

1шт.

18

276561A1

PLUG

60 x 60 mm

8шт.

19

A30338

PIN

linch 1/4 in

3шт.

20

277985A1

PLUG

25 x 25 mm

8шт.

21

276893A1

PIN

pivot

1шт.

22

A33509

PIN,11.18mm OD

Linch 7/16 in

2шт.

23

256996A1

DECAL

model right See Figure: 2-90

1шт.

24

256995A1

DECAL

model left See Figure: 2-90

1шт.

BRACKET, Not Illustrated See Figure: 2-52

1шт.

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Not Illustrated

2шт.

SENSOR, Not Illustrated See Figure: 2-52

1шт.
