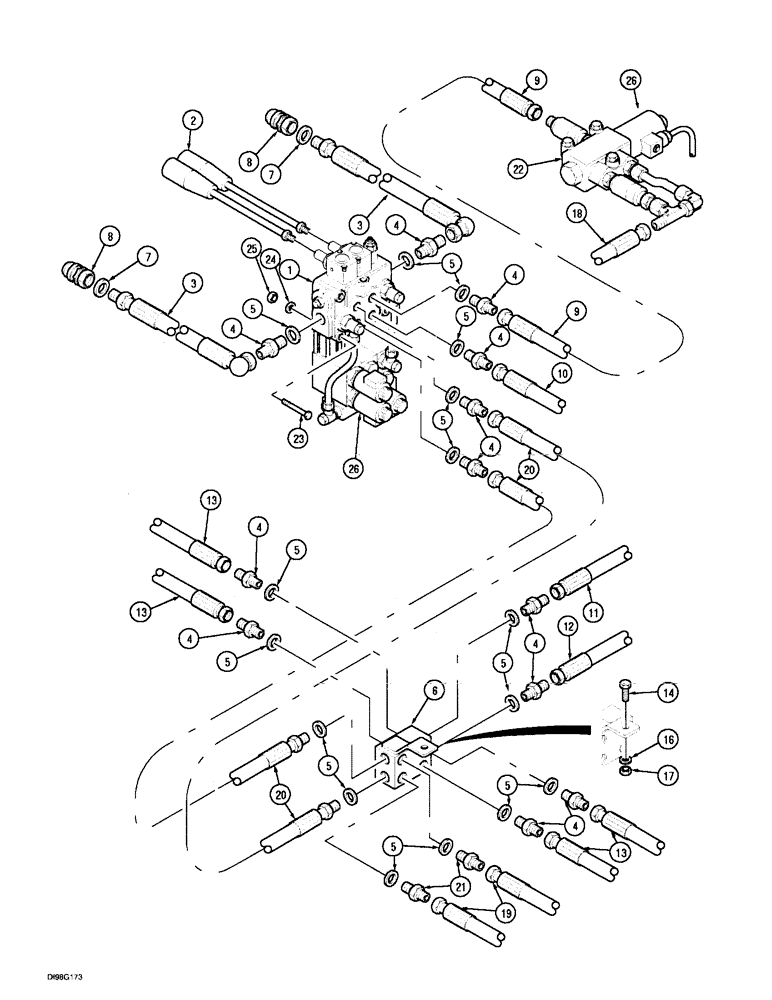

Запчасти Case IH 8630 (2-34) - HYDRAULIC SYSTEM, 8630, ELECTRONIC CONTROL

1

277613A1

VALVE

control, Includes: 2

1шт.

2

277873A1

CONTROL LEVER

2шт.

3

277033A1

HOSE

ASSY., 2000 mm supply and return

2шт.

4

277034A1

ADAPTER

12шт.

5

277035A1

SEAL

1шт.

6

277620A1

MANIFOLD

ASSY.

1шт.

7

277037A1

SEAL

1/2 in BSP

2шт.

8

277036A1

COUPLING, BREAK AWAY

2шт.

8a

291354A1

DUST CAP

Not Illustrated

2шт.

9

277635A1

HOSE

ASSY., 1080 mm

1шт.

10

277630A1

HOSE

ASSY., 1320 mm See Figures: 2-14 and 24

1шт.

11

277624A1

HOSE

ASSY., 750 mm See Figure: 2-28

1шт.

12

277623A1

HOSE

ASSY., 520 mm See Figures: 2-28 and 40

1шт.

13

277628A1

HOSE

ASSY., 1950 mm See Figure: 2-30

4шт.

14

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

18

277632A1

HOSE

ASSY., 1260 mm See Figure: 2-24

1шт.

19

277626A1

HOSE

ASSY., 2000 mm See Figure: 2-68

2шт.

20

277614A1

HOSE

ASSY., 1180 mm

2шт.

21

277171A1

ADAPTER

2шт.

22

277629A1

VALVE

priority

1шт.

23

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

3шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

26

315415A1

SOLENOID

4шт.
