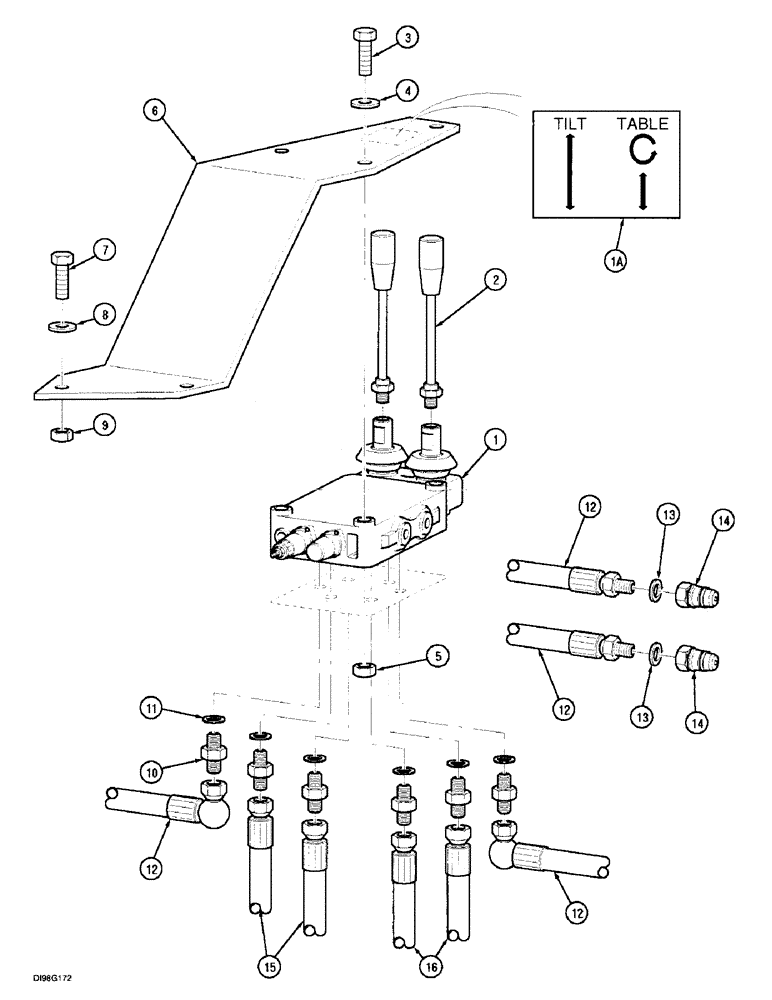

Запчасти Case IH 8630 (2-32) - HYDRAULIC SYSTEM, 8630, MANUAL CONTROL

1

277032A1

VALVE

ASSY., control

1шт.

1a

REF

INSTRUCTION

DECAL, See Figure: 2-92

1шт.

2

277873A1

CONTROL LEVER

2шт.

3

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

3шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

277042A1

ANCHOR

BRACKET

1шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

277034A1

ADAPTER

1шт.

11

277035A1

SEAL

1шт.

12

277033A1

HOSE

ASSY., 2000 mm supply and return

2шт.

13

277037A1

SEAL

1/2 in BSP

2шт.

14

277036A1

COUPLING, BREAK AWAY

2шт.

14a

291354A1

DUST CAP

Not Illustrated

2шт.

15

277041A1

HOSE

ASSY., 2400 mm hydraulic motor

2шт.

16

277038A1

HOSE

ASSY., 1280 mm tilt cylinder

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
