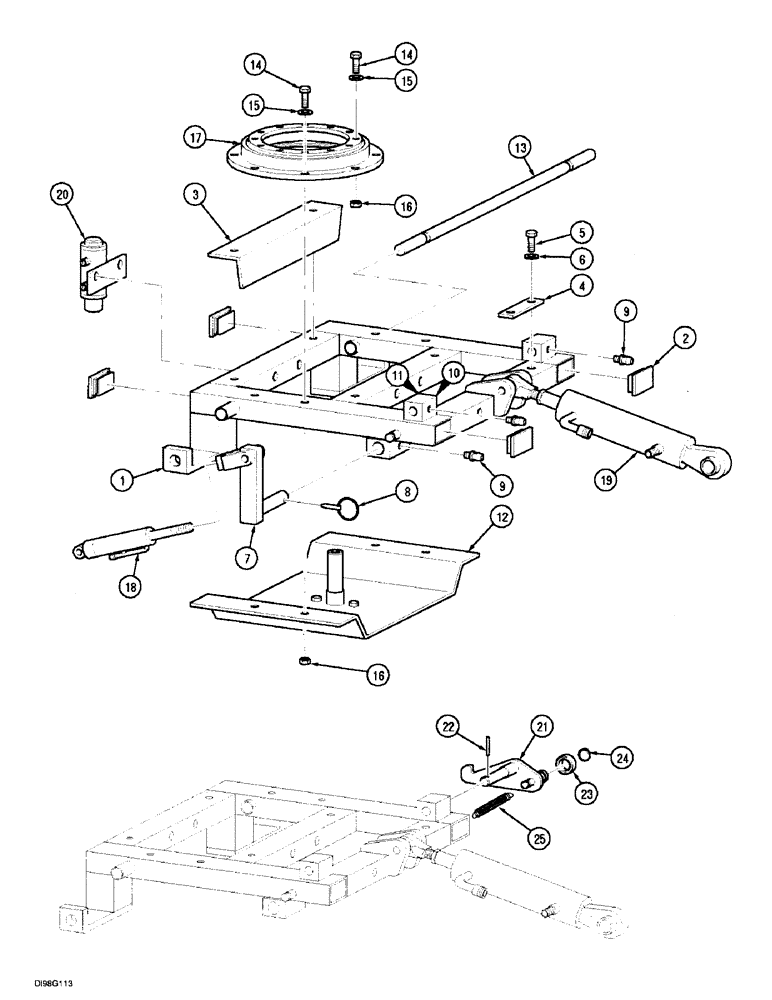

Запчасти Case IH 8630 (2-16) - PIVOT FRAME

1

276560A2

FRAME

ASSY.

1шт.

2

276561A1

PLUG

60 x 60 mm

4шт.

3

276571A1

GUARD

#8640, 8650

1шт.

4

276562A1

PLATE

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

7

276565A1

PIVOT ASSY.

right cable control #8640, 8650 electronic control #8630, 8640, 8650

1шт.

7

276564A1

PIVOT ASSY.

left cable control #8640, 8650 electronic control #8630, 8640, 8650

1шт.

8

A30338

PIN

linch, 1/4 in cable control #8640, 8650 electronic control #8630, 8640, 8650

2шт.

9

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

10

REF

INSTRUCTION

DECAL lubrication, See Figure: 2-92

1шт.

11

REF

INSTRUCTION

DECAL tilt position indicator, See Figure: 2-92

2шт.

12

276717A1

PLATE

bottom

1шт.

13

276947A1

SHAFT

#8630

1шт.

13

291343A1

SHAFT

#8640, 8650

1шт.

14

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

16шт.

15

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

16шт.

16

832-10416

NUT,M16 x 2, Cl 8

16шт.

17

276718A1

RING

slewing

1шт.

18

276566A1

CYLINDER

position cable control #8640, 8650 electronic control #8630, 8640, 8650 See Figure: 2-28

2шт.

19

276888A1

CYLINDER

tilt, See Figure: 2-28

1шт.

20

313095A1

CYLINDER

top frame, See Figure: 2-12

1шт.

21

276952A1

LATCH

ASSY., left

1шт.

21

276951A1

LATCH

ASSY., right

1шт.

22

838-5440

LOCK PIN,M4 x 40, Slotted

roll, 4 x 40 mm

2шт.

23

3164946R91

BALL BEARING

ball

2шт.

24

800-1120

SNAP RING,M20, Ext

Retaining

2шт.

25

276953A1

SPRING

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
