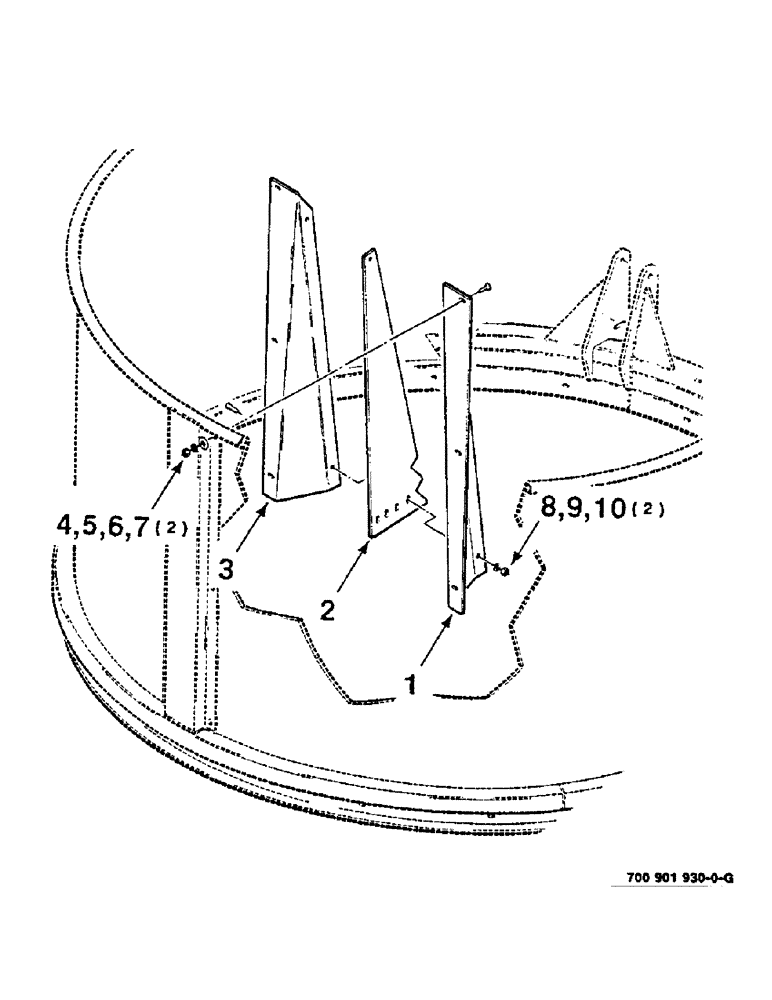

Запчасти Case IH 8610 (9-32) - SMALL BALE DRIVER KIT ASSEMBLY, HK50552 SMALL BALE DRIVER KIT COMPLETE (88) - ACCESSORIES

HK50552

SMALL BALE DRIVER KIT COMPLETE

1шт.

1

700108971

SUPPORT

- driver, left

1шт.

2

700108972

DIVIDER ASSY.

DRIVER - bale

1шт.

3

700108970

SUPPORT

- driver, right

1шт.

4

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
