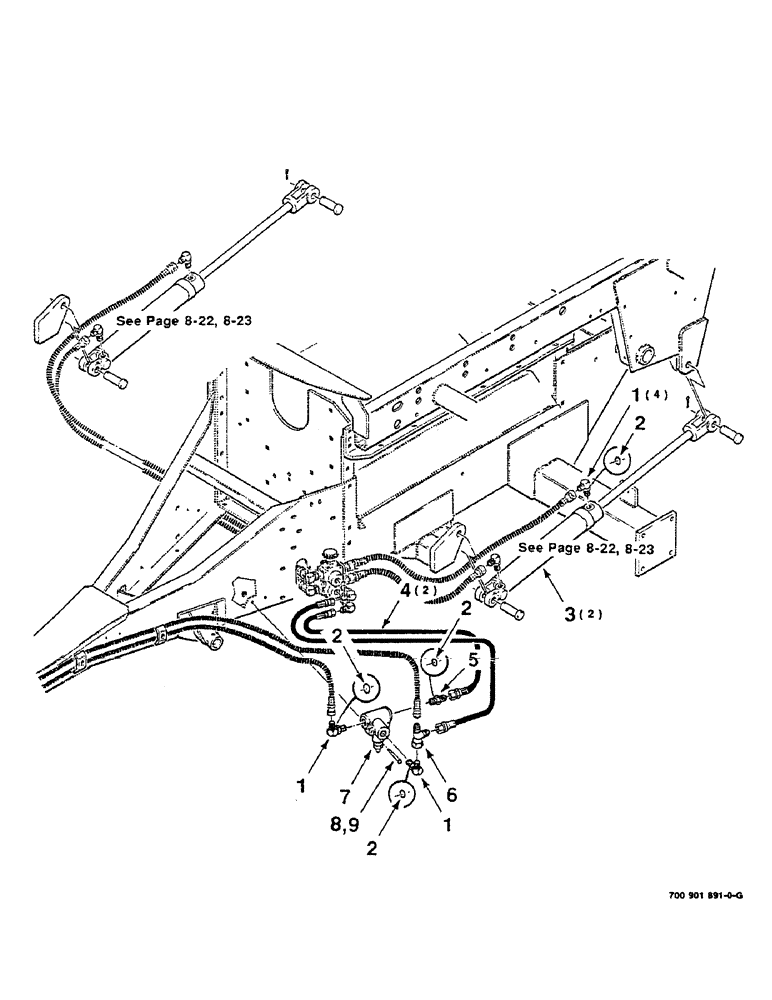

Запчасти Case IH 8610 (9-30) - HEAVY BALE KIT ASSEMBLY, SERIAL NUMBER CFH0036001 THRU CFH0036201 (88) - ACCESSORIES

HK50513

HEAVY BALE KIT COMPLETE

1шт.

1

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

(Incl. item 2) 90º, 9/16"-18, 37º x 3/4"-16, O-Ring

6шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

3

700708083

CYLINDER

- hydraulic

2шт.

4

7872559

HOSE

- hydraulic

2шт.

5

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR (Includes item 2)

1шт.

6

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

7

700708082

VALVE

- relief

1шт.

8

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

9

1703354

NUT

1/4-20 HFTLN GR/G

1шт.
