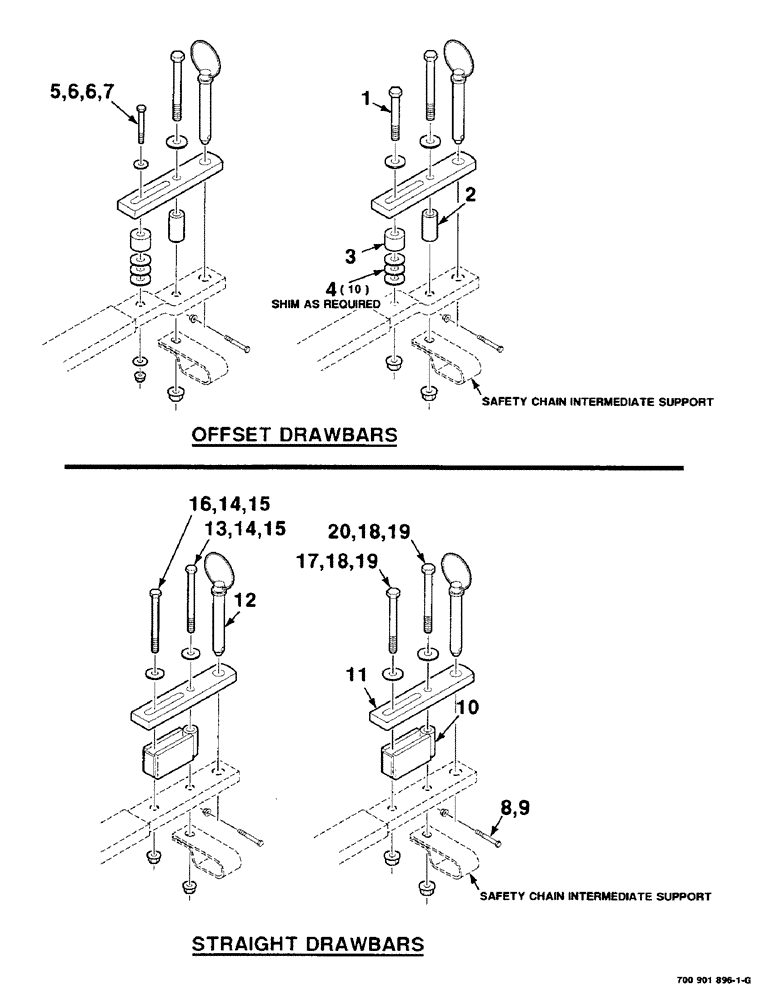

Запчасти Case IH 8610 (9-28) - CLEVIS DRAWBAR KIT, HK50515 CLEVIS DRAWBAR KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (88) - ACCESSORIES

HK50515

CLEVIS DRAWBAR KIT COMPLETE

1шт.

1

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

.75 X 5.5 UNC GR5 YZD

1шт.

2

700118633

SPACER

TUBE - spacer

1шт.

3

700127698

SPACER

1шт.

4

495-21081

WASHER,3/4"

10шт.

5

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

1шт.

6

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

2шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

8

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

10

700118632

SPACER

WA - drawbar

1шт.

11

700118635

STRAP

- drawbar

1шт.

12

700708748

PIN

- drawbar

1шт.

13

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

5/8-11 X 7-1/2 C

1шт.

14

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

2шт.

15

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

16

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

5/8-11 X 7 C

1шт.

17

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4-10 X 7 C

1шт.

18

700711166

WASHER

3/4 HARDENED WIDE PLAIN WASHER

2шт.

19

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

2шт.

20

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

3/4-10 X 7-1/2 B

1шт.
