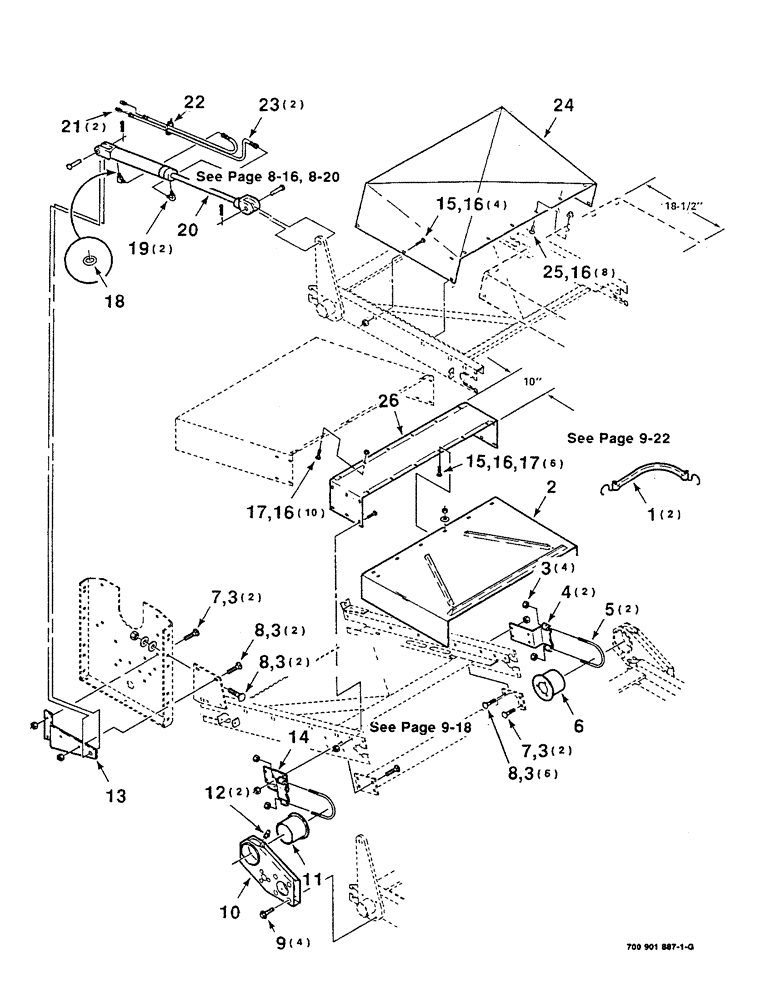

Запчасти Case IH 8610 (9-20) - CONVEYOR EXTENSION KIT, HK50517 CONVEYOR EXTENSION KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (88) - ACCESSORIES

HK50517

CONVEYOR EXTENSION KIT COMPLETE

1шт.

1

700708070

STRAP

WITH HOOKS

2шт.

2

700708072

APRON

- belting

1шт.

3

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

18шт.

4

700117518

SUPPORT

- extension, rear

2шт.

5

700117528

U-BOLT,U, 1/2" - 13 x 8.465"

1/2-13 U-BOLT

2шт.

6

700117509

PIVOT

- rear

1шт.

7

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

4шт.

8

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

10шт.

9

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

4шт.

10

700117521

SUPPORT

- pivot, front

1шт.

11

700117615

PIVOT

- front

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

13

700117525

SUPPORT

- cylinder

1шт.

14

700117988

SUPPORT

- extension, front

1шт.

15

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

10шт.

16

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

18шт.

17

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

18

738468

O-RING

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 18) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

20

700704318

CYLINDER

- hydraulic

1шт.

700712023

CYLINDER

- hydraulic

1шт.

21

1-7141

FITTING

- male, quick disconnect

2шт.

22

529070

CABLE TIE,368.3mm L

TIE - cable

1шт.

23

700708437

HOSE

- hydraulic

2шт.

24

700117512

CHUTE ASSY.

CHUTE - inner

1шт.

25

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

8шт.

26

700117513

CHUTE ASSY.

CHUTE - outer

1шт.
