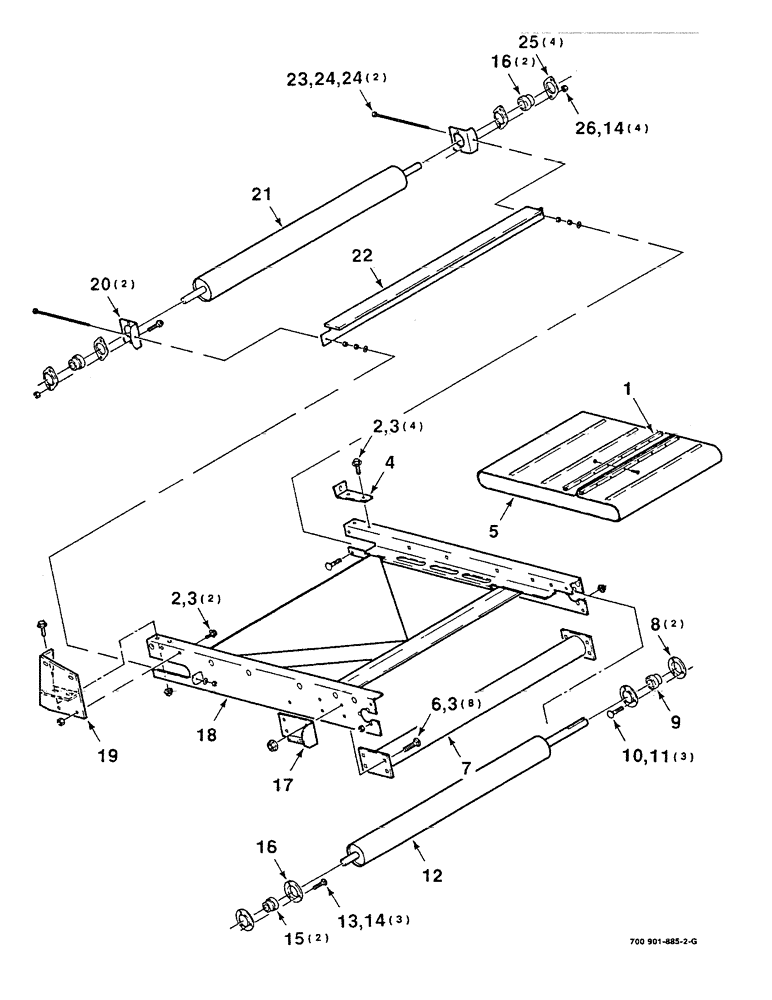

Запчасти Case IH 8610 (9-18) - MAIN CONVEYOR KIT, CONTINUED (88) - ACCESSORIES

1

1700145

COUPLING

COUPLER - draper

1шт.

2

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

6шт.

3

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

14шт.

4

700117527

ANGLE

- rear

1шт.

5

700707954

MAT

DRAPER

1шт.

6

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

8шт.

7

700117514

PIPE

1шт.

8

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

2шт.

9

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

1шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

12

700117427

ROLLER

- drive

1шт.

13

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

3шт.

14

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

7шт.

15

51200380

FLANGE

- bearing

2шт.

16

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

- special

3шт.

17

700117998

SUPPORT

1шт.

18

700117501

FRAME

CONVEYOR - primary

1шт.

19

700117530

SUPPORT

- intermediate

1шт.

20

700117494

SUPPORT

- tightener

2шт.

21

700117434

ROLLER

- idler

1шт.

22

700117491

SCRAPER

1шт.

23

113-225

BOLT,Hex, 3/8" - 16 x 5", Gr 5, Full Thd

2шт.

24

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

25

50591

FLANGE,52mm

- bearing

4шт.

26

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

4шт.
