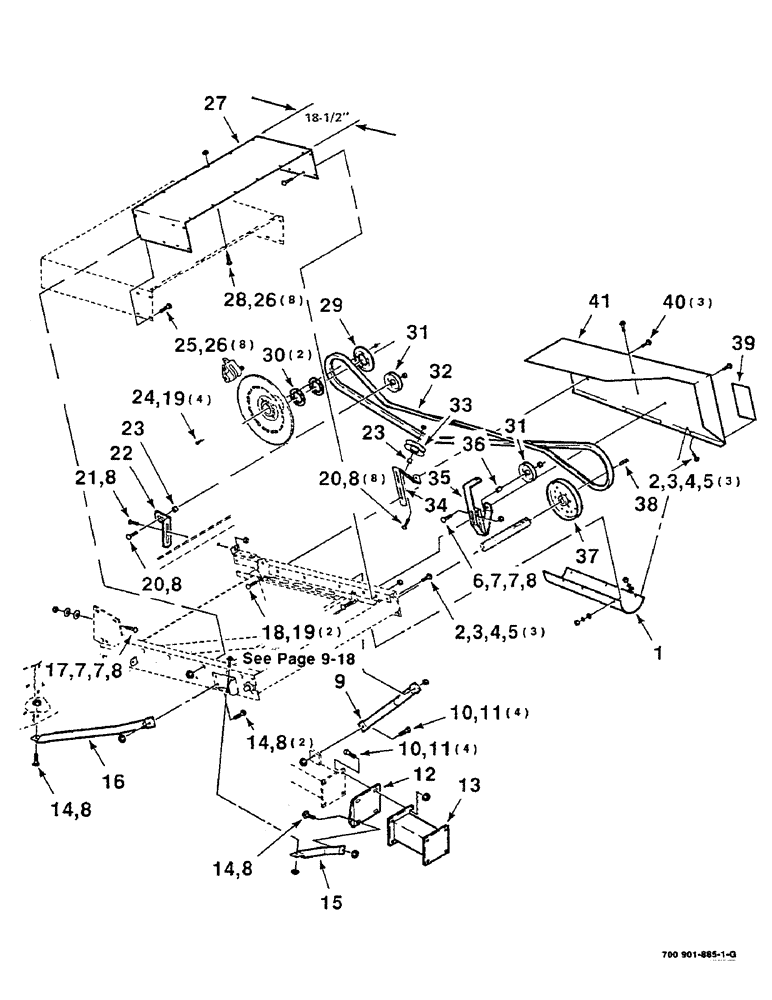

Запчасти Case IH 8610 (9-16) - MAIN CONVEYOR KIT, HK50516 MAIN CONVEYOR KIT COMPLETE, INCLUDES PAGE 9-18 (88) - ACCESSORIES

HK50516

MAIN CONVEYOR KIT COMPLETE

1шт.

1

700117535

GUARD

SHIELD - belting

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

5

425-105

NUT,5/16"-18, G5

6шт.

6

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

1/2-13 X 2-3/4 RHSNB

1шт.

7

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

16шт.

9

700117497

SUPPORT

- conveyor

1шт.

10

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

8шт.

11

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

8шт.

12

700117500

LARGE PLATE

PLATE - mounting, extension

1шт.

13

6282842

SPACER

EXTENSION - axle

1шт.

14

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

15

700117996

SUPPORT

BRACE - support, front

1шт.

16

700117498

SUPPORT

BRACE - corner

1шт.

17

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

1шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

19

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

20

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

9шт.

21

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

1шт.

22

700117617

SUPPORT

- idler

1шт.

23

6500433

BUSHING

SPACER

2шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

25

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

26

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

16шт.

27

700117496

GUARD

CHUTE - outer

1шт.

28

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

8шт.

29

700117607

SHEAVE

- half

1шт.

30

700117421

SPACER

- shim

2шт.

31

054007

PULLEY

IDLER - flat, Pulley

2шт.

32

55335

BELT

V-BELT, drive

1шт.

33

53553

SHAFT

V-IDLER

1шт.

34

700117534

SUPPORT

- idler and shield

1шт.

35

700117532

SUPPORT

- idler and shield

1шт.

36

51200203

SPACER, RING

SPACER

1шт.

37

700707965

PULLEY

SHEAVE - driven

1шт.

38

61424

KEY

1/4 X 1/4 X 1-1/4 GIB KEY

1шт.

39

7078777

REFLECTOR

DECAL

1шт.

40

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8-16 X 1/2 HWHMS

3шт.

41

700117536

GUARD

SHIELD - belt

1шт.
