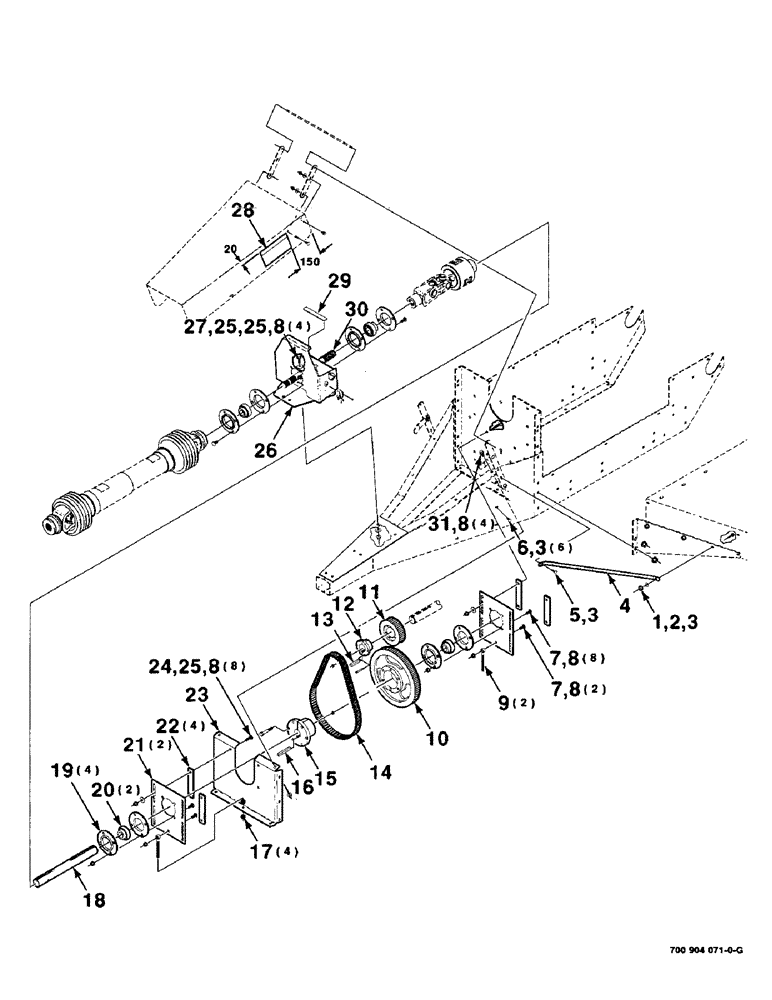

Запчасти Case IH 8610 (9-12) - BELT DRIVE SPEED UP KIT, SERIAL NUMBER CFH0096512 AND LATER (88) - ACCESSORIES

HK50915

BELT DRIVE SPEED UP KIT COMPLETE

1шт.

1

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

1шт.

2

495-21044

WASHER,3/8"

1шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

4

700120801

SUPPORT

- shield

1шт.

5

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

7

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

10шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

26шт.

9

51200338

BOLT

- eye

2шт.

10

700709679

SPROCKET ASSY.

SPROCKET - cog

1шт.

11

700709681

SPROCKET ASSY.

SPROCKET - cog

1шт.

12

700709839

BUSHING

- hub

1шт.

13

61879

KEY

1/2 X 2 KEY

1шт.

14

700709676

BELT,37.00 mm W

Cog, Drive 37.00 mm W

1шт.

15

700709682

BUSHING

- hub

1шт.

16

6595805

BUCKET TOOTH KEY

1/2 X 4.016 KEY

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

18

700117982

SHAFT

1шт.

19

714360

FLANGED BEARING

FLANGE

4шт.

20

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - spherical

2шт.

21

700117981

PLATE

- bearing

2шт.

22

700117980

STRAP

- spacer

4шт.

23

700117997

SUPPORT

- front

1шт.

24

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

8шт.

25

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

16шт.

26

700136012

SUPPORT

WA - front

1шт.

27

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

4шт.

28

700711665

DECAL

- notice

1шт.

29

6805055

SEAL

(10 foot bulk)

1шт.

30

700136008

SHAFT

1шт.

31

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

4шт.
