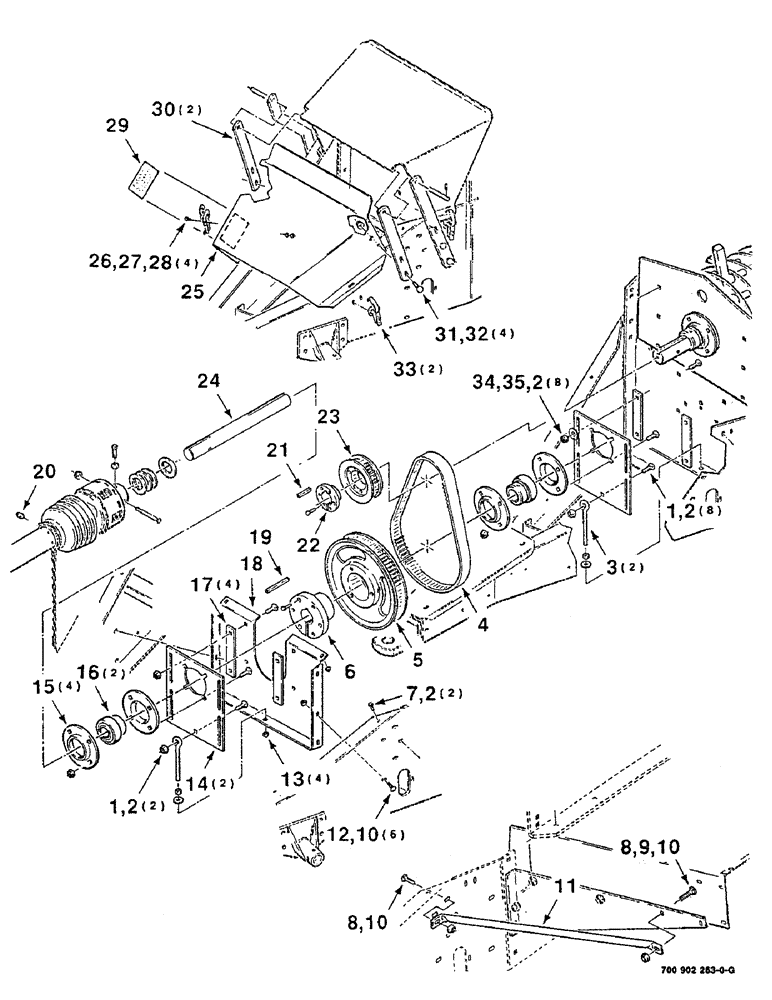

Запчасти Case IH 8610 (9-10) - BELT DRIVE SPEED UP KIT, SERIAL NUMBER CFH0036001 THRU CFH0096511 (88) - ACCESSORIES
№
Артикул
Название
Примечание
Количество
HK50571
BELT DRIVE SPEED UP KIT COMPLETE
1шт.
1
433-820
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 X 1-1/4 RHSNB
10шт.
2
231-5348
FLANGE NUT,Flg, 1/2"-13
1/2-13 HFTLN GR/G
20шт.
3
51200338
BOLT
EYEBOLT
2шт.
4
700709676
BELT,37.00 mm W
Cog 37.00 mm W
1шт.
5
700709679
SPROCKET ASSY.
SPROCKET - cog
1шт.
6
700709682
BUSHING
HUB - tapered
1шт.
7
360-816
BOLT,Hex, 1/2" - 13 x 1", Gr 8
1/2-13 X 1 HFS GR8
2шт.
8
121-237
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
3/8-16 X 1-1/4 HFS GR8
2шт.
9
495-21044
WASHER,3/8"
1шт.
11
700120801
SUPPORT
BRACE - chute
1шт.
12
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3/8-16 X 1 RHSNB
6шт.
13
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
4шт.
14
700117981
PLATE
- bearing
2шт.
15
714360
FLANGED BEARING
FLANGE - bearing
4шт.
16
712158
SPHERICAL BEARING,2" ID x 100 mm OD
BEARING - spherical
2шт.
17
700117980
STRAP
- shield
4шт.
18
700117997
SUPPORT
- front, bearing
1шт.
19
6595805
BUCKET TOOTH KEY
1/2 X 1/2 X 4 KEY
1шт.
20
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
1шт.
21
61879
KEY
1/2 X 1/2 X 2-1/2 KEY
1шт.
22
700709839
BUSHING
HUB - tapered
1шт.
23
700709681
SPROCKET ASSY.
SPROCKET - cog
1шт.
24
700117982
SHAFT
JACKSHAFT
1шт.
25
700120802
SHIELD
- drive
1шт.
26
340-1108
SCREW,Cross Pan Hd, #10-24 x 1/2"
#10-24 X 1/2 CRPHMS
4шт.
27
492-11010
LOCK WASHER,#10
WASHER, LOCK, #10
4шт.
28
225-14110
NUT,#10-24
4шт.
29
700711665
DECAL
- notice
1шт.
30
700120803
STRAP
- shield
2шт.
31
433-512
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
4шт.
32
232-5315
FLANGE NUT,Flg, 5/16"-18
5/16-18 HFTLN GR/G
4шт.
33
700706849
LATCH
- fastener
2шт.
34
433-828
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
1/2-13 X 1-3/4 RHSNB
8шт.
35
700711557
WASHER
1/2 HARDENED WIDE PLAIN WASHER
8шт.
Выбрано товаров: 36
