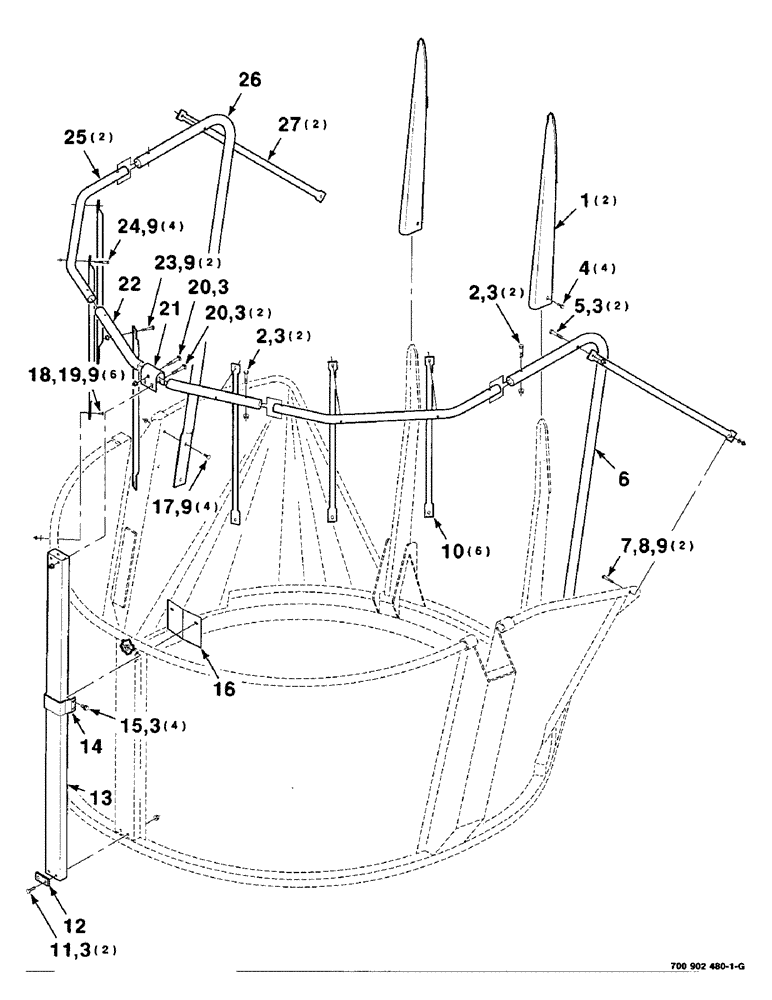

Запчасти Case IH 8610 (9-06) - LARGE SQUARE BALE KIT, HK50585 LARGE SQUARE BALE KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (88) - ACCESSORIES

HK50585

LARGE SQUARE BALE KIT COMPLETE

1шт.

1

700122855

TINE

WA - extension

2шт.

2

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

4шт.

3

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

15шт.

4

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 X 1 HWHTCTS

4шт.

5

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

2шт.

6

700122863

PIPE

- rear, left

1шт.

7

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

18шт.

10

700122857

PIPE

- wall

6шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

12

700122848

PLATE

- support

1шт.

13

700122854

BEAM

- center

1шт.

14

700122847

CLAMP

1шт.

15

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

4шт.

16

700122865

PLATE

- cover

1шт.

17

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

19

700710049

WASHER

3/8 FENDER WASHER

6шт.

20

433-852

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/4", Gr 5

1/2-13 X 3-1/4 RHSNB

3шт.

21

700122858

CLAMP

1шт.

22

700122862

PIPE

- rail, center

1шт.

23

433-644

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 RHSNB

2шт.

24

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8-16 X 2-1/4 RHSNB

4шт.

25

700122860

PIPE

- rail, side

2шт.

26

700122864

PIPE

- rear, right

1шт.

27

700122859

PIPE

- brace, rear

2шт.
