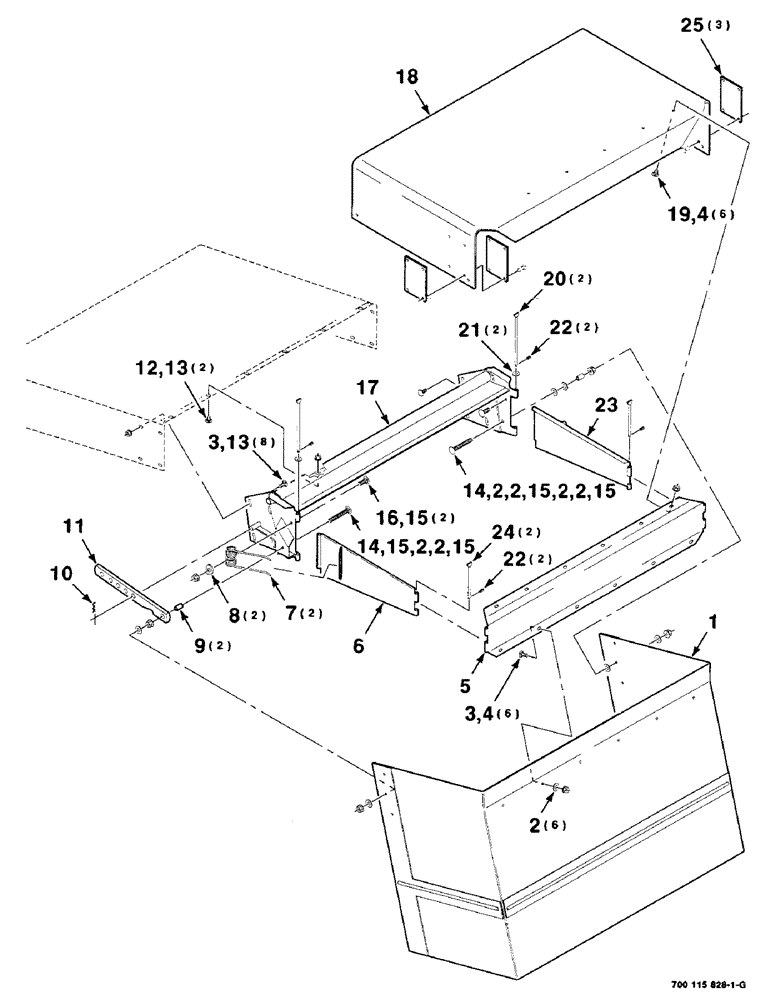

Запчасти Case IH 8610 (7-18) - CHUTE DEFLECTOR ASSEMBLY (70) - EJECTION

1

700708042

DEFLECTOR

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

3

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

14шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

12шт.

5

700117605

SUPPORT

1шт.

6

700117603

HINGE

WA - front

1шт.

7

700707983

SPRING

- chute

2шт.

8

261024

CLIP

2шт.

9

441980

SPACER

2шт.

10

S120261

PIN

.148 WIRE HAIR PIN COTTER

1шт.

11

700117599

STRAP

1шт.

12

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

2шт.

13

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

10шт.

14

700708803

BOLT

3/8-16 X 2-3/4 FTRHSNB

2шт.

15

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

17

700117581

PIVOT

WA

1шт.

18

700117608

APRON

- belting

1шт.

19

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

6шт.

20

700117542

PIN

- hinge

2шт.

21

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

22

20948R1

PIN,1/8" x 5/8", Coiled

4шт.

23

700117600

HINGE

WA - rear

1шт.

24

700117541

PIN

- hinge

2шт.

25

700118615

PLATE

- decal

3шт.
