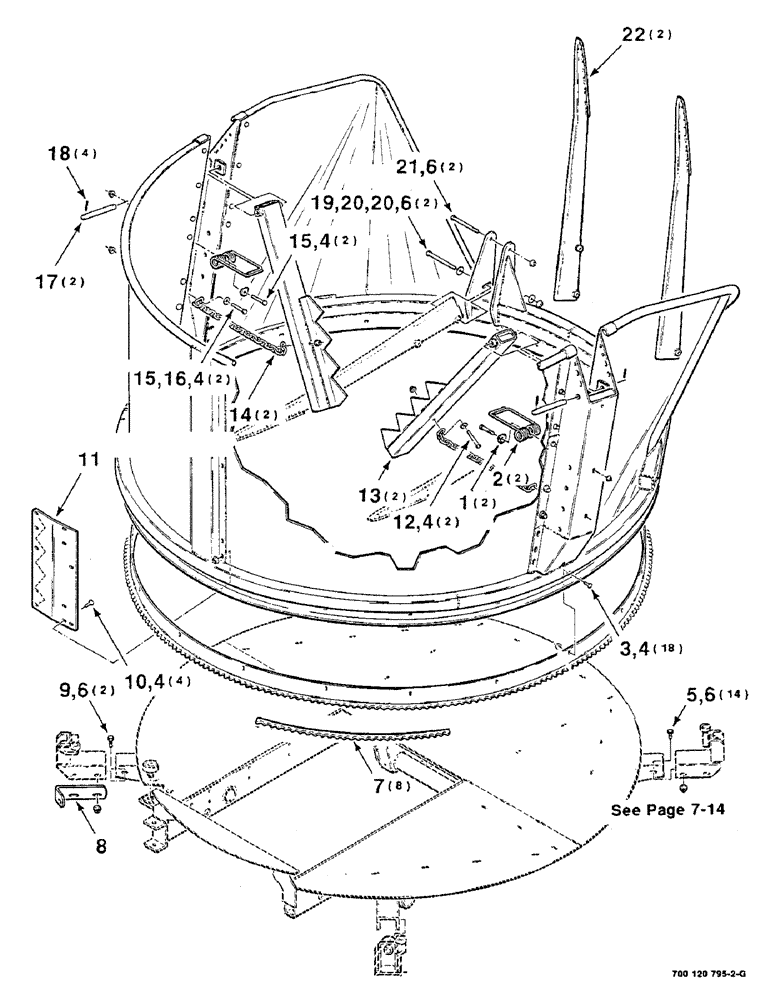

Запчасти Case IH 8610 (7-12) - CONTAINER ASSEMBLY, SERIAL NUMBER CFH0036502 AND LATER (64) - CHOPPING

1

261024

CLIP

2шт.

2

700710596

SPRING

- lift

2шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

18шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

28шт.

5

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

14шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

20шт.

7

700124866

SEGMENT

SPROCKET (Segment replacement of 28 teeth)

8шт.

8

700115834

STRAP

- adjustment

1шт.

9

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

2шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

11

700117319

BLOCK DRIVER

DRIVER - fixed

1шт.

12

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

2шт.

13

700122797

ARM

- driver, bale

2шт.

14

299438

CHAIN (AG)

CHAIN

2шт.

15

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

17

700117631

PIN

2шт.

18

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

4шт.

19

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1/2-13 X 6 C

2шт.

20

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

21

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

.5 X 5.5 UNC GR5 YZD

2шт.

22

700118643

TINE

2шт.
